84

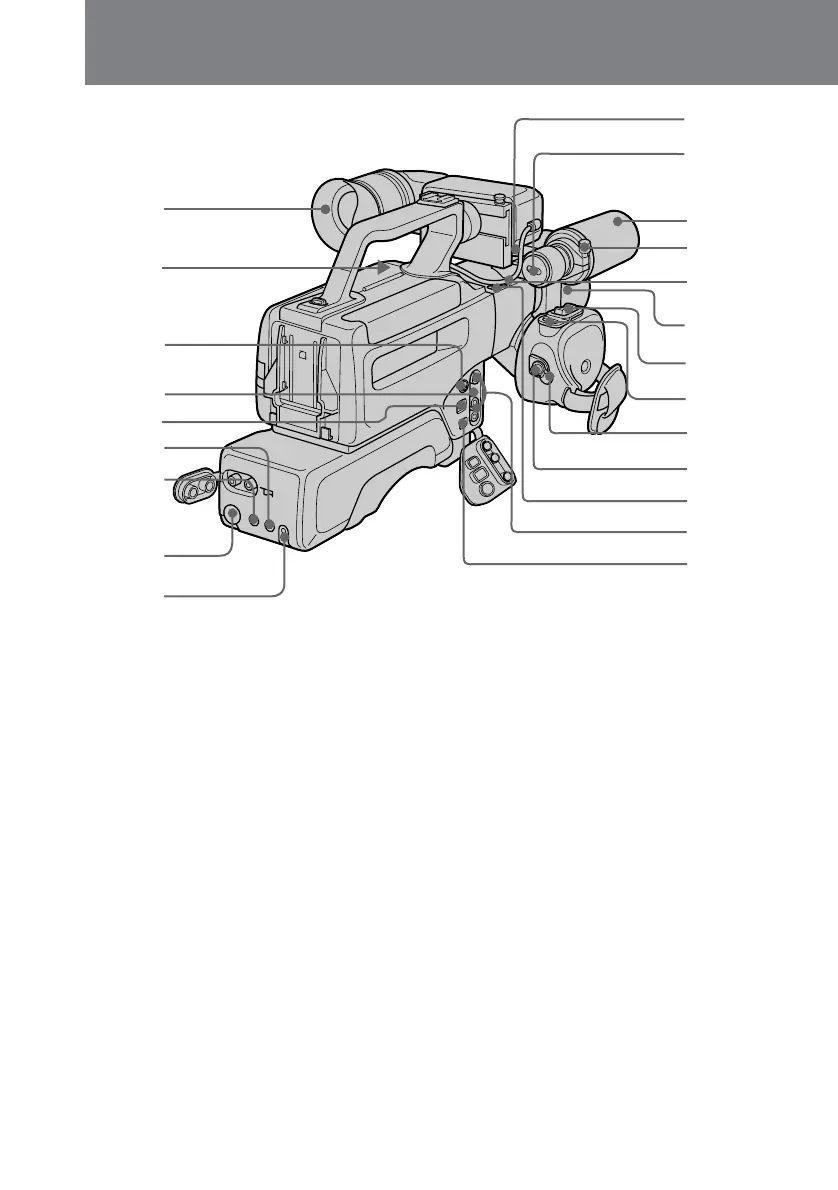

Identifying the parts
#§
$∞
$º
#¶
#ª
#•
$¡
$™
$£
$¢
$§
$¶
%£
%¢
%¶
%∞
%§
$•
$ª
%º
%¡
%™
#§ Eyecup
#¶ VIEW FINDER jack (p. 6)
#• S VIDEO OUT jack (p. 20)
#ª RFU DC OUT jack (p. 21)
$º DV IN/OUT jack (p. 62)
$¡ lLANC jack
l stands for Local Application Control Bus
System. The l control jack is used for
controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the jack
indicated as CONTROL L or REMOTE.
$™ 2 (headphones) jack (p. 14)
$£ MONITOR LEVEL dial (p. 14)
$¢ Tally lamp/Rear Remote Commander
sensor (p. 13, 90)
$∞ MIC (PLUG IN POWER) jack (p. 14)
Connect an external microphone (not
supplied). This jack also accepts a “plug-in-
power” microphone.
$§ DIRECTION SELECT switch (p. 14)
$¶ Built-in microphone (p. 53)
$• Microphone wind screen screw
Loosen the screw to remove wind screen.
$ª MIC switch (p. 54)
%º Lens hood screw
%¡ Power zoom button (p. 15)
%™ PHOTO button (p. 33)
%£ STANDBY (LOCK/STANDBY/PHOTO
STANDBY) switch (p. 12)
%¢ START/STOP button (p. 12)
%∞ BUILT-IN MIC switch (p. 53)
%§ AUDIO OUT/VIDEO OUT jacks (p. 20)
%¶ DC IN jack (p. 24)
