3
DR-BT21G
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

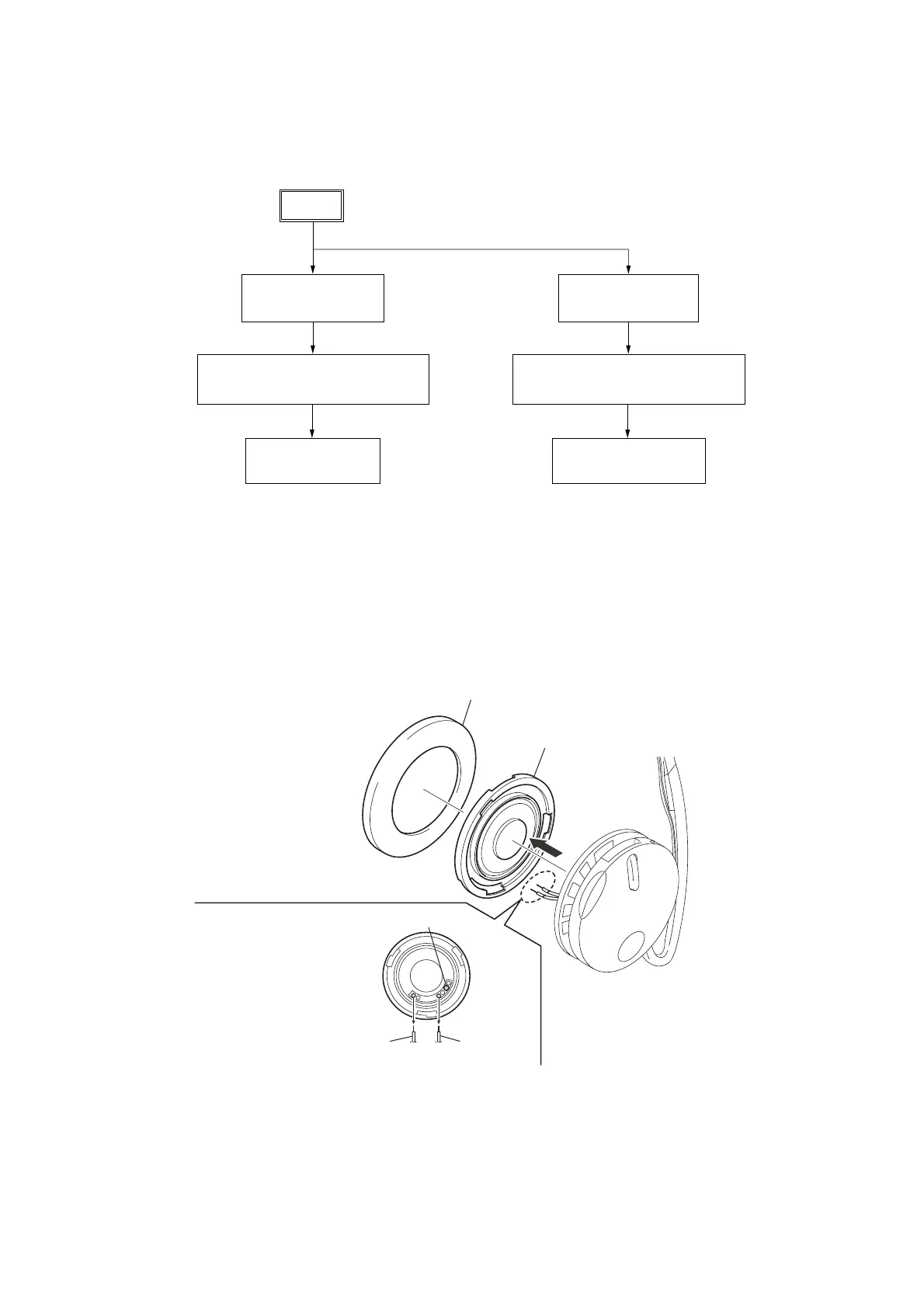

2-1. DISASSEMBLY FLOW
2-2. DRIVER (R-CH)
2-2. DRIVER (R-CH)
(Page 3)
2-3. HOUSING UPPER (R) SUB ASSY
(Page 4)
2-4. MAIN BOARD
(Page 4)
2-5. DRIVER (L-CH)
(Page 5)
2-6. HOUSING UPPER (L) SUB ASSY
(Page 5)
2-7. CHARGER BOARD
(Page 6)
SET
1
ear pad
4
driver sub assy
3
Remove the solder at 2 places.
2
RED
Marking (+ side)
Note : Plus terminal is marking
with felt tip pen.
(The position uncertainty)
BLK
Note: Follow the disassembly procedure in the numerical order given.
To Next Page
