5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H7/H9_L2
DISASSEMBLY
DISASSEMBLY
HARDWARE LIST
HARDWARE LIST

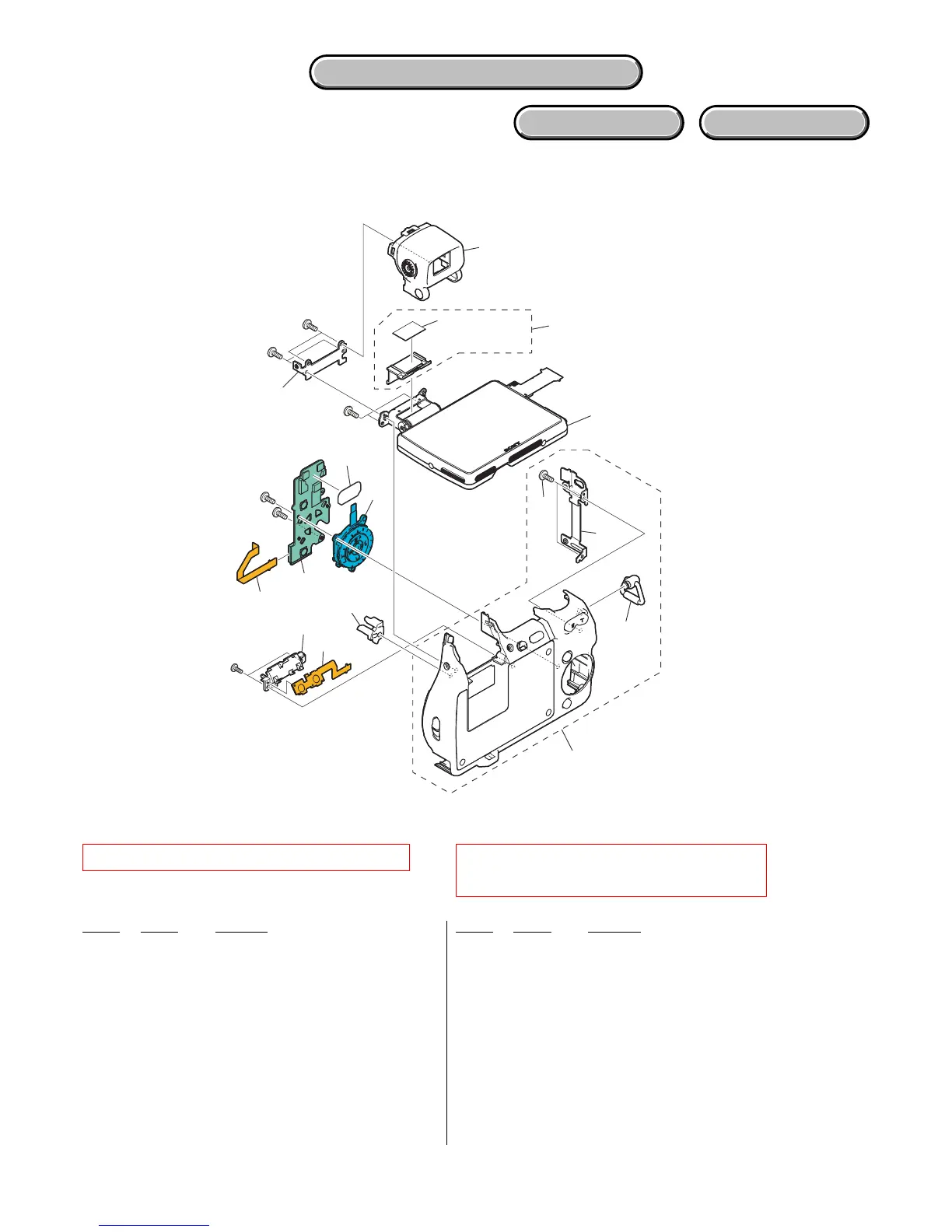

5-1-7. CABINET (REAR) SECTION : DSC-H9
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
LCD Section
(See page 5-9.)
#10
#10
#10
#12
#14
ns
301
302
#75
304
305
306
307
308
309
310
312
313
303
#12
311
(4.5mm x 12mm)
301 X-2177-451-1 CABINET (REAR) ASSY (450) (SILVER) (H9)
301 X-2177-452-1 CABINET (REAR) ASSY (450B) (BLACK) (H9)
302 3-106-615-01 BRACKET (350), STRAP
303 CAUTION SHEET, ADHESIVE
304 1-871-937-11 PY-002 FLEXIBLE BOARD
305 3-106-737-01 RETAINER, FL
306 3-106-742-01 ARM (UPPER), NS (H9)
307 1-872-388-11 SW-504 FLEXIBLE BOARD
308 A-1251-456-A SW-499 BOARD, COMPLETE (H9)
309 3-106-738-01 SHEET, MUFFLE
310 1-480-173-11 SWITCH BLOCK, CONTROL (SW60350)
(SILVER) (H9)
310 1-480-173-21 SWITCH BLOCK, CONTROL (SW60350)
(BLACK) (H9)
311 X-2177-447-1 EYE CUP ASSY (450) (SILVER) (H9)
311 X-2177-448-1 EYE CUP ASSY (450B) (BLACK) (H9)
* 312 3-106-741-01 SHEET METAL (450), DRIVING (H9)
313 X-2178-450-1 BLIND ASSY (B), CABINET (REAR) (BLACK) (H9)
313 X-2178-452-1 BLIND ASSY, CABINET (REAR) (SILVER) (H9)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#75 2-666-551-01 SCREW, TAPPING, P2 (Silver)
CAUTION:303番は、接着紙(2-649-300-01)を切って使用。
CAUTION:
For the part of 303, cut SHEET, ADHESIVE(2-649-300-01)
into the desired length and use it.
