Sony DSC-H7 - EXPLODED VIEWS OF CAMERA SECTIONS

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H7/H9_L2
DISASSEMBLY
DISASSEMBLY
HARDWARE LIST
HARDWARE LIST

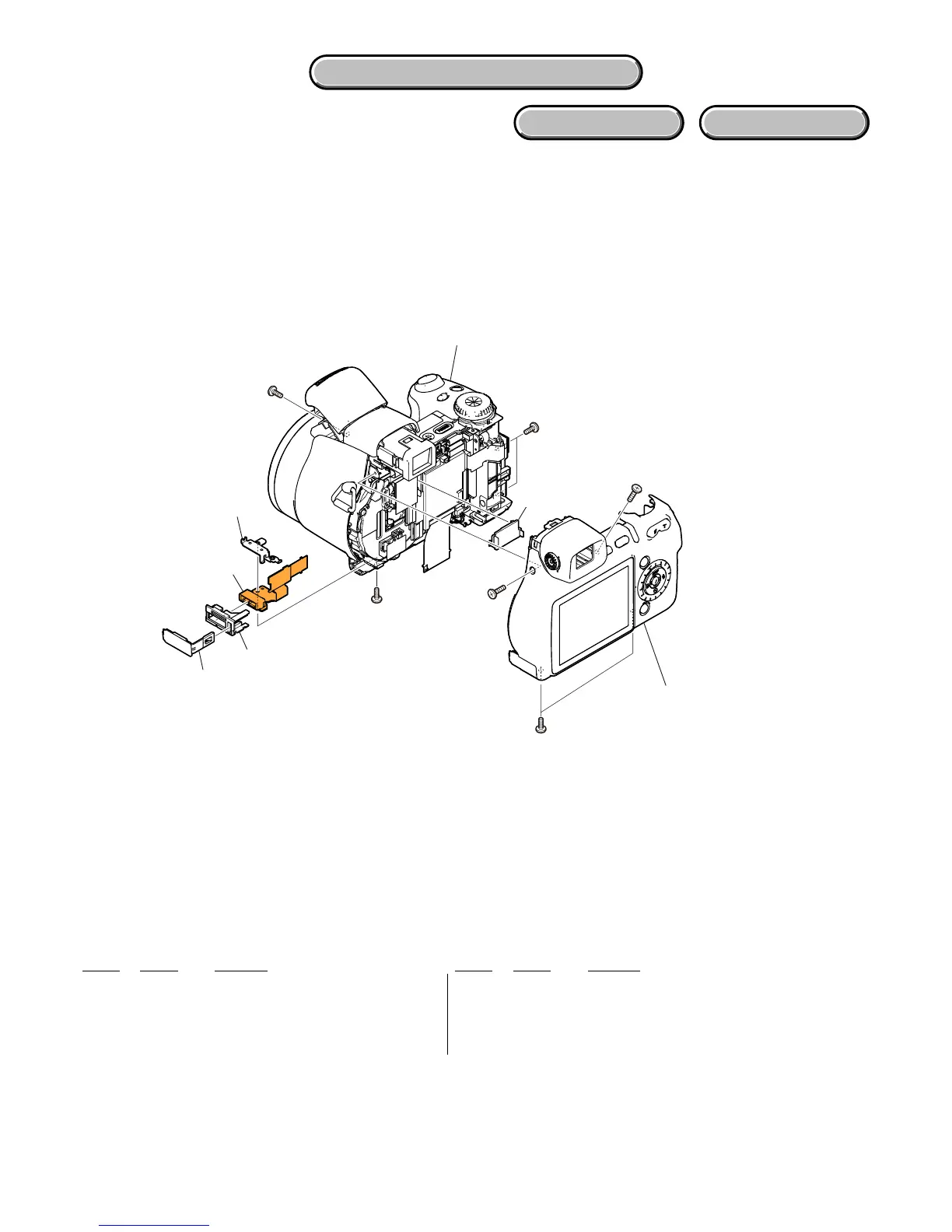

5-1-1. OVERALL SECTION : DSC-H7
Ref. No. Part No. Description Ref. No. Part No. Description
5-1. EXPLODED VIEWS
1 3-106-776-01 LID, JACK (SILVER)
1 3-106-776-11 LID, JACK (BLACK)
* 2 3-106-777-01 HOLDER, MULTI (SILVER)
* 2 3-106-777-11 HOLDER, MULTI (BLACK)
3 A-1251-450-A JK-338 BOARD, COMPLETE
* 4 3-106-778-01 PLATE, MULTI FIXED
* 5 3-106-780-01 HOLDER, FPC (H7)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
Cabinet (Front) Section-1
(See page 5-4.)
Cabinet (Rear) Sectio
n
(See page 5-7.)
#10
#10
#10
#10
#12
#10
1
2
3
4
5
