Sony DSC-H7 - Page 56

5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H7/H9_L2
DISASSEMBLY
DISASSEMBLY
HARDWARE LIST
HARDWARE LIST

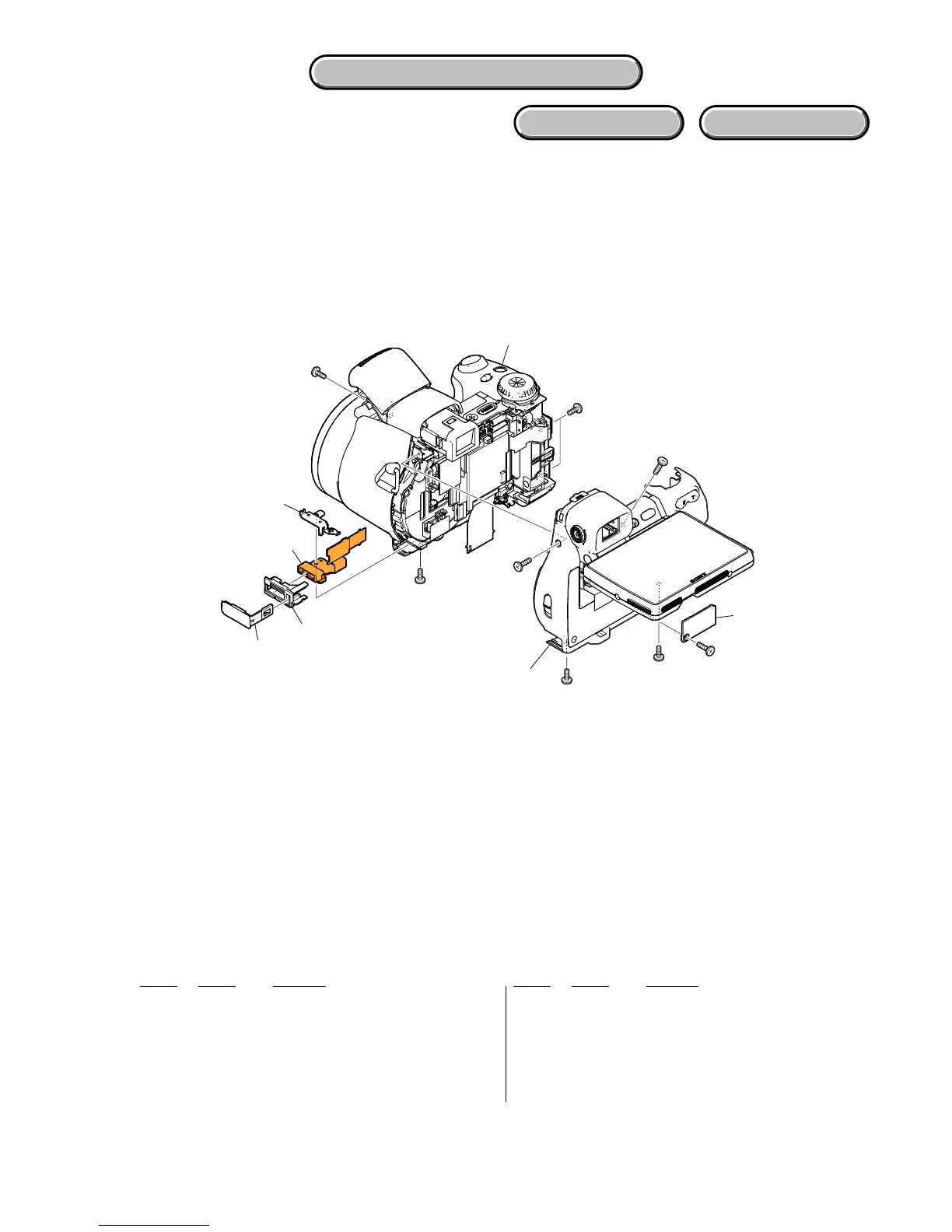

5-1-2. OVERALL SECTION : DSC-H9
Ref. No. Part No. Description Ref. No. Part No. Description
51 3-106-776-01 LID, JACK (SILVER)
51 3-106-776-11 LID, JACK (BLACK)
* 52 3-106-777-01 HOLDER, MULTI (SILVER)
* 52 3-106-777-11 HOLDER, MULTI (BLACK)
53 A-1251-450-A JK-338 BOARD, COMPLETE
* 54 3-106-778-01 PLATE, MULTI FIXED
* 55 3-106-782-01 LID, SY BLIND (SILVER)
* 55 3-106-782-11 LID, SY BLIND (BLACK)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
Cabinet (Front) Section-1
(See page 5-4.)
Cabinet (Rear) Section
(See page 5-8.)
#10
#10
#10
#10
#10
#10
#10
#12
51
52
53
54
55
