5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H7/H9_L2
DISASSEMBLY
DISASSEMBLY
HARDWARE LIST
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description

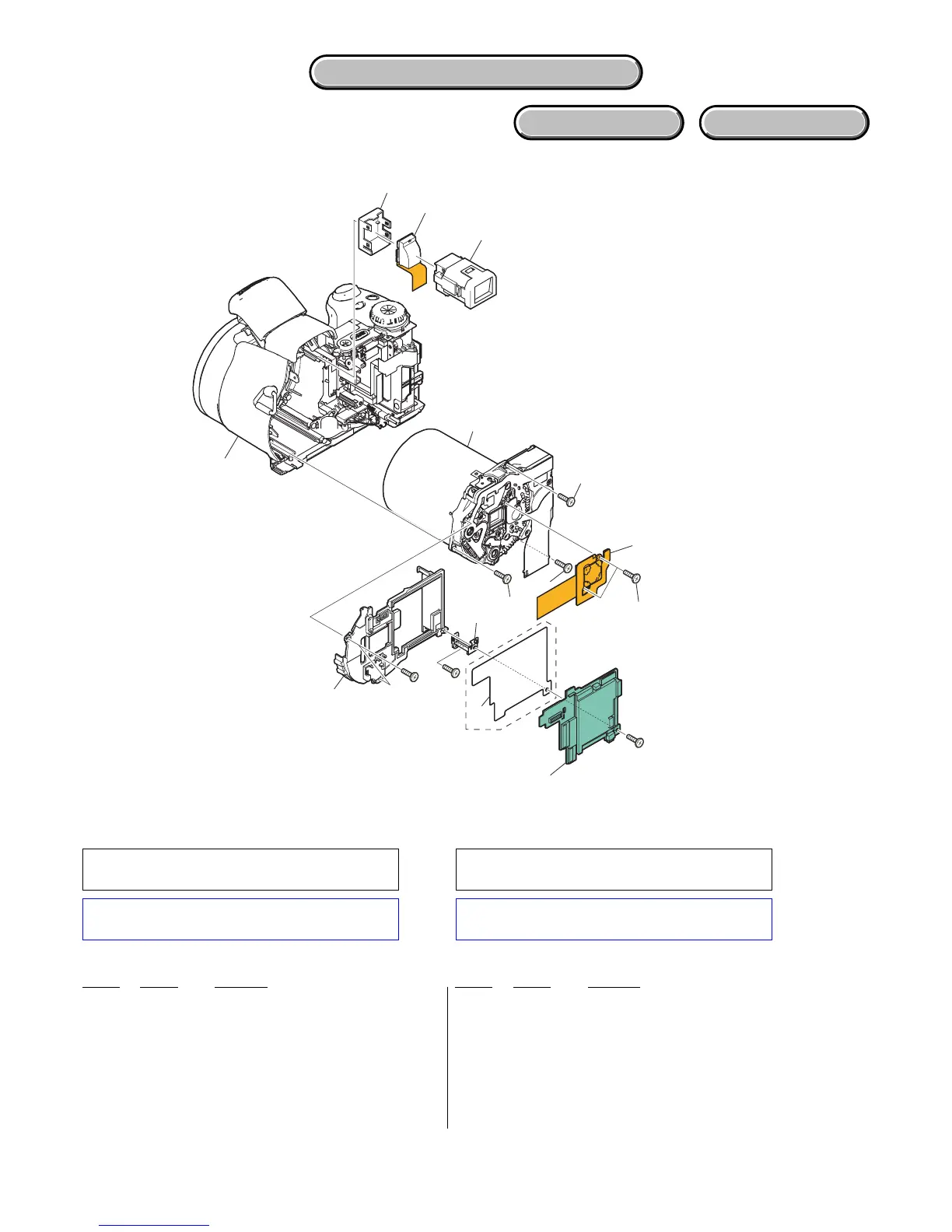

5-1-3. CABINET (FROMT) SECTION-1
101 A-1256-807-A SY-177 BOARD, COMPLETE (SERVICE) (H7)
101 A-1256-808-A SY-177 BOARD, COMPLETE (SERVICE) (H9)
* 102 3-211-271-01 SHEET, SY RADIATION, (H9)
* 103 3-106-773-01 PLATE, SY GROUND
* 104 3-106-772-01 FRAME, SY
* 105 3-106-681-01 RETAINER, MODULE
106 A-1251-208-A CCD BLOCK ASSY
107 X-2177-453-1 VF ASSY
108 A-1268-104-A LENS BLOCK ASSY (SERVICE USE)
LCD903 1-802-033-12 LCD MODULE
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#73 3-086-156-61 SCREW B1.2 (Black)
#74 2-666-551-31 SCREW, TAPPING, P2 (Silver)
#12
DSC-H9
#12
#12
LCD903
Cabinet (Front) Section-2
(See page 5-5.)
101
102
103
104
#73
106 (including CD-703
flexible board and
CCD imager (IC003)
)
(Note 1, 2)
#74
#74
#74
108
107
105
Note 1: CCD block assembly is including CD-703 flexible
completed board.
Note 2: Be sure to read “Precuations for Replacement of
Imager” on page 4-2.
Note2: イメージャ交換は4-2ページのPrecautionsfor
ReplacementofImagerを必ずお読みください。
Note1: CCD部組はマウント済CD-703フレキシブル基板
を含みます。
