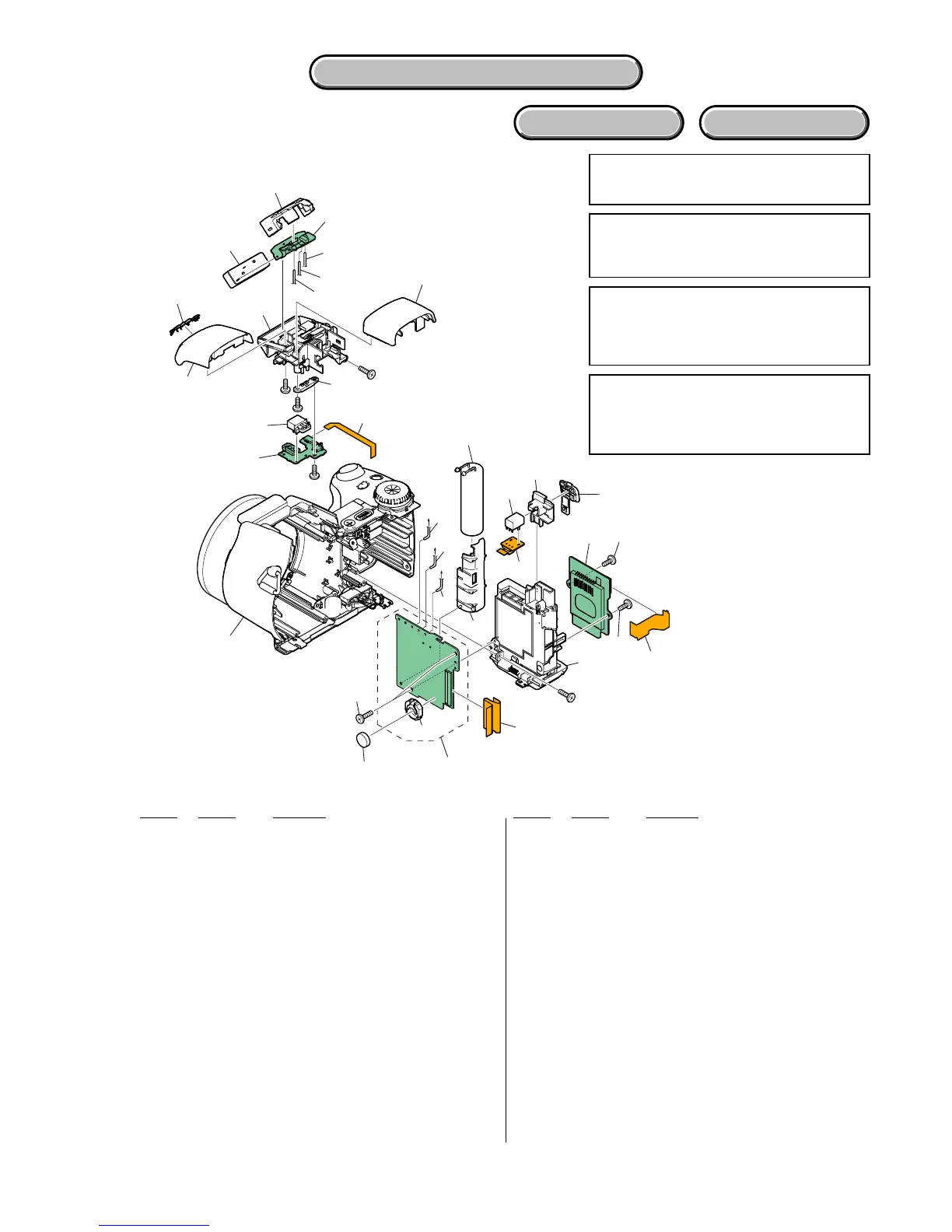

5-1-4. CABINET (FROMT) SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
151 1-871-952-11 DD-273 FLEXIBLE BOARD
152 A-1251-444-A DD-272 BOARD, COMPLETE (H7)
152 A-1251-454-A DD-272 BOARD, COMPLETE (H9)
154 1-833-691-11 CABLE, FLEXIBLE FLAT (PL-002)
155 A-1251-447-A PL-046 BOARD, COMPLETE (H7)
155 A-1251-457-A PL-047 BOARD, COMPLETE (H9)
* 156 3-106-689-01 RETAINER, SOLENOID
157 X-2177-454-1 BASE ASSY, ST
158 3-106-691-01 ST COVER (SILVER)
158 3-106-691-11 ST COVER (BLACK)
159 2-673-341-01 EMBLEM (320), ST (SILVER)
159 2-673-341-11 EMBLEM (320), ST (BLACK)
161 3-106-688-01 COVER, FL
162 A-1251-449-A ST-166 BOARD, COMPLETE
163 1-965-158-11 HARNESS (HN-042) (PINK)
164 1-965-159-11 HARNESS (HN-043) (WHITE)
165 1-965-160-11 HARNESS (HN-044) (BLUE)
166 3-106-774-01 CABINET (UPPER) (SILVER) (H7)
166 3-106-774-11 CABINET (UPPER) (SILVER) (H9)
166 3-106-774-21 CABINET (UPPER) (BLACK) (H9)
166 3-106-774-31 CABINET (UPPER) (BLACK) (H7)
167 3-106-650-01 HOLDER, CAPACITOR
168 1-871-941-11 DC-107 FLEXIBLE BOARD
169 3-106-649-01 HOLDER, DC (SILVER)
169 3-106-649-11 HOLDER, DC (BLACK)
170 3-106-779-01 LID, DC (SILVER)
170 3-106-779-11 LID, DC (BLACK)
171 A-1251-448-A MS-364 BOARD, COMPLETE (H7)
171 A-1251-458-A MS-366 BOARD, COMPLETE (H9)
172 1-871-944-11 MS-365 FLEXIBLE BOARD
173 X-2177-455-1 HOLDER ASSY, BATTERY (SILVER)
173 X-2177-456-1 HOLDER ASSY, BATTERY (BLACK)
0 BH101 1-756-615-31 HOLDER, BATTERY
0 BT001 1-756-134-12 BATTERY, STRAGE, LITHIUM ION
0 C205 1-114-341-11 CAP, ALUMINUM ELECT 180MF
0 FL901 1-480-062-11 FLASH UNIT
0 J001 1-817-331-11 DC JACK 5P (DC IN)
0 RY201 1-455-038-11 SOLENOID, PLUNGER
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#75 2-666-551-01 SCREW, TAPPING, P2 (Silver)
Cabinet (Front) Section-3
(See page 5-6.)
BH101
BT001
#12
J001
C205
#12
RY201
FL901
a
b
c
a
b
c
#12
#12
#12
151
152
#75
154
155
156
157
158
159
161
162
163
164
165
164
165
163
166
167
168
169
170
171
#75
#75
172
173
!
: BT001 (BATTERY, LITHIUM SECONDARY
Board on the mount position.
(See page 4-24 of LEVEL3.)
!
• Refer to page 5-1 for mark 0.
CAUTION
Danger ofexplosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は、正しく行わないと破裂する恐れがあ
ります。電池を交換する場合には必ず同じ型名の電
池又は同等品と交換してください。
Note: Replace the battery holder (BH101) together when
replacing the lithium battery (BT001) on the DD-272
board. (The battery holder removed once cannot be
used again.)
When mounting these parts, mount new battery holder
first and attach new lithium battery next.
Note: DD-272基盤のリチウム電池(BT001)を交換する場合
はバッテリホルダ(BH101)も同時に新品に交換して
下さい。（一度使用したバッテリホルダは再使用で
きません。）
部品取り付けの際は、先にバッテリホルダを取り付
けてからリチウム電池を装着して下さい。
