Sony DSC-H7 - Page 59

5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H7/H9_L2
DISASSEMBLY
DISASSEMBLY
HARDWARE LIST
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description

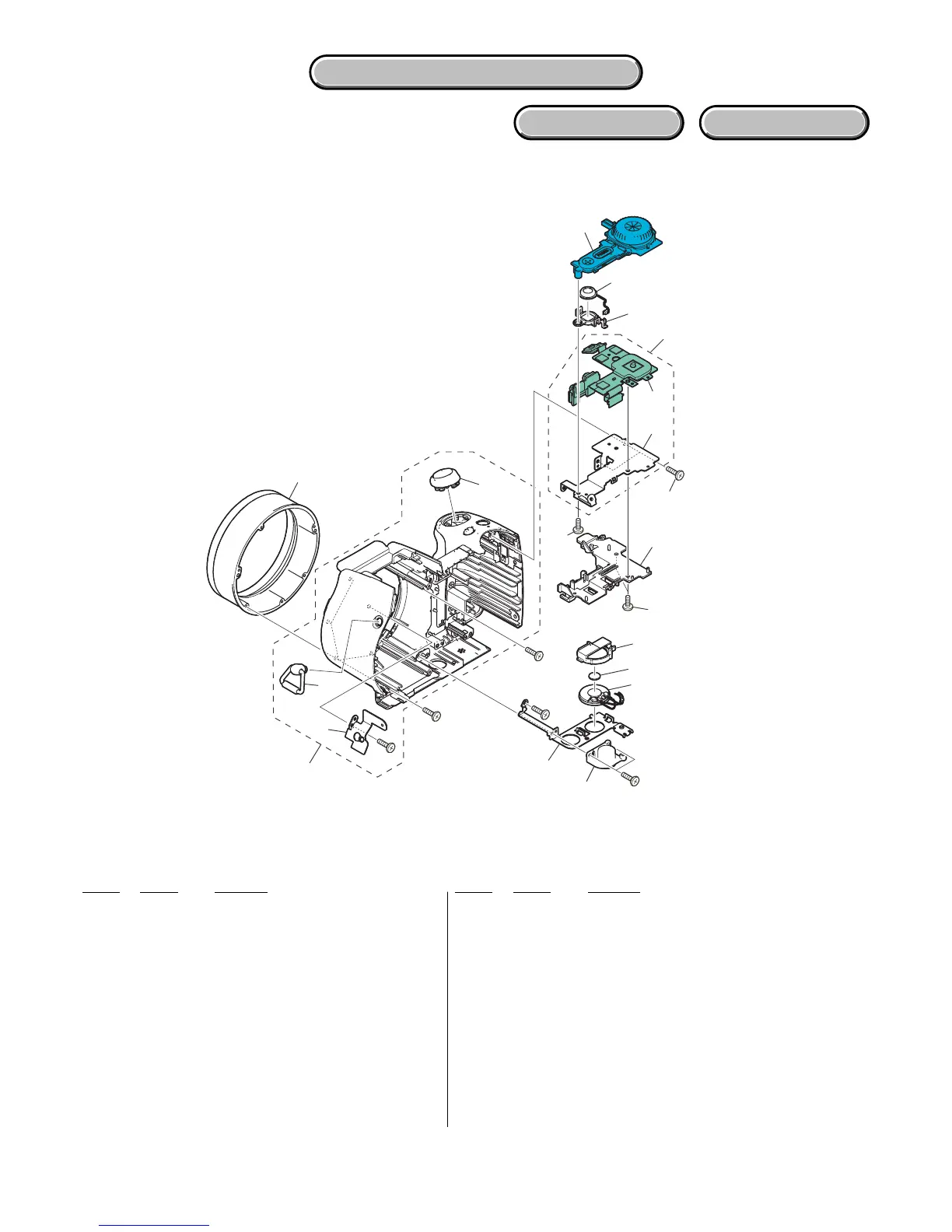

5-1-5. CABINET (FROMT) SECTION-3
ns: not supplied
201 3-106-766-01 SCREW, TRIPOD
* 202 3-106-767-01 FRAME, TRIPOD
* 203 3-106-770-01 CUSHION, SP
* 204 3-106-769-01 HOLDER, SP
205 3-106-615-01 BRACKET (350), STRAP
206 X-2177-461-1 RELEASE ASSY (SILVER)
206 X-2177-462-1 RELEASE ASSY (BLACK)
207 X-2177-463-1 CABINET (FRONT) ASSY (350) (SILVER) (H7)
207 X-2177-464-1 CABINET (FRONT) ASSY (350B) (BLACK) (H7)
207 X-2177-465-1 CABINET (FRONT) ASSY (450) (SILVER) (H9)
207 X-2177-466-1 CABINET (FRONT) ASSY (450B) (BLACK) (H9)
208 3-106-768-01 RING, LENS (SILVER)
208 3-106-768-11 RING, LENS (BLACK)
209 X-2177-457-1 DIAL ASSY, MODE (SILVER)
209 X-2177-458-1 DIAL ASSY, MODE (BLACK)
210 3-106-679-01 HOLDER, MICROPHONE
211 A-1256-815-A PW-134 BOARD, COMPLETE (SERVICE) (H7)
211 A-1256-816-A PW-134 BOARD, COMPLETE (SERVICE) (H9)
* 213 3-106-677-01 BASE, RL
MIC901 1-542-728-11 MICROPHONE
SP901 1-825-262-71 LOUD SPEAKER (1.6CM)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#75 2-666-551-01 SCREW, TAPPING, P2 (Silver)
#12
#12
#10
#10
#10
ns
ns
ns
MIC901
201
202
203
SP901
204
205
207
206
208
209
210
211
#75
#75
213
#75
