Enjoying the camera

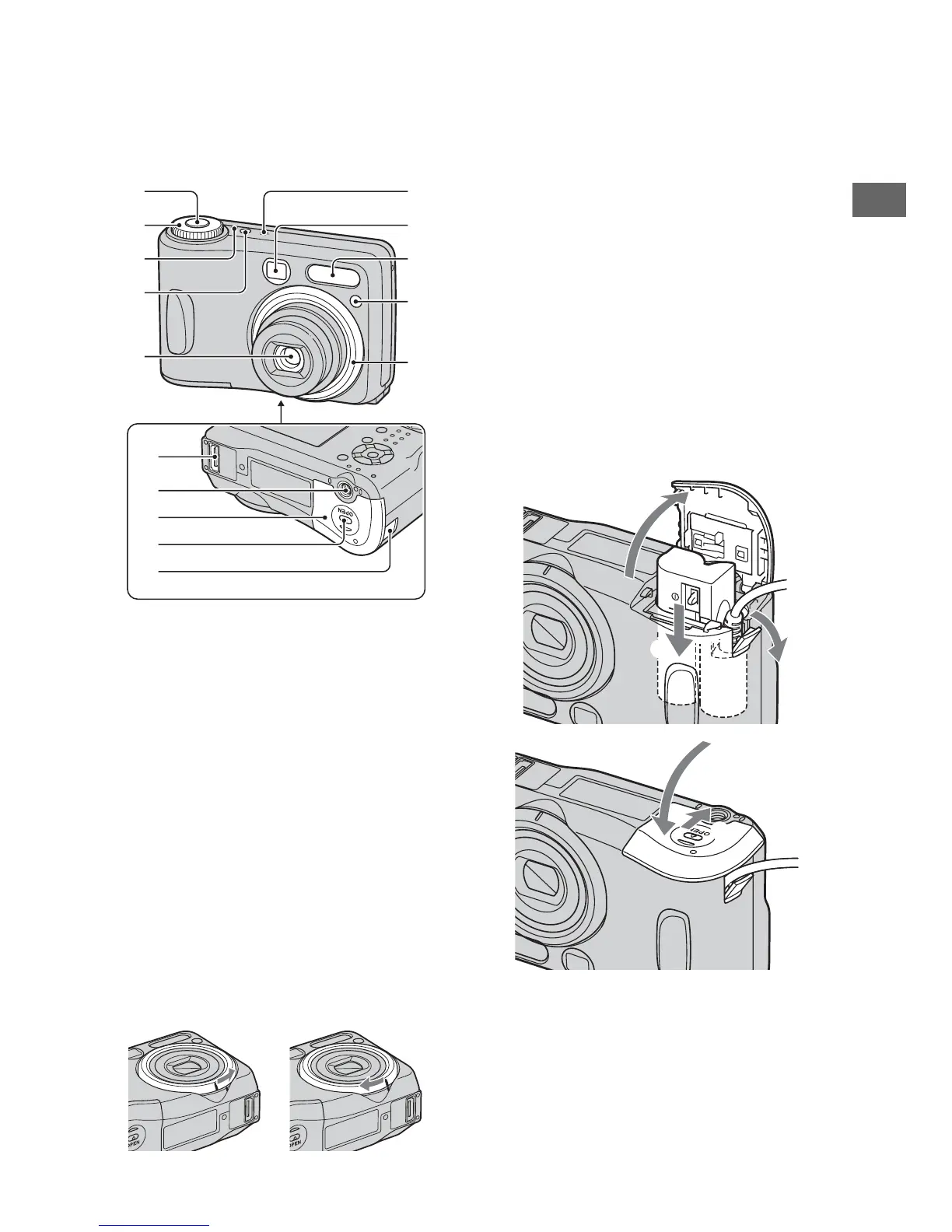

Identifying parts
See the pages in parentheses for details of
operation.
A Shutter button (
t step 5 in “Read This
First”)
B Mode dial (26)
C POWER lamp (
t step 2 in “Read This
First”)
D POWER button (
t step 2 in “Read
This First”)
E Lens
F Microphone
G Finder window
H Flash (
t step 5 in “Read This First”)
I Self-timer lamp (
t step 5 in “Read
This First”)/AF illuminator (48)
J Lens ring
K Multi connector (59, 75)
L Tripod receptacle
• Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to
firmly secure the camera to tripods having
longer screws, and may damage the camera.
M Battery/“Memory Stick” cover (t step
1 and 3 in “Read This First”)
N OPEN button (
t step 1 and 3 in “Read
This First”)
O AC Adaptor cord cover
To use the AC-LS5K AC Adaptor (not
supplied)
16
27
3
4
5
8
9
q;
qa
qs
qd
qf
qg
Removing
Attaching
4
5
1
2
3
Do not pinch the cord when you close
the cover.
