Sony DSC-S780 - REPAIR PARTS LIST; 4-1. EXPLODED VIEWS; 4-1-1. OVERALL SECTION

4. REPAIR PARTS LIST

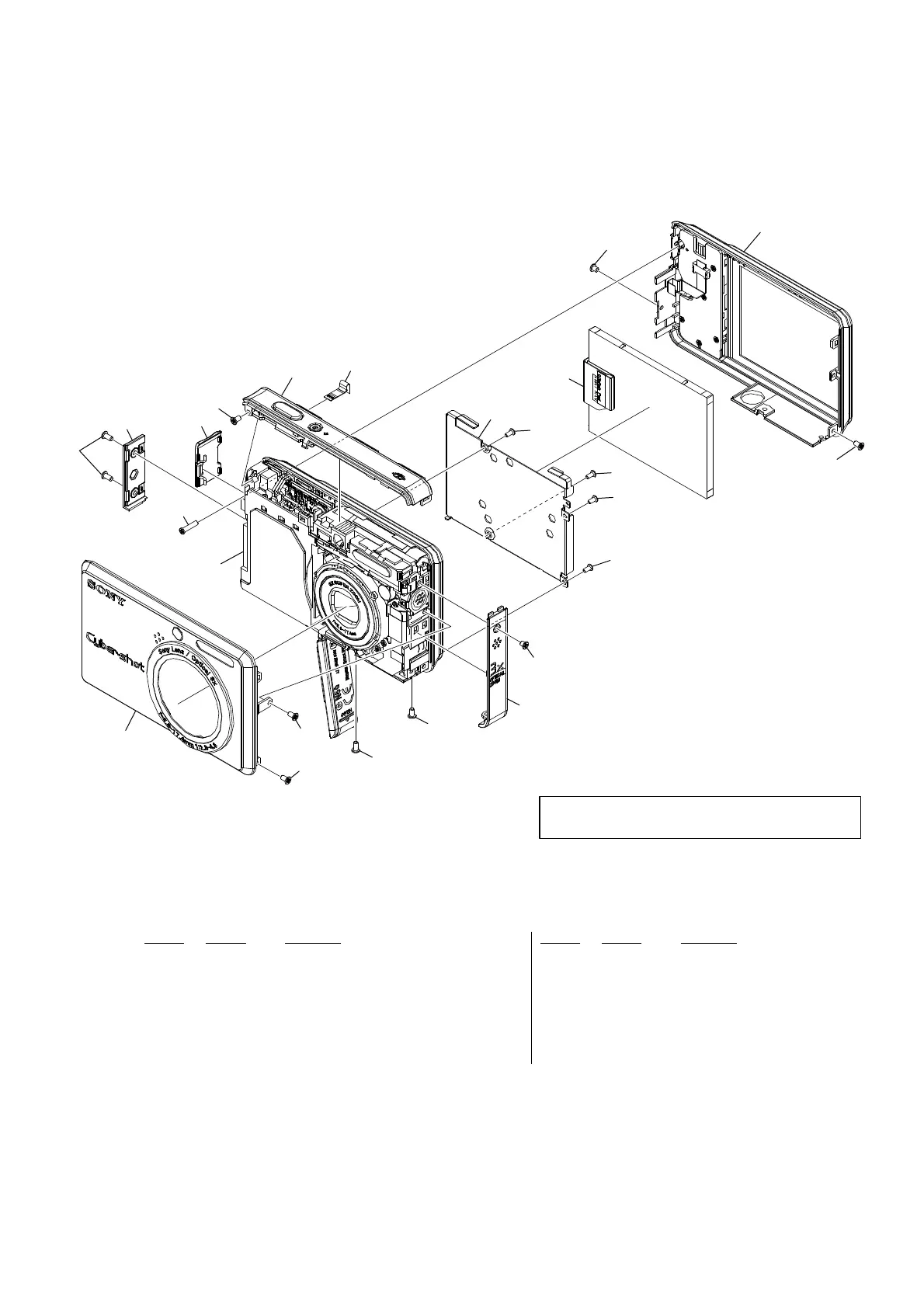

4-1. EXPLODED VIEWS
4-1-1. OVERALL SECTION
ns: not supplied
4-1
DSC-S780
Ref. No. Part No. Description Ref. No. Part No. Description
1X-2190-117-1 CABINET (FRONT) ASSY
23-295-133-01 SCREW_TP_1.7_3_A_0.4_D=3
33-295-131-01 SCREW_TP_1.7_7.5_A_0.5_D=2.5
43-295-134-01 SCREW_TP_1.7_3.5_A_0.4_D=3
53-286-713-01 MIDDLE COVER L
63-286-712-01 COVER, JACK
73-286-718-01 BLOCK, RL
8 3-286-719-01 FFC2 (RL)
9 3-286-720-01 LCD (Note)
10 3-874-572-01 SCREW_TP_1.7_2.7_A_0.4_D=3
11 3-295-132-01 SCREW_TP_1.7_2_A_0.4_D=3
12 3-286-714-01 MIDDLE COVER R
1
2
3
2
4
4
4
2
12
11
10
8
7
2
6
5
Main Frame Block
(See page 4-2)
Cabinet (Rear) Block
(See page 4-3)
9
(Note)
ns
2
2
11
2
Note : The adjustment is not required after replacing the LCD.
