Note 1 : In case of the main board or main frame assy failure,
contact your local Sony service Headquarter for the
measures.
Note 2 : The adjustment is not required after replacing the
ST block assy.
Note 3 : Refer to "Regarding Fuse and etc." for the installation
position of Q13.
ns
(Note 1)
51
55
53
54
53
Lens Block
(See page 4-4)
Q13
(Note 3)
56
F2
F1
ns
(Note 1)
52
(Note 2)
Q1

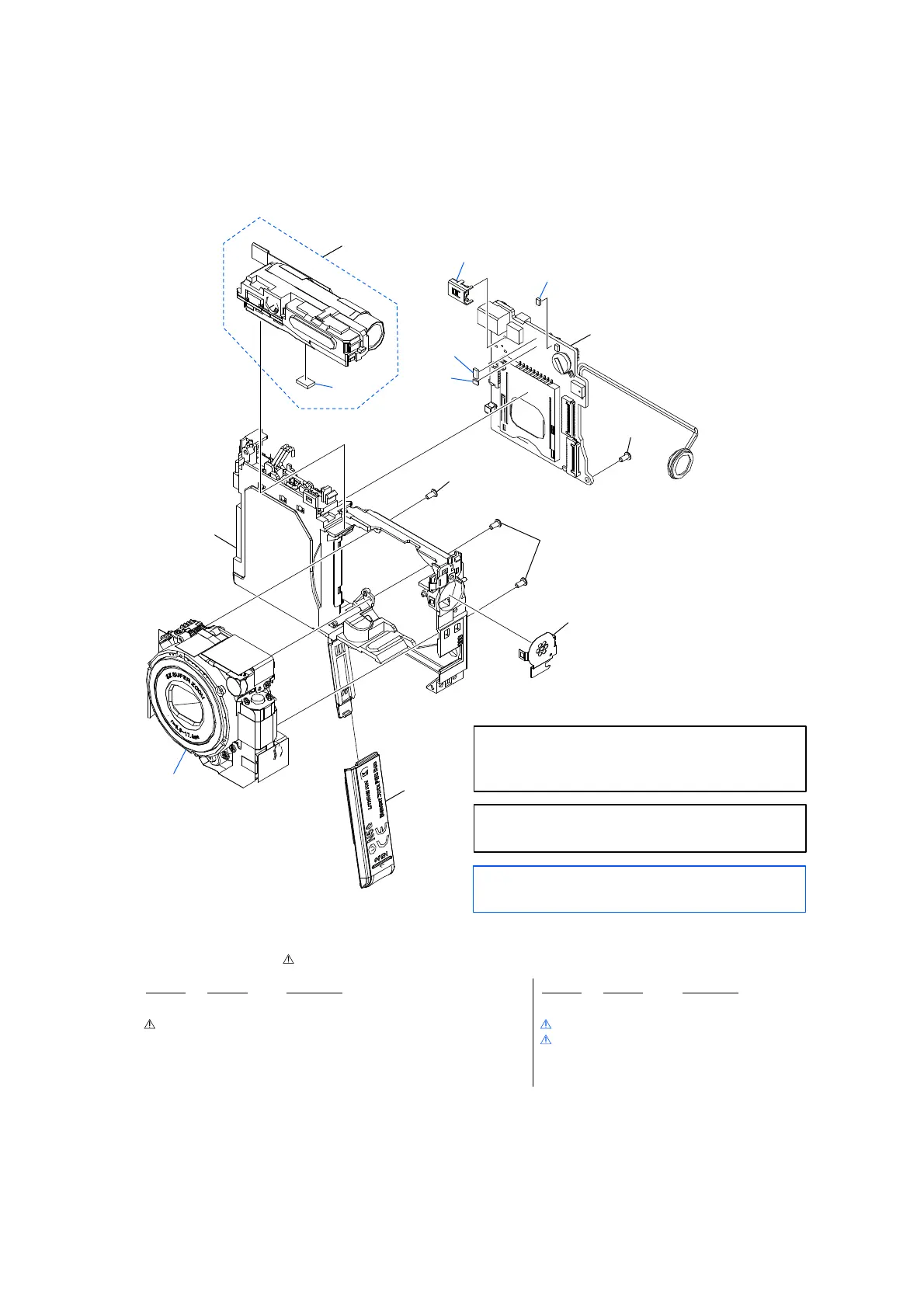

4-1-2. MAIN FRAME BLOCK
4. REPAIR PARTS LIST
ns: not supplied
4-2
DSC-S780
Ref. No. Part No. Description
51 3-286-725-01 LID, BT
52 A-1444-060-A ST BLOCK ASSY (Note 2)
53 3-295-130-01 SCREW_TP_1.4_3_A_0.3_D=2.5
54 3-295-134-01 SCREW_TP_1.7_3.5_A_0.4_D=3
55 3-874-570-01 SHEET METAL, SP
• Refer to cover for mark .
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2008.07
• Items marked “*” are not stocked since they are seldom required for
routine service. Some delay should be anticipated when or
dering these items.
Ref. No. Part No. Description
MULTI CONNECTOR (REC) 8P
F1 1-576-363-11
56 1-820-333-11
FUSE, MICRO (1005 TYPE) (1A/30V)
F2 1-576-913-11 FUSE, MICRO (1608 TYPE) (1.6A/36V)
Q1 4-107-819-01 TRANSISTOR FLASH STROBOSCOPE
Q13 4-120-071-01 TRANSISTOR DTC144WM3T5G
*
To Next Page
