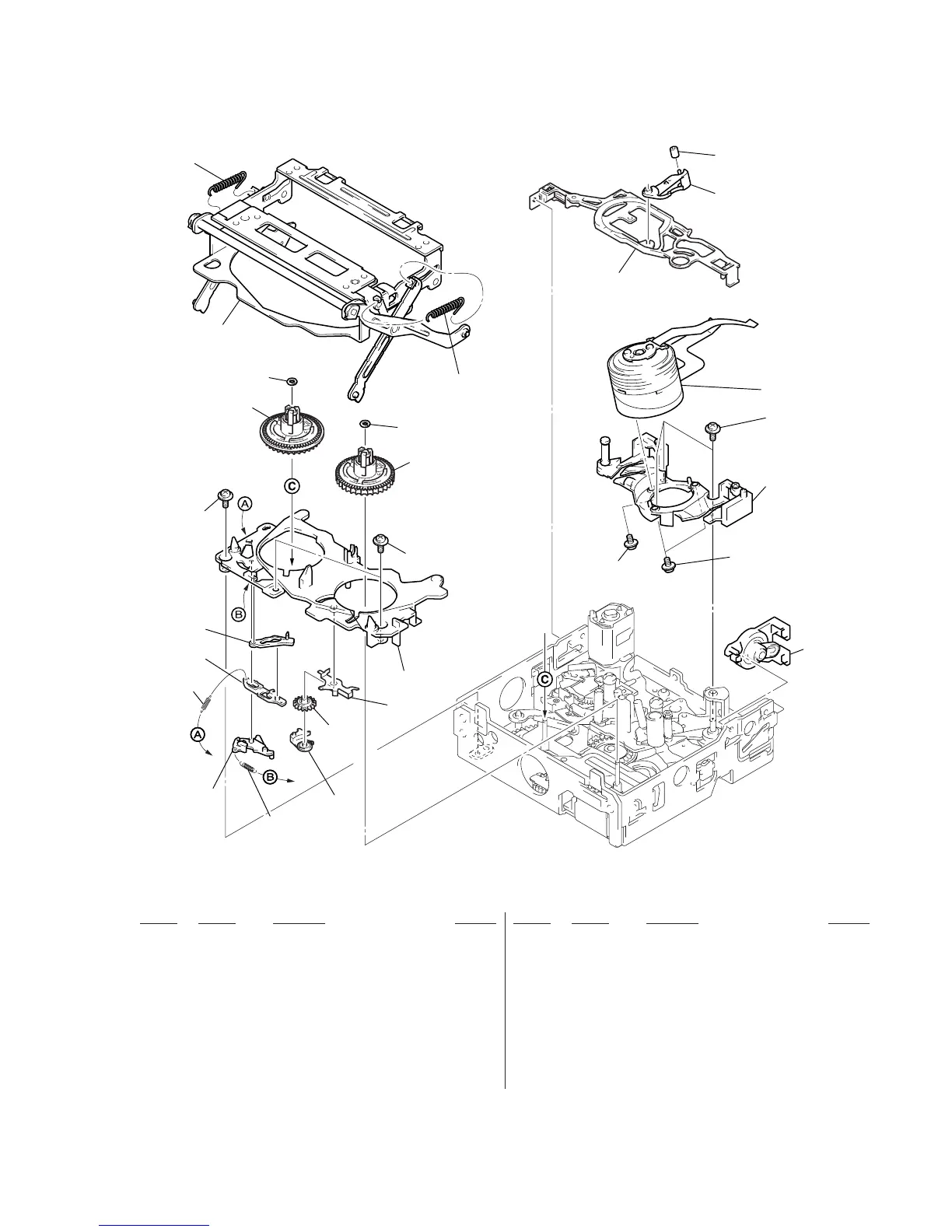

6-1-11. CASSETTE COMPARTMENT, DRUM AND REEL TABLE ASSEMBLY
701
703
704
705
702
706
701
708
709
710
710
711
712
713
713
714
714
715
716
717
719
M901
710
707
718
710
710
701 3-988-312-01 SPRING, EXTENSION
702 3-988-220-01 BRAKE (T)
703 3-988-221-01 GEAR (T), BRAKE
704 3-988-222-01 SPRING (T), BRAKE
705 3-988-215-02 BASE, CASSETTE
706 3-988-217-01 ARM (S), RESET
707 3-988-281-02 ARM, HC
708 3-988-219-01 RACK (S), BRAKE
709 3-988-218-01 BRAKE (S)
710 3-947-503-01 SCREW (M1.4)
711 X-3948-445-1 TABLE (T) ASSY, REEL
712 X-3948-444-1 TABLE (S) ASSY, REEL
713 3-989-465-01 WASHER, STOPPER
714 3-988-298-01 SPRING EXTENSION
715 X-3948-441-9 CASSETTE COMPARTMENT ASSY
716 X-3948-443-2 DAMPER ASSY
717 A-7093-612-A DRUM BASE BLOCK ASSY
718 3-988-282-01 ROLLER, HC
719 3-988-283-01 STOPPER, TAPE FALL
M901 A-4900-081-A DRUM ASSY (DEH-14B/J-RP)
