Sony DSR-PD150P Service Manual

6-12

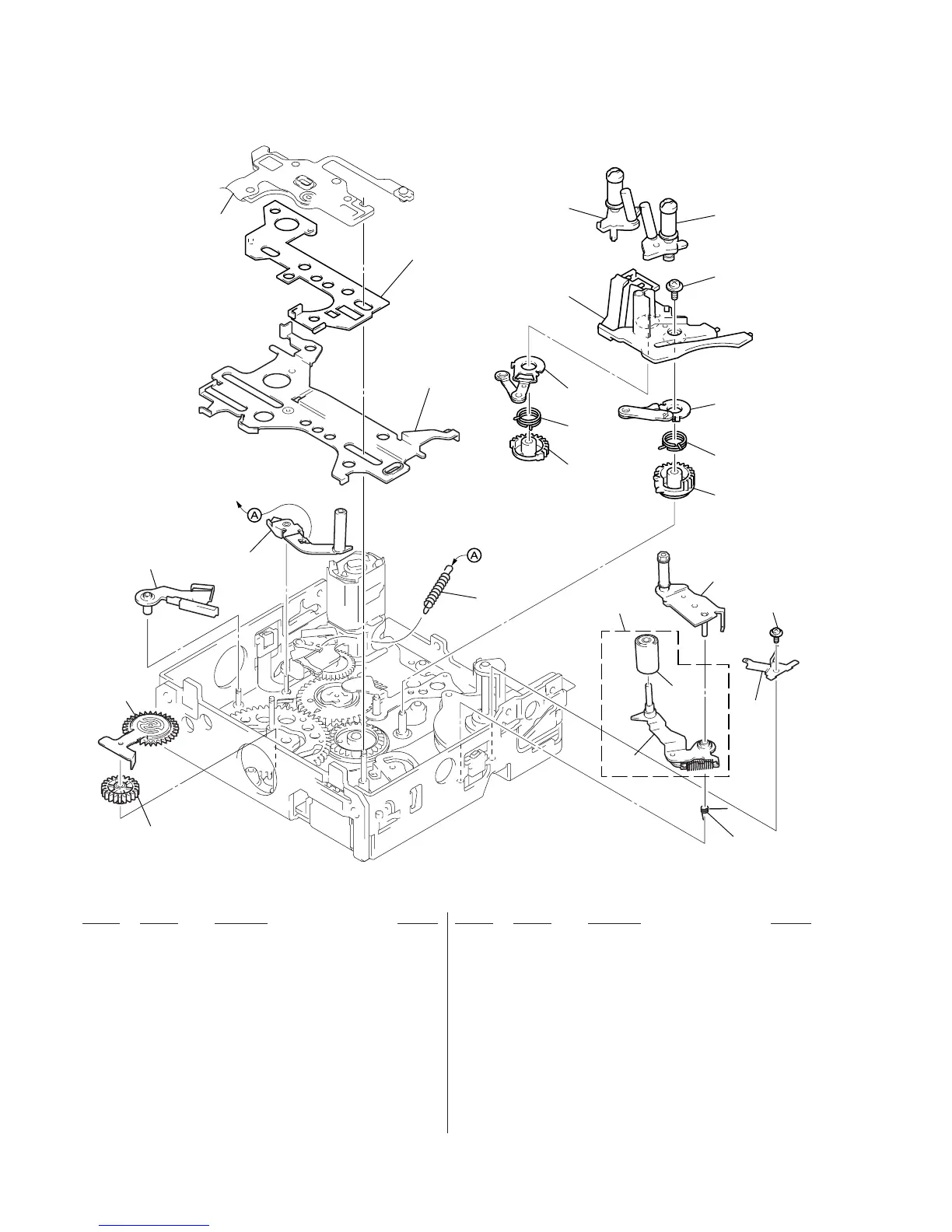

6-1-12. TAPE GUIDE, PINCH SLIDER ASSEMBLY AND BRAKE SLIDER ASSEMBLY
751
752
753
754
755
757
758
760
761
763
765
767
769
768
770
762
764
766
759
772
756
Included in Ref No. 813
on page 6-13.
771
773
not
supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
751 3-988-263-01 GEAR, RELAY
752 X-3948-442-2 GEAR ASSY, GOOSENECK
753 X-3948-435-2 PLATE ASSY, TG1 ADJUSTMENT
754 X-3948-434-1 ARM ASSY, TG1
755 X-3948-428-2 SLIDER ASSY, PINCH
756 X-3948-766-1 SLIDER ASSY, BRAKE
757 3-988-270-01 SPRING (TG1), TENSION COIL
758 3-988-233-01 SPRING (TG7LD), TORSION
759 X-3948-433-2 ARM ASSY, PINCH
760 A-7093-501-A ARM BLOCK ASSY, TG7
761 3-988-257-01 GEAR (T), GL
762 3-988-252-02 GEAR (S), GL
763 3-988-258-01 SPRING (GLT), TORSION
764 3-988-253-01 SPRING (GLS), TORSION
765 X-3948-440-1 ARM (T) ASSY, GL
766 X-3948-439-2 ARM (S) ASSY, GL
767 3-947-503-01 SCREW (M1.4)
768 3-988-242-01 RAIL, GUIDE
769 X-3948-438-3 COASTER (T) ASSY
770 X-3948-934-4 COASTER (S2) ASSY
771 3-988-690-02 SPRING, TG7 RETAINER
772 X-3748-630-2 ROLLER ASSY, (DIA.5.6) PINCH
773 3-053-083-01 SCREW
