5-2
DVP-FX921/FX921K/FX930/FX930CC/FX930WM/FX935
)

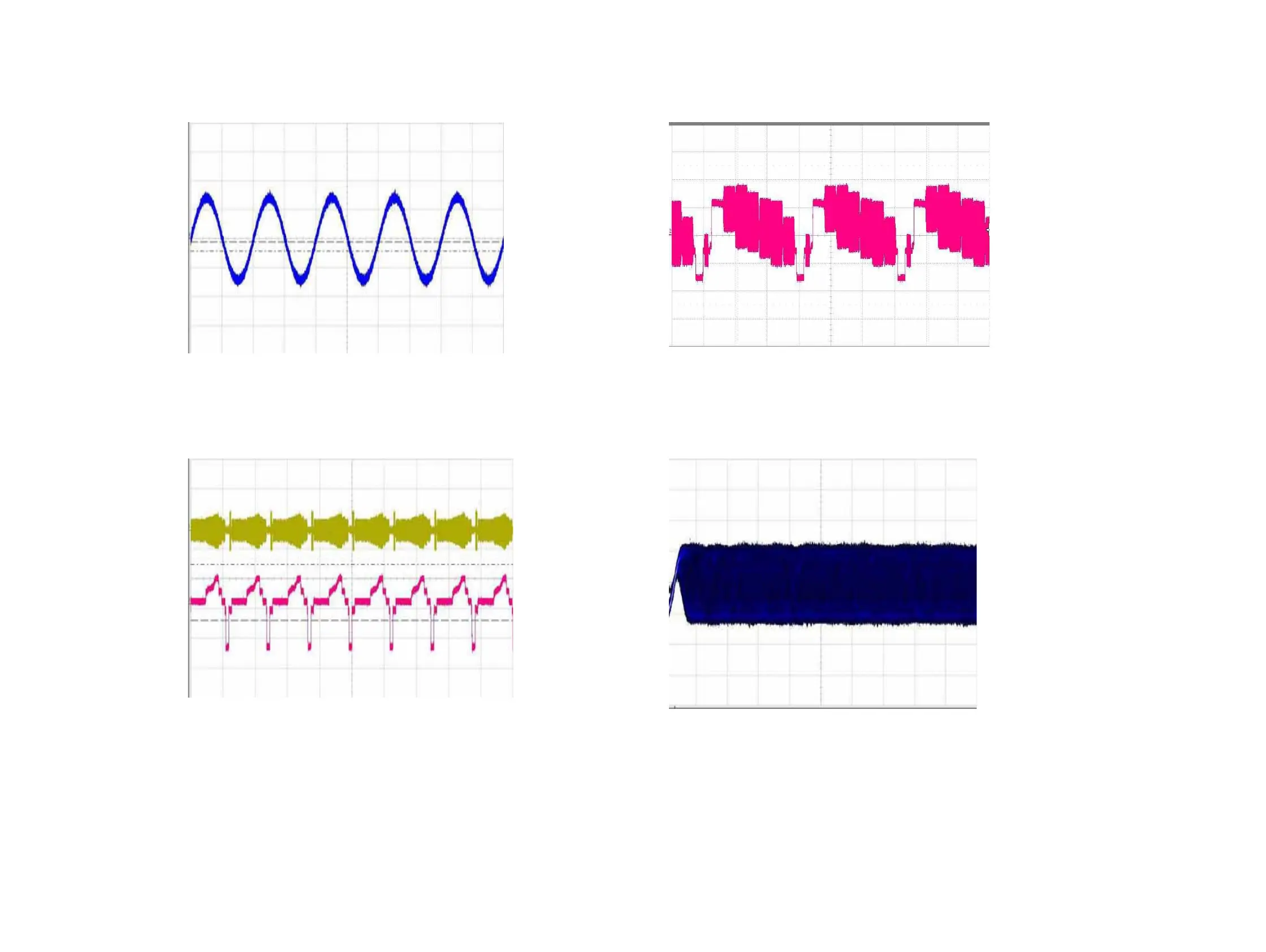

Fig 5-5
Fig 5-7
Fig 5-4
Fig 5-6
AUDIO OUT (J6 PIN2)
4. Audio output from IC (L/R)
DIN (U11 PIN6)
5. Video output waveform (CVBS)
Y (FB218)
C (FB16)
6. Video output waveform (Y/C)
DVDRFIP (U6 PIN12)
7. RF waveform
