Sony DVP-FX921 - 1 Disassembly; Disassembly Flow; Bottom Block

1-1
DVP-FX921/FX921K/FX930/FX930CC/FX930WM/FX935
SECTION 1
DISASSEMBLY
• This set can be disassembled in the order shown below.
1-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.

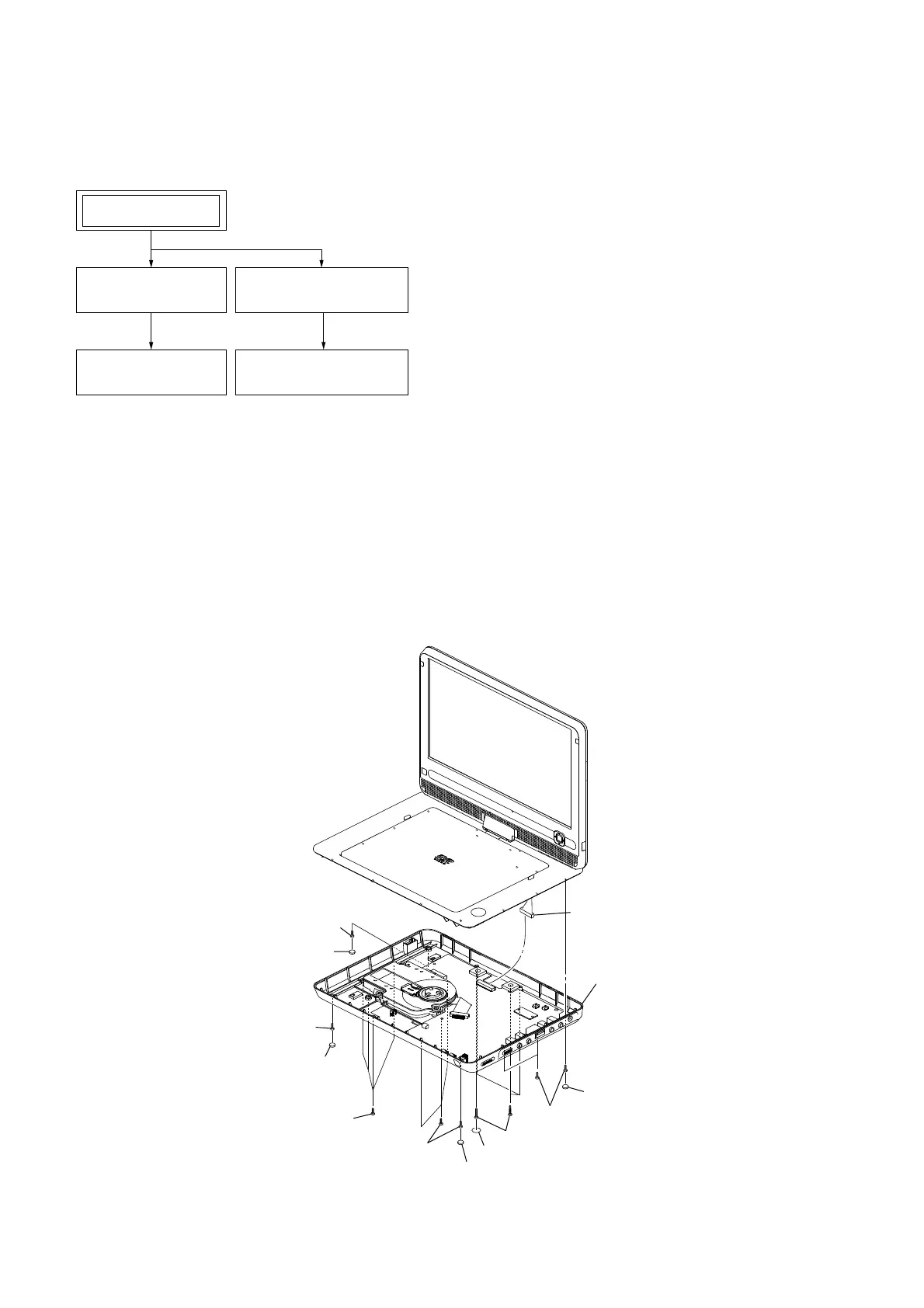

1-2. BOTTOM BLOCK
2-2. BOTTOM BLOCK
(Page 2-1)
2-2. MAIN BOARD
(Page 2-2)
2-4. MONITOR SUB ASSY
(Page 2-2)
2-5. LCD
(Page 2-3)
SET
1 foot rubber
1 foot rubber
2 three screws (TS2 × 8.5)
2 four screws (TS2 × 8.5)
2 four screws (TS2 × 8.5)
4 four screws (TS2.5 × 11)
2 screw (TS2 × 8.5)
1 foot rubber
3 open preve sheet
6 bottom block
5 LCD harness
1 foot rubber
2 screw (TS2 × 8.5)
