Sony DVP-FX921 - 9 Repair Parts List; Exploded Views; 9-1-1. Lcd Block

9-1
DVP-FX921/FX921K/FX930/FX930CC/FX930WM/FX935
SECTION 9
REPAIR PARTS LIST

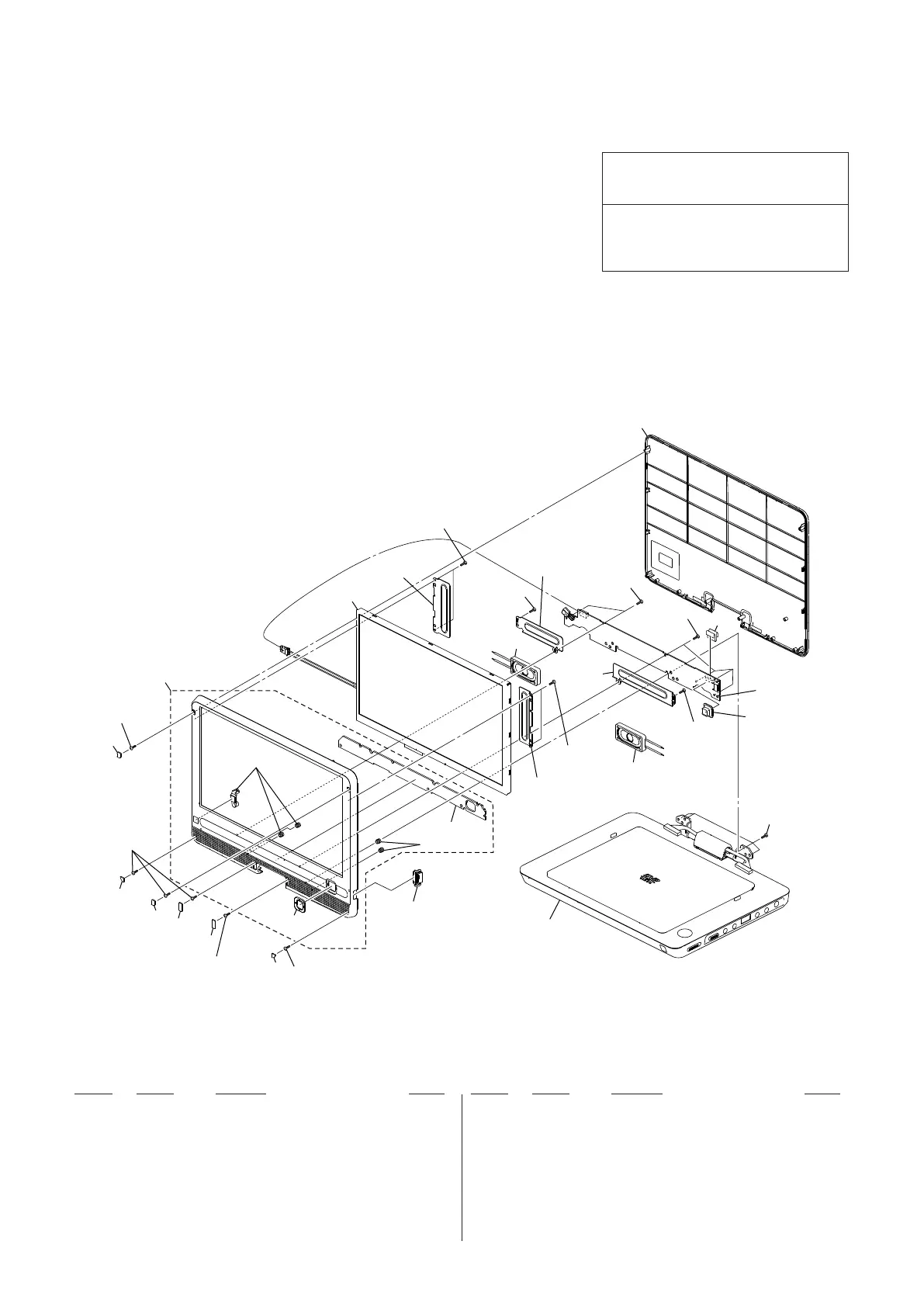

9-1. EXPLODED VIEWS
9-1-1. LCD BLOCK
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 9-885-129-40 PANEL RUBBER ARC (091-0001-757)
2 9-885-129-41 PANEL RUBBER DOW (091-0001-759)
3 9-885-129-39 PANEL RUBBER UPP (091-0001-756)
4 A-1703-818-A BEZEL COVER ASSY (A-1703-818-A)
5 9-885-129-25 LCD SCREEN (AA0900001001)
6 A-1703-823-A HOUSING COV. ASSY (030-0001-811) (BLACK)
6 A-1705-888-A HOUSING COV. ASSY (030-0002-811) (WHITE)
6 A-1705-889-A HOUSING COV. ASSY (030-0003-811) (PINK)
6 A-1705-890-A HOUSING COV. ASSY (030-0005-811) (BLUE)
6 A-1705-891-A HOUSING COV. ASSY (030-0004-811) (RED)
7 9-885-131-22 10PIN FFC (045-0001-055)
8 A-1703-822-A LCD BOARD, COMPLETE (02-06049311-00) (US)
8 A-1705-918-A LCD BOARD, COMPLETE (02-06049312-00) (CND)
8 A-1734-846-A LCD BOARD, COMPLETE (02-06049314-00)
(EXCEPT US, CND)
9 9-885-119-28 SPEAKER (570203500-600-G)
NOTE:
• -XX and -Xmeanstandardized parts, sothey
mayhavesomedifferencefromtheoriginalone.
• ColorIndicationofAppearanceParts
 Example:
 KNOB,BALANCE(WHITE)...(RED)
  ↑ ↑
  PartsColor  Cabinet’sColor
• Itemsmarked“*”arenotstockedsincetheyare
seldomrequiredforroutineservice.Somedelay
shouldbeanticipatedwhenorderingtheseitems.
• Themechanicalpartswithnoreferencenumber
intheexplodedviewsarenotsupplied.
• Accessoriesandpackingmaterialsaregivenin
thelastoftheelectricalpartslist.
• Abbreviation
 CND :Canadianmodel
 EA :SaudiArabiamodel
 RUS :Russianmodel
 SP :Singaporemodel
1
3
4
5
6
7
8
9
9
1
2
3
2
not supplied
not supplied
not supplied
(TS1.7X5)
not supplied
(TS1.7X5)
not supplied
(TS1.7X5)
not supplied
(TS2.5X6.5)
not supplied
(TS1.7X5)
not supplied
(TS1.7X7)
not supplied
(TS1.7X7)
not supplied
(TS1.7X7)
not supplied
(TS1.7X7)
not supplied
(TS1.7X5)
not supplied
(TS1.7X5)
not
supplied
not supplied
main block
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
Thecomponentsidentifiedbymark0ordotted
linewithmark0arecriticalforsafety.
Replaceonlywithpartnumberspecified.
Lescomposantsidentifiésparunemarque0
sontcritiquespourlasécurité.
Nelesremplacerqueparunepièceportantle
numérospécifié.
