DVP-FX921/FX921K/FX930/FX930CC/FX930WM/FX935

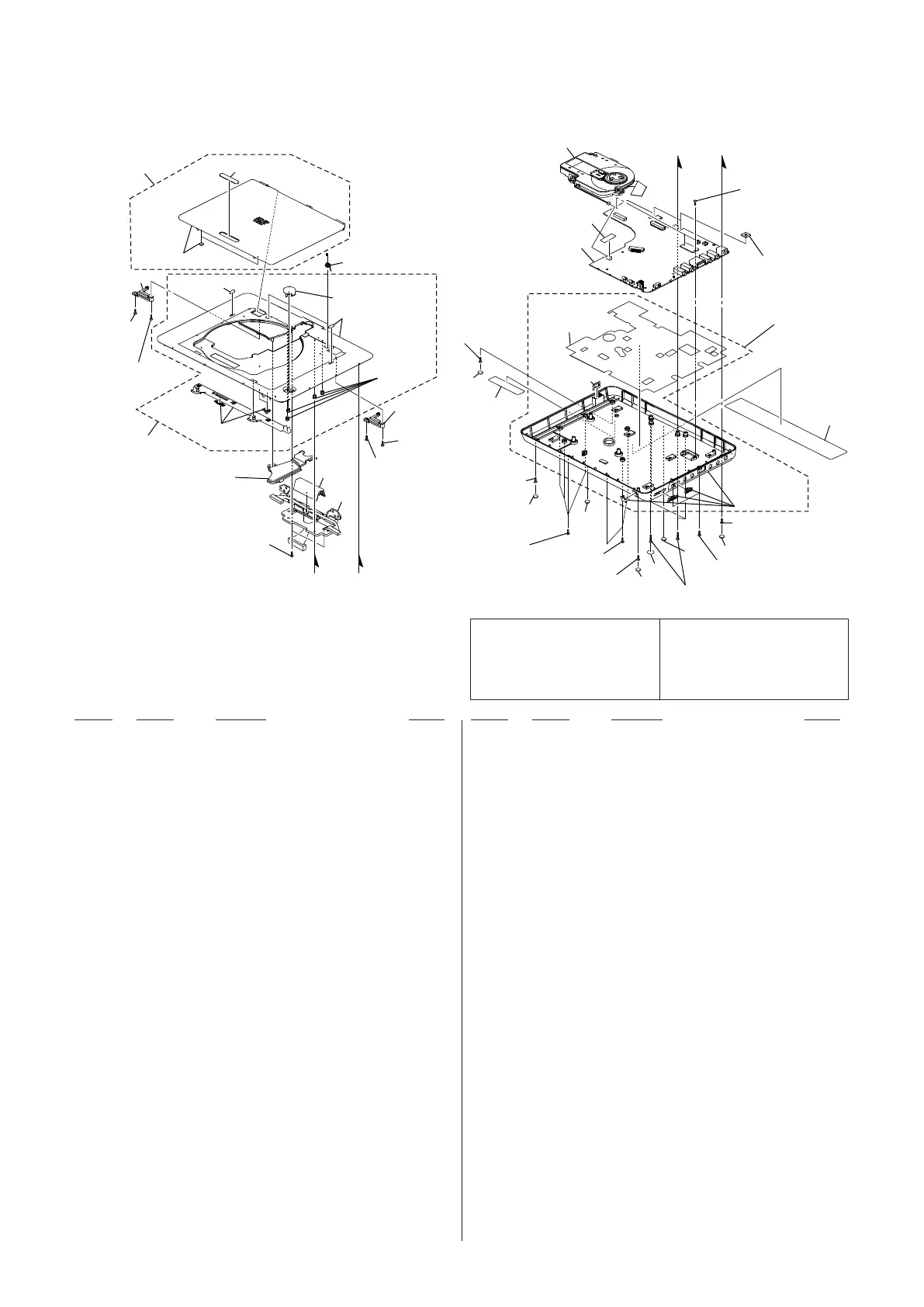

9-1-2. MAIN BLOCK
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-1703-812-A BOTTOM COV. ASSY (030-0001-812) (BLACK: US)
51 A-1705-866-A BOTTOM COV. ASSY (030-0002-812) (WHITE)
51 A-1705-867-A BOTTOM COV. ASSY (030-0003-812) (PINK)
51 A-1705-868-A BOTTOM COV. ASSY (030-0005-812) (BLUE)
51 A-1705-869-A BOTTOM COV. ASSY (030-0004-812) (RED)
51 A-1705-870-A BOTTOM COV. ASSY (030-0201-812)
(BLACK: CND)
51 A-1727-418-A BOTTOM COV. ASSY (030-0401-812)
(BLACK: AEP, UK, RUS)
51 A-1734-837-A BOTTOM COV. ASSY (030-0501-812)
(BLACK: SP, EA)
52 9-885-103-46 FOOT RUBBER (091-0001-261)
53 A-1703-813-A MAIN BOARD, COMPLETE (02-01049301-00) (US)
53 A-1705-872-A MAIN BOARD, COMPLETE (02-01049302-00)
(CND)
53 A-1727-419-A MAIN BOARD, COMPLETE (02-01049303-00)
(AEP, UK)
53 A-1734-838-A MAIN BOARD, COMPLETE (02-01049304-00)
(RUS)
53 A-1734-839-A MAIN BOARD, COMPLETE (02-01049306-00) (SP)
53 A-1734-840-A MAIN BOARD, COMPLETE (02-01049307-00) (EA)
54 9-885-127-20 TAPE FOR TRAVERS (090-0001-2158)
0 55 9-885-119-68 TRAVERS (2Q010SQ01-770-G)
56 A-1703-815-A UPPER COVER ASSY (A-1703-815-A) (US)
56 A-1705-880-A UPPER COVER ASSY (A-1705-880-A) (CND)
56 A-1727-421-A UPPER COVER ASSY (A-1727-421-A)
(AEP, UK, SP, EA, RUS)
57 A-1703-816-A DISC LID ASSY (A-1703-816-A) (BLACK: FX930
(US, SP, EA), FX930CC, FX930WM)
57 A-1705-881-A DISC LID ASSY (A-1705-881-A) (WHITE)
57 A-1705-882-A DISC LID ASSY (A-1705-882-A) (PINK)
57 A-1705-883-A DISC LID ASSY (A-1705-883-A) (BLUE)
57 A-1705-884-A DISC LID ASSY (A-1705-884-A) (RED)
57 A-1705-885-A DISC LID ASSY (A-1705-885-A)
(BLACK: FX921, FX921K)
57 A-1705-886-A DISC LID ASSY (A-1705-886-A) (BLACK: FX935)
57 A-1727-422-A DISC LID ASSY (A-1727-422-A)
(BLACK: FX930 (AEP, UK, RUS))
58 9-885-129-16 DISC LID SPRING (024-0001-1256)
59 9-885-129-15 HINGE ASSY (020-0001-956)
60 9-885-129-37 HINGE COVER (013-0001-9831)
61 9-885-108-32 SHEET, OPEN PREVE (086-0001-041)
62 9-885-119-37 LASER CAUSION LB (086-0003-5297) (US, CND)
62 9-885-121-44 LASER CAUSION LB (086-0001-5642) (AEP, UK)
63 9-885-129-42 MODEL NO LABEL (085-0001-3890)
(FX930: US, FX930CC, FX930WM)
63 9-885-130-74 MODEL NO LABEL (085-0001-4159)
(FX921, FX921K)
63 9-885-130-75 MODEL NO LABEL (085-0001-4160) (FX935)
63 9-885-132-87 MODEL NO LABEL (085-0001-4737)
(FX930: AEP, UK)
63 9-885-134-61 MODEL NO LABEL (085-0001-4782) (FX930: RUS)
63 9-885-134-64 MODEL NO LABEL (085-0001-5122) (FX930: SP)
63 9-885-134-67 MODEL NO LABEL (085-0001-5124) (FX930: EA)
not supplied
(TS2X8.5)
not supplied
(TS2X8.5)
not supplied
(TS2X8.5)
not supplied
(TS2X8.5)
not supplied
(TS2X8.5)
not supplied
(TS2X8.5)
not supplied
(TS2.5X11)
not supplied
(TS2X8.5)
not supplied
(TS2X4.5)
not supplied
(TS2X4.5)
not supplied
(TS2X4.5)
not supplied
(TS2X4.5)
not supplied
(TS2X4.5)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(TS2X4.5)
52
51
53
54
55
60
59
56
57
58
52
52
62
52
61
63
52
52
not supplied
not supplied
not supplied
not supplied
A
B
A
B
