Hookups
15

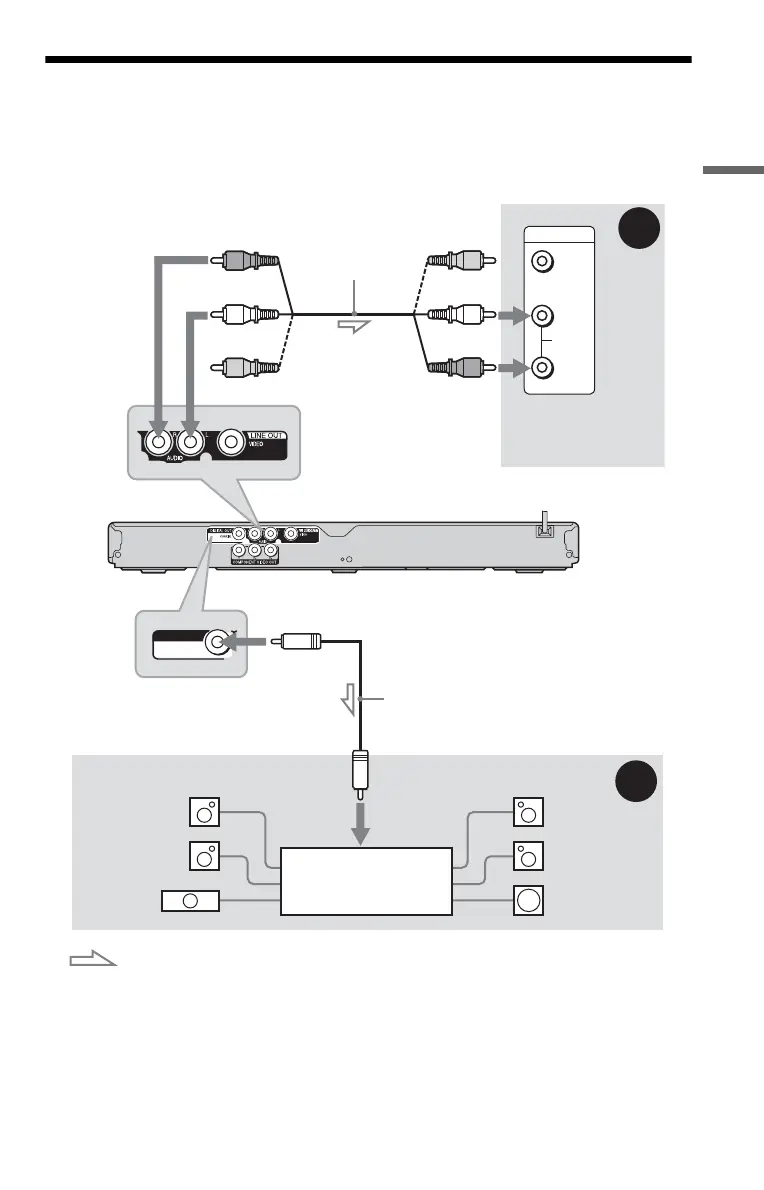

Step 3: Connecting the Audio Cords
Select one of the following patterns A or B, according to the input jack on your TV monitor,
projector, or audio component such as an AV amplifier (receiver).
This will enable you to listen to sound.
z Hint
For correct speaker location, see the operating instructions supplied with the connected components.
VIDEO
AUDIO
INPUT
L
R
B
A
DIGITAL OUT
COAXIAL
Audio component with
a decoder
(red)
TV, projector, or
audio component
Audio/video
cord (supplied)
: Signal flow
Coaxial digital cord
(not supplied)
to DIGITAL OUT (COAXIAL)
to LINE OUT L/R (AUDIO)
Rear (L)
CD/DVD player
(white)
(yellow)*
(yellow)*
(white)
(red)
[Speakers]
Front (L)
[Speakers]
to coaxial
digital input
Rear (R)
Front (R)
SubwooferCenter
* The yellow plug is used for video signals (page 14).
,continued
To Next Page
