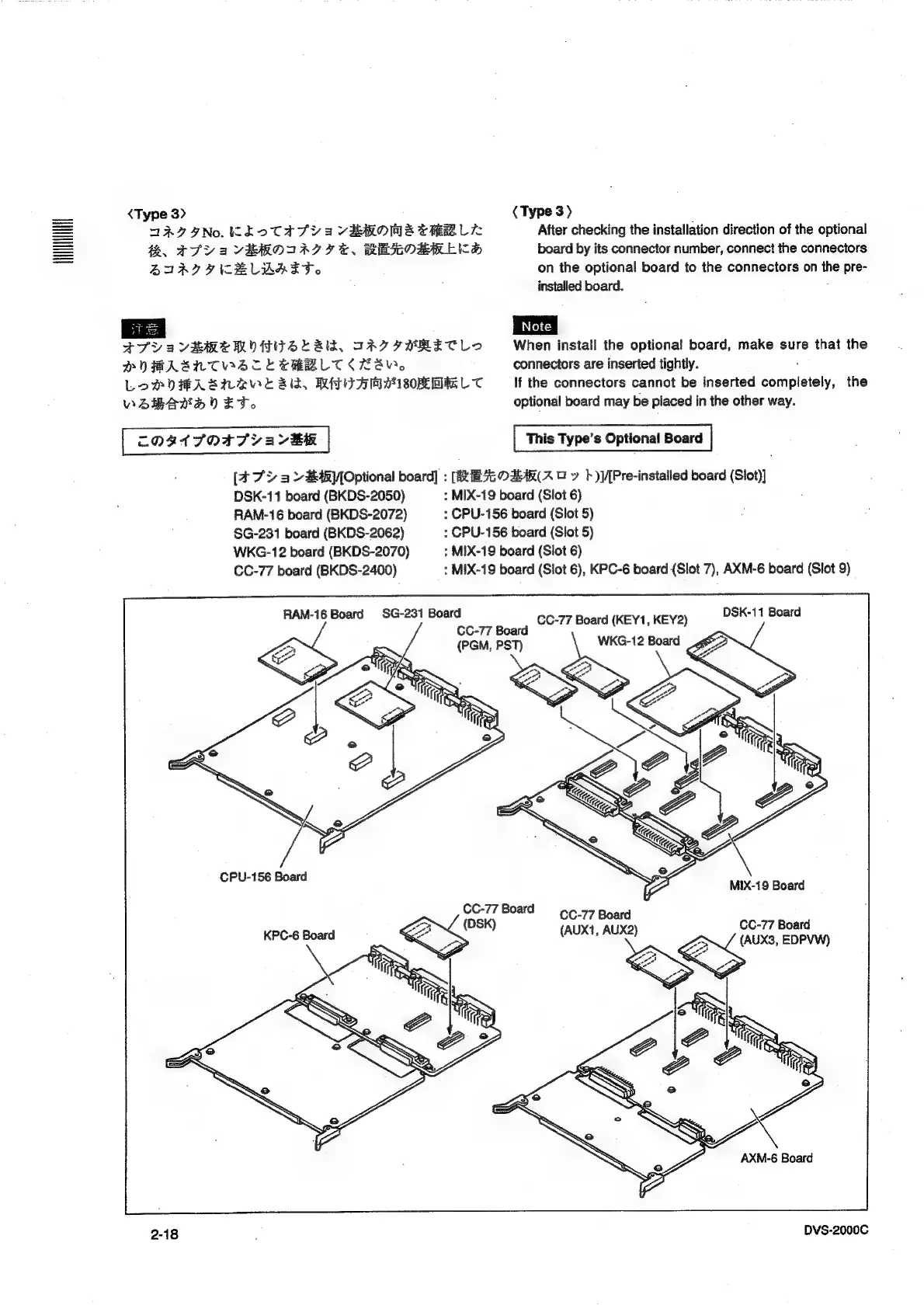

(Type 3)
After checking the installation direction of the optional
board by its connector number, connect the connectors
on the optional board to the connectors on the pre-
installed board. :
When install the optional board, make sure that the
connectors are inserted tightly. :
If the connectors cannot be inserted completely, the
optional board may be placed in the other way.
This Type’s Optional Board
[A
7Y
3
>
BARV[Optional
board]
:
[Hi7
OBA
Uv
})/[Pre-installed
board
(Slot)]
DSK-11 board (BKDS-2050)
RAM-16 board (BKDS-2072)
SG-231 board (BKDS-2062)
WKG-12 board (BKDS-2070)
CC-77 board (BKDS-2400)
RAN-16 Board SG-231 Board
CC-77 Board
: MIX-19 board (Slot 6)
: CPU-156 board (Slot 5)
: GPU-156 board (Slot 5)
; MIX-19 board (Slot 6)
: MIX-19 board (Slot 6), KPC-6 board (Slot 7), AXM-6 board (Slot 9)
DSK-11 Board
CC-77 Board (KEY1, KEY2)
(PGM, PST)
CPU-156 Board
CC-77 Board
KPC-6 Board
2-18
MIX-19 Board
CC-77 Board
(AUX1,
AUX2)
CC-77
Board
(AUX3, EDPVW)
