Setting Check Sheet
(Continued)
Board Switch No. : Name Factory setting Setting
SS-89 S101 1 : TRACKING ENABLE OFF
2 : Factory use OFF _
3 : DT WOBBLING OFF
4 : SV ERR DISABLE OFF
S1501 Never change the settings of S1501 switch since each switch is set according to the characteristics of the unit.
1 : Factory use OFF _
2 - 6 : Model ID switch See below. _
7 : J/SY ON _
8 : 525/625 See below.
S1502 1 : EXTENDED MENU OFF (DVW, MSW)/ON (HDW)
2 : MAINTENANCE MODE ACCESS ENABLE OFF (DVW, MSW)/ON (HDW)
3 - 5 : Factory use OFF _
6 : CUSTOMIZE MENU OFF
7, 8 : Factory use OFF _

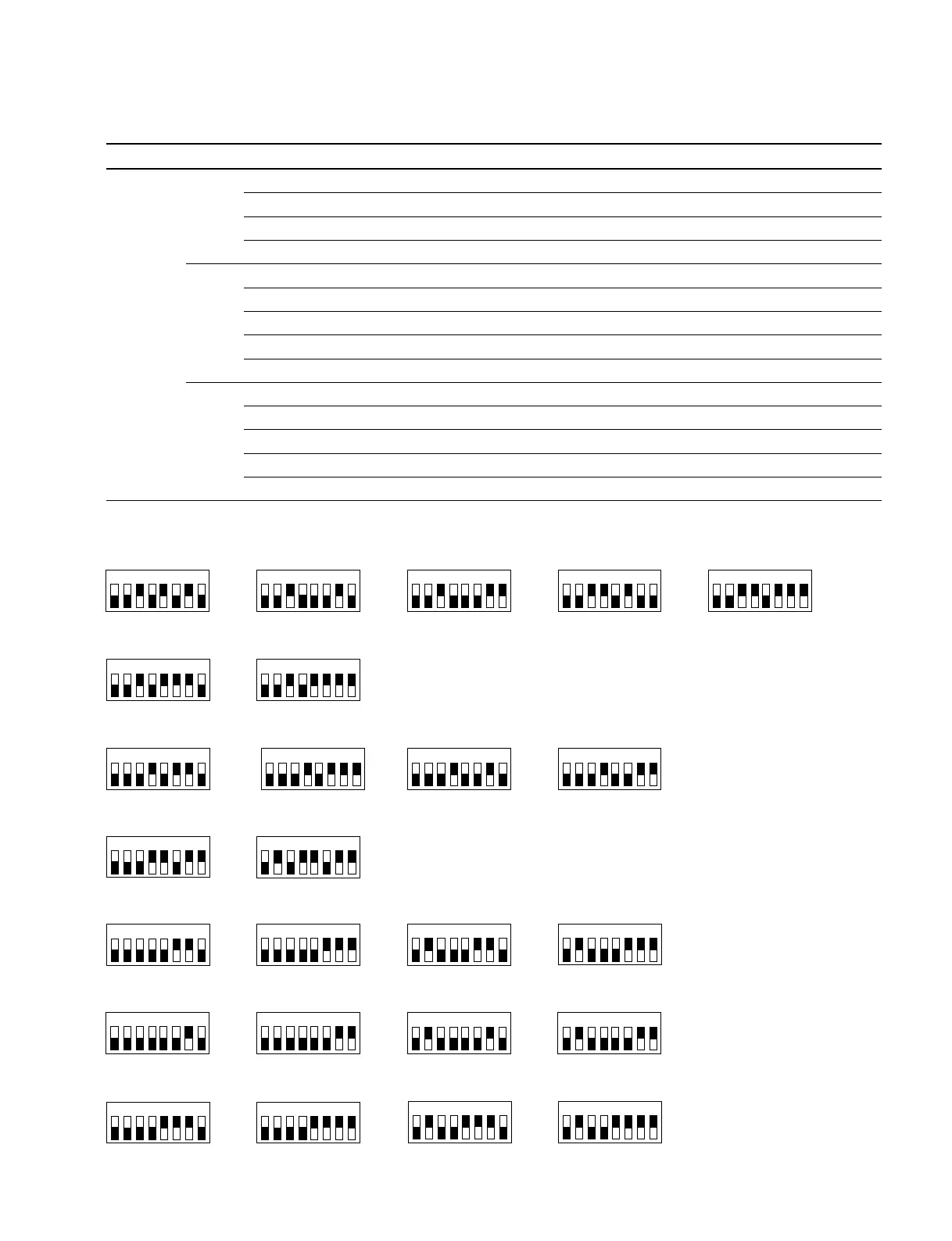

S1501 factory setting (
\\
\\
\ : Knob position)
