2-2
DXC-D35/D35WS(UC)
DXC-D35P/D35WSP(CE) V1
2-2. Removal/Attachment of Cabinet
2-2-1. Removal of Side Plate

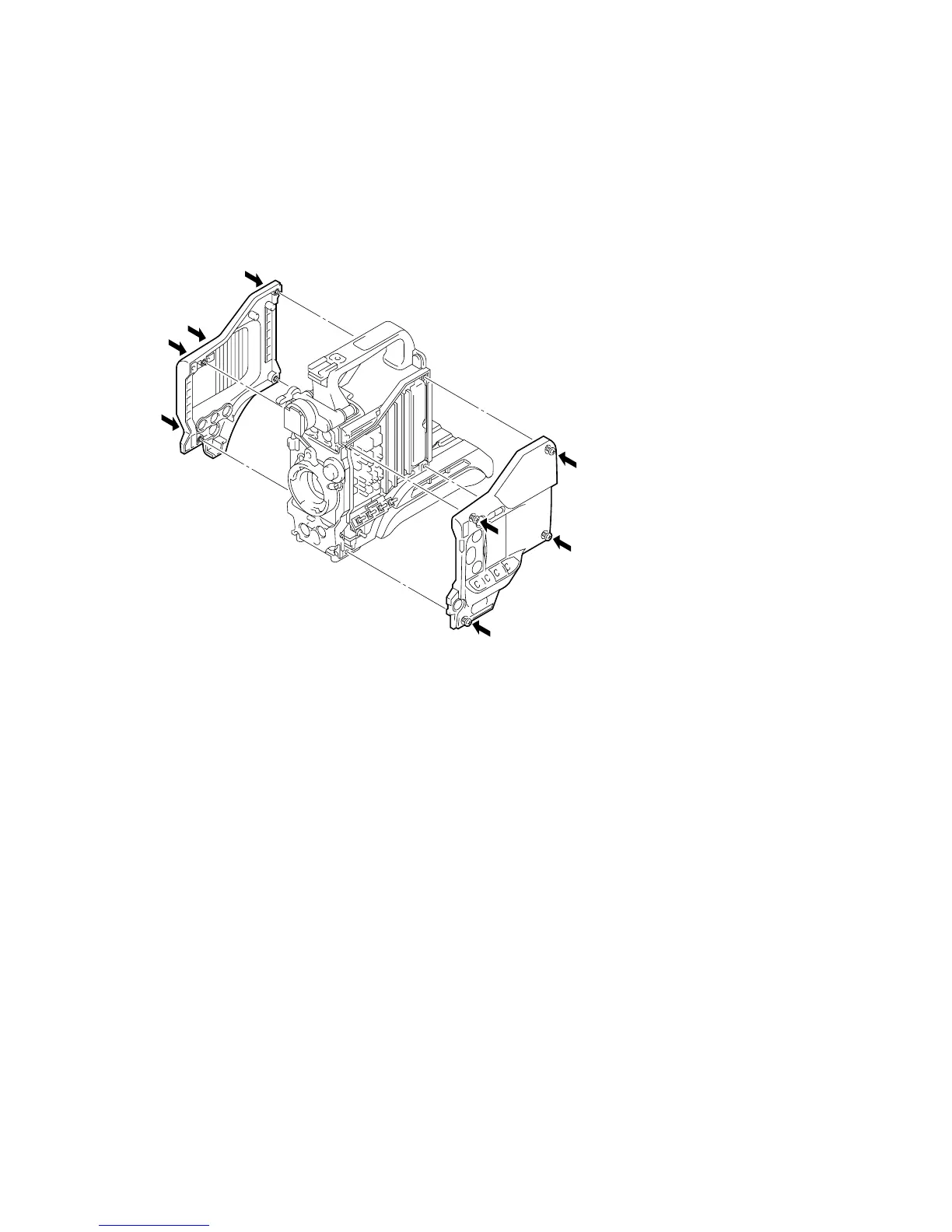

Slacken the eight screws as shown in the figure and remove the right and left side
plates.
