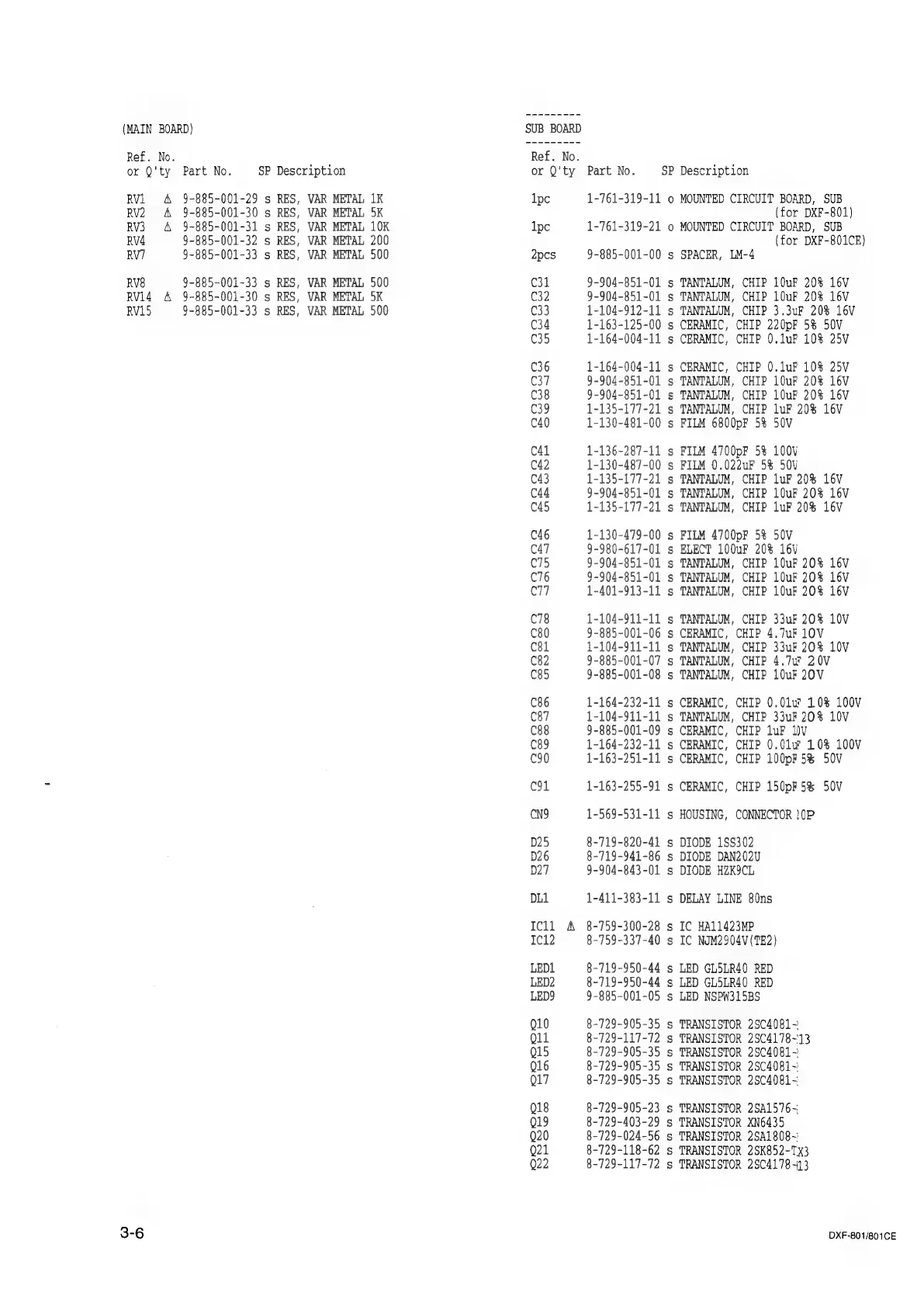

Sony DXF-801 - Page 46

(MAIN BOARD) SUB BOARD
Ref, No. Ref. No.
or Q'ty Part No. SP Description or Q'ty Part No. SP Description
RVi A 9-885-001-29 s RES, VAR METAL 1K lpc 1-761-319-11 o MOUNTED CIRCUIT BOARD, SUB
RV2 A 9-885-001-30 s RES, VAR METAL 5K (for DXF-801)
RV3. A 9-885-001-31 s RES, VAR METAL 10K Ipc 1-761-319-21 o MOUNTED CIRCUIT BOARD, SUB
RV4 9-885-001-32 s RES, VAR METAL 200 (for DXF-801CE)
RV7 9-885-001-33 s RES, VAR METAL 500 2pcs 9-885-001-00 s SPACER, LM-4
RV8 9-885-001-33 s RES, VAR METAL 500 C31 9-904-851-01 s TANTALUM, CHIP 10uF 20% 16V
RVi4 A 9-885-001-30 s RES, VAR METAL 5K C32 9-904-851-01 s TANTALUM, CHIP 10uF 20% 16V
RViS 9-885-001-33 s RES, VAR METAL 500 C33 1-104-912-11 s TANTALUM, CHIP 3.3uF 20% 16V
C34 1-163-125-00 s CERAMIC, CHIP 220pF 5% 50V
C35 1-164-004-11 s CERAMIC, CHIP 0.1uF 10% 25V
C36 1-164-004-11 s CERAMIC, CHIP 0.1uF 10% 25V
C37 9-904-851-01 s TANTALUM, CHIP 10uF 20% 16V
C38 9-904-851-01 s TANTALUM, CHIP 1l0uF 20% 1l6V
C39 1-135-177-21 s TANTALUM, CHIP luF 20% 16V
c40 1-130-481-00 s FILM 6800pF 5% 50V
C41 1-136-287-11 s FILM 4700pF 5% 100V
C42 1-130-487-00 s FILM 0.022uF 5% 50V
C43 1-135-177-21 s TANTALUM, CHIP luF 20% 16V
c44 9-904-851-01 s TANTALUM, CHIP 10uF 20% 16V
c45 1-135-177-21 s TANTALUM, CHIP luF 20% 16V
C46 1-130-479-00 s FILM 4700pF 5% 50V
C47 9-980-617-01 s ELECT 100uF 20% 16V
C75 9-904-851-01 s TANTALUM, CHIP 10uF 20% 1l6V
C76 9-904-851-01 s TANTALUM, CHIP 10uF 20% 16V
CTT 1-401-913-11 s TANTALUM, CHIP 10uF 20% 16V
C78 1-104-911-11 s TANTALUM, CHIP 33uF 20% 10V
C80 9-885-001-06
C81 1-104-911-11
C82 9-885-001-07
C85 9-885-001-08
CERAMIC, CHIP 4.7uF 10V
TANTALUM, CHIP 33uF 20% 10V
TANTALUM, CHIP 4.7 20V
TANTALUM, CHIP 10uF 20V nnnnn
C86 1-164-232-11 s CERAMIC, CHIP 0.01lw 10% 100V
C87 1-104-911-11 s TANTALUM, CHIP 33uF 20% 10V
C88 9-885-001-09 s CERAMIC, CHIP luF lV
C89 1-164-232-11 s CERAMIC, CHIP 0.01u 10% 100V
c90 1-163-251-11 s CERAMIC, CHIP 100pF5% 50V
cot 1-163-255-91 s CERAMIC, CHIP 150pF5% 50V
cng 1-569-531-11 s HOUSING, CONNECTOR !0P
D25 8-719-820-41 s DIODE 188302
D26 8-719-941-86 s DIODE DAN202U
D27 9-904-843-01 s DIODE HZK9CL
DL1 1-411-383-11 s DELAY LINE 80ns
Icll A 8-759-300-28 s IC HAL1423MP
Icl2 8-759-337-40 s IC NUM2904V(TE2}
LED1 8-719-950-44 s LED GL5LR40 RED
LED2 8-719-950-44 s LED GLOLR40 RED
LED9 9-885-001-05 s LED NSPW315BS
Q10 8-729-905-35 s TRANSISTOR 2SC4081-~!
Ql 8-729-117-72 s TRANSISTOR 2SC4178~13
Q15 8-729-905-35 s TRANSISTOR 25C4081-
Ql6 8-729-905-35 s TRANSISTOR 2SC4081~
Q17 8-729-905-35 s TRANSISTOR 25C4081~
Q18 8-729-905-23 s TRANSISTOR 25A1576~
Q19 8-729-403-29 s TRANSISTOR XN6435
020 8-729-024-56 s TRANSISTOR 2SA1808~
s
s
Q21 8-729-118-62 s TRANSISTOR 2SK852-Tx3
Q22 8-729-117-72 s TRANSISTOR 2SC4178~113
