Sony DXF-801 - Service Information

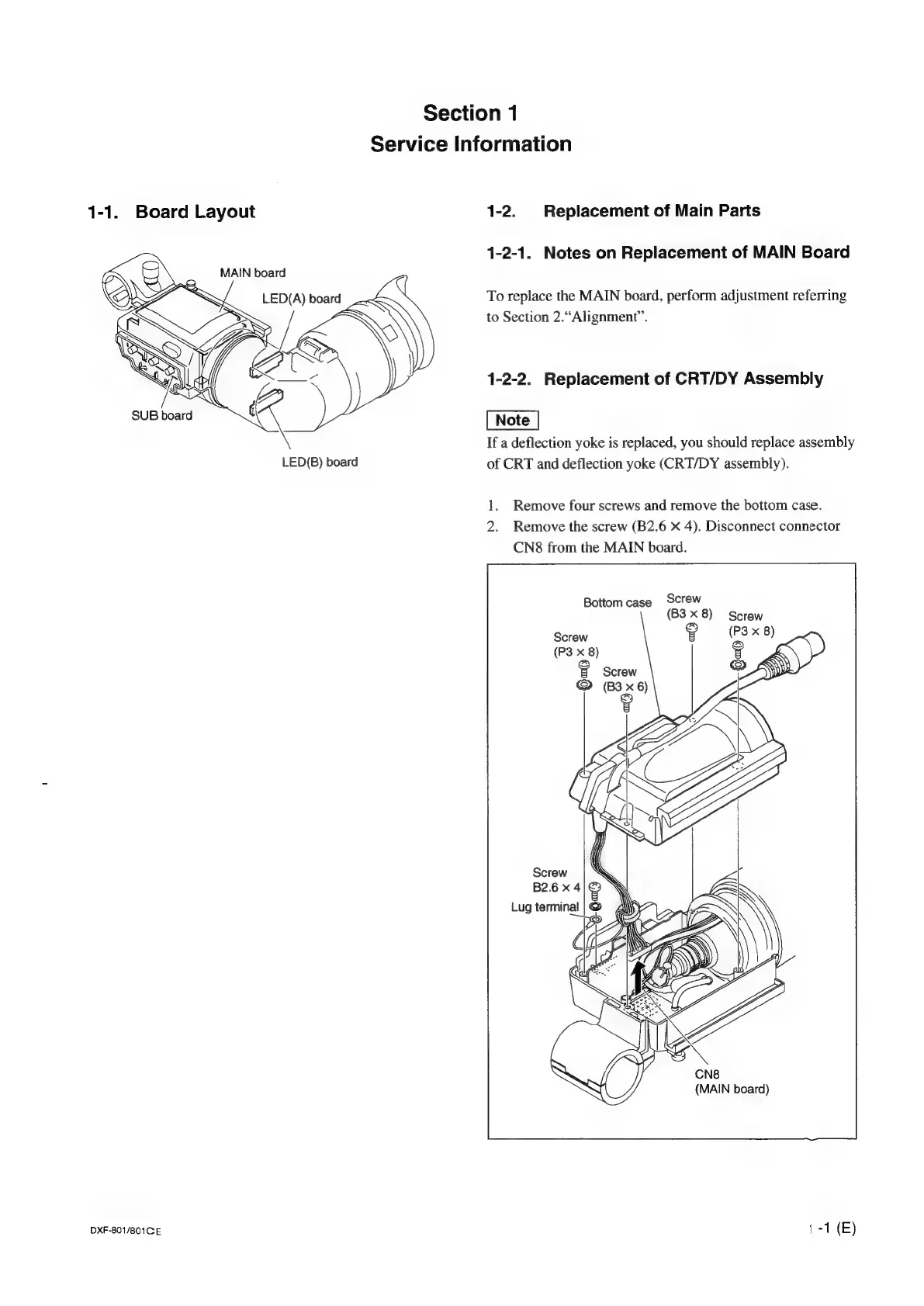

Section 1
Service Information
1-1. Board Layout 1-2. Replacement of Main Parts
1-2-1. Notes on Replacement of MAIN Board
To replace the MAIN board, perform adjustment referring
to Section 2.“Alignment”.
1-2-2. Replacement of CRT/DY Assembly
If a deflection yoke is replaced, you should replace assembly
LED(B) board of CRT and deflection yoke (CRT/DY assembly).
1. Remove four screws and remove the bottom case.
2. Remove the screw (B2.6 X 4). Disconnect connector
CN8 from the MAIN board.
Bottom case Screw
(B3 x 8)
Screw
B2.6 x4
Lug terminal
(MAIN board)
DXF-801/801CE 1-1 (E)
