12

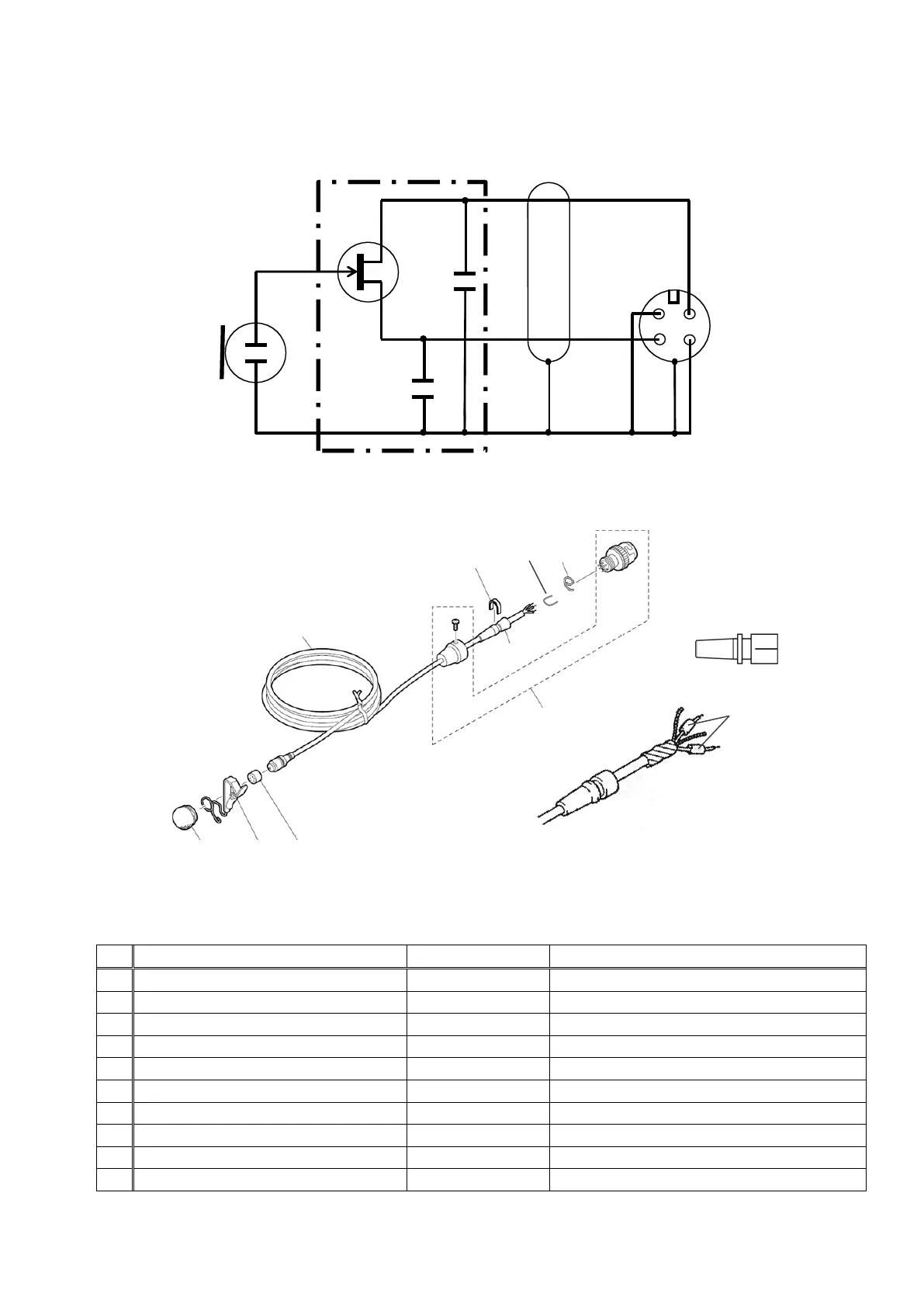

B. Improved unit for high frequency interference (1) (Bushing: Gray)
1. Schematic diagram
2. Part Required
■Improved unit for high frequency interference (1) (Bushing: gray)
Part Name
Part No.
Remarks
1
Capsule ASSY
A-1541-734-A
2
Amplifier Case ASSY
A-2203-645-A
Changed from X-2537-418-5
3
Connector (plug)
1-560-155-73
4
Microphone Bushing
2-523-605-21
Color: gray, Length: short
5
Cord Clamp
2-523-606-01
6
Ground Ring
3-615-397-01
7
Horizontal Holder Clip ASSY
X-2537-404-4
8
Wind screen ASSY
X-2537-410-1
9
Heat shrinkable tube
-
Included in amplifier case ASSY.
10
Jumper wire
-
Included in amplifier case ASSY.
CABLE
RED
WHITE
SHIELD
AMPLIFIER CASE ASSY
CAPSULE
CN
S
1
2
3
4
④
Fig. 17
Fig. 18
⑨
⑩
①
②
④
③
⑤
⑥
⑦ ⑧
