Sony ECM-999 - Exploded View and Parts List

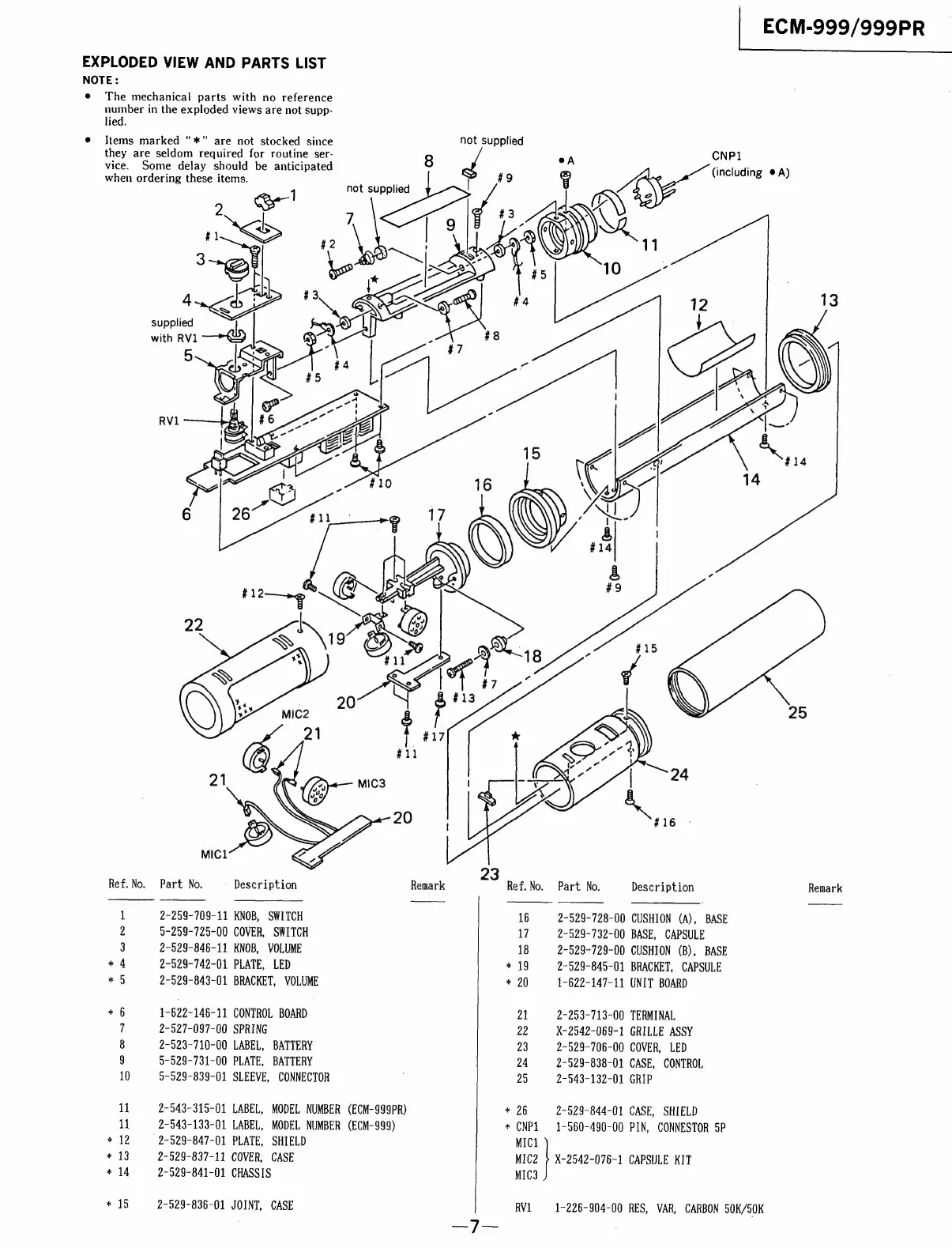

EXPLODED VIEW AND PARTS LIST
NOTE:
e The mechanical parts with no reference
number in the exploded views are not supp-
lied.
@ Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items. :
1 not supplied
. 20
MIC2
21
t
0
R
Ref.No. Part No. - Description
1 2-259-709-11 KNOB, SWITCH
2 5-259-725-00 COVER, SWITCH
3 2-529-846-11 KNOB, VOLUME
* 4 2-529-742-01 PLATE, LED
* 5 2-529-843-01 BRACKET, VOLUME
* 6 1-622-146-11 CONTROL BOARD
7 2-527-097-00 SPRING
8 2-523-710-00 LABEL, BATTERY
g 5-529-731-00 PLATE, BATTERY
10 5-529-839-01 SLEEVE, CONNECTOR
Il 2-543-315-01 LABEL, MODEL NUMBER (ECM-999PR)
Mi 2-543-133-01 LABEL, MODEL NUMBER (ECM-999)
* 12 -2-529-847-01 PLATE, SHIELD
* 43 2-529-837-11 COVER, CASE
* 14 2-529-841-01 CHASSIS
* 415
2-529-836-01 JOINT, CASE
| ECM-999/999PR ~
not supplied
emark
CNP1
(including ® A)
25
Ref. No. Part No. Description Remark
16 2-529-728-00 CUSHION (A), BASE
17 2-529-732-00 BASE, CAPSULE
18 2-529-729-00 CUSHION (B), BASE
* 19 2-529-845-01 BRACKET, CAPSULE
« 20 1-622-147-11 UNIT BOARD
21 2-253-713-00 TERMINAL
22 X-2542-069-1 GRILLE ASSY
23 2-529-706-00 COVER, LED
24 2-529-838-01 CASE, CONTROL
25 2-543-132-01 GRIP
* 26 2-529-844-01 CASE, SHIELD
* (NPL 1~-560-490-00 PIN, CONNESTOR 5P
MICi
MIG2 > X-2542-076-1 CAPSULE KIT
MIC3
RV1
1-226-904-00 RES, VAR, CARBON 50K/50K
