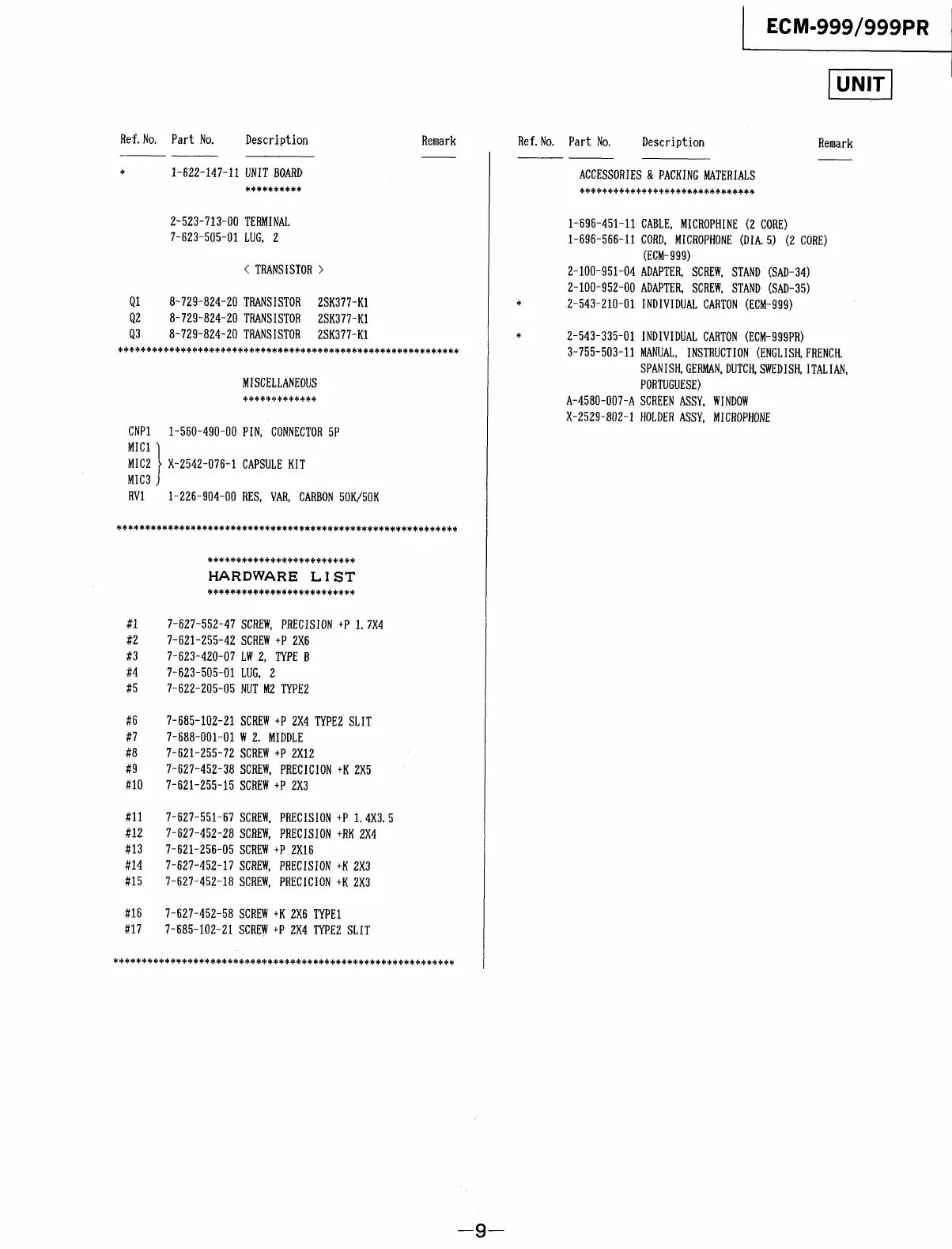

Sony ECM-999 - Hardware List

Ref. No.
Qi
Q2
Q3
Part No. Description Remark
1-622-147-11 UNIT BOARD
AIG jatokok
2-523-713-00 TERMINAL
7-623-505-01 LUG, 2
< TRANSISTOR >
8-729-824-20 TRANSISTOR
8-729-824-20 TRANSISTOR
8~729-824-20 TRANSISTOR
2SK377-K1
28K377-K1
2SK377-K1
AICI SII II IO III IO IOI SI II IOI II IR IO IO IOI OI Ok sok
CNP1
MIC1
MIC2
MIC3
RV1
MISCELLANEOUS
ORR IO kk foe
1~560-490-00 PIN, CONNECTOR oP
X-2542-076-1 CAPSULE KIT
1-226-904-00 RES, VAR, CARBON 50K/50K
SEIOICI OOOO IOI IOI IO IOI IO IO OO OR OR IO OI OOK
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11
#12
#13
#14
#15
#16
#17
ESIC II I ok kok okok
HARDWARE LIST
FICO GO IO OO iookokok dog tok
7-627-552-47 SCREW, PRECISION +P 1. 7X4
7-621-255-42 SCREW +P 2X6
7-623-420-07 LW 2, TYPE B
7-623-505-01 LUG, 2
7-622-205-05 NUT M2 TYPE2
7-685-102-21 SCREW +P 2X4 TYPE2 SLIT
7-688-001-01 W 2. MIDDLE
7-621-255-72 SCREW +P 2X12
7-627~452-38 SCREW, PRECICION +K 2X5
7-621-255-15 SCREW +P 2X3
7-627-551-67 SCREW, PRECISION +P 1. 4X3. 5
7-627-452-28 SCREW, PRECISION +RK 2X4
7-621-256-05 SCREW +P 2X16
7-627-452-17 SCREW, PRECISION +K 2X3
7-627-452-18 SCREW, PRECICION +K 2X3
7-627-452-58 SCREW +K 2X6 TYPE1
7-685-102-21 SCREW +P 2X4 TYPE2 SLIT
AICCCR IOI IO IOI IOI IOI OIC OIO II OIO ICO OO I ICO IOI FOR TOR BOK
Ref. No.
ECM-999/999PR
Part No. Description Remark
ACCESSORIES & PACKING MATERIALS
CII OI OIG OI nO OIOfok
1-696-451-11 CABLE, MICROPHINE (2 CORE)
1-696-566-11 CORD, MICROPHONE (DIA.5) (2 CORE)
(ECM- 999)
2-100-951-04 ADAPTER, SCREW, STAND (SAD-34)
2-100-952-00 ADAPTER, SCREW, STAND (SAD-35)
2-543-210-01 INDIVIDUAL CARTON (ECM-999)
2-543-335-01 INDIVIDUAL CARTON (ECM-999PR)
3-795-503-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH.
SPANISH, GERMAN, DUTCH, SWEDISH, ITALIAN,
PORTUGUESE)
A-4580-007-A SCREEN ASSY, WINDOW
X-2529-802-1 HOLDER ASSY, MICROPHONE
