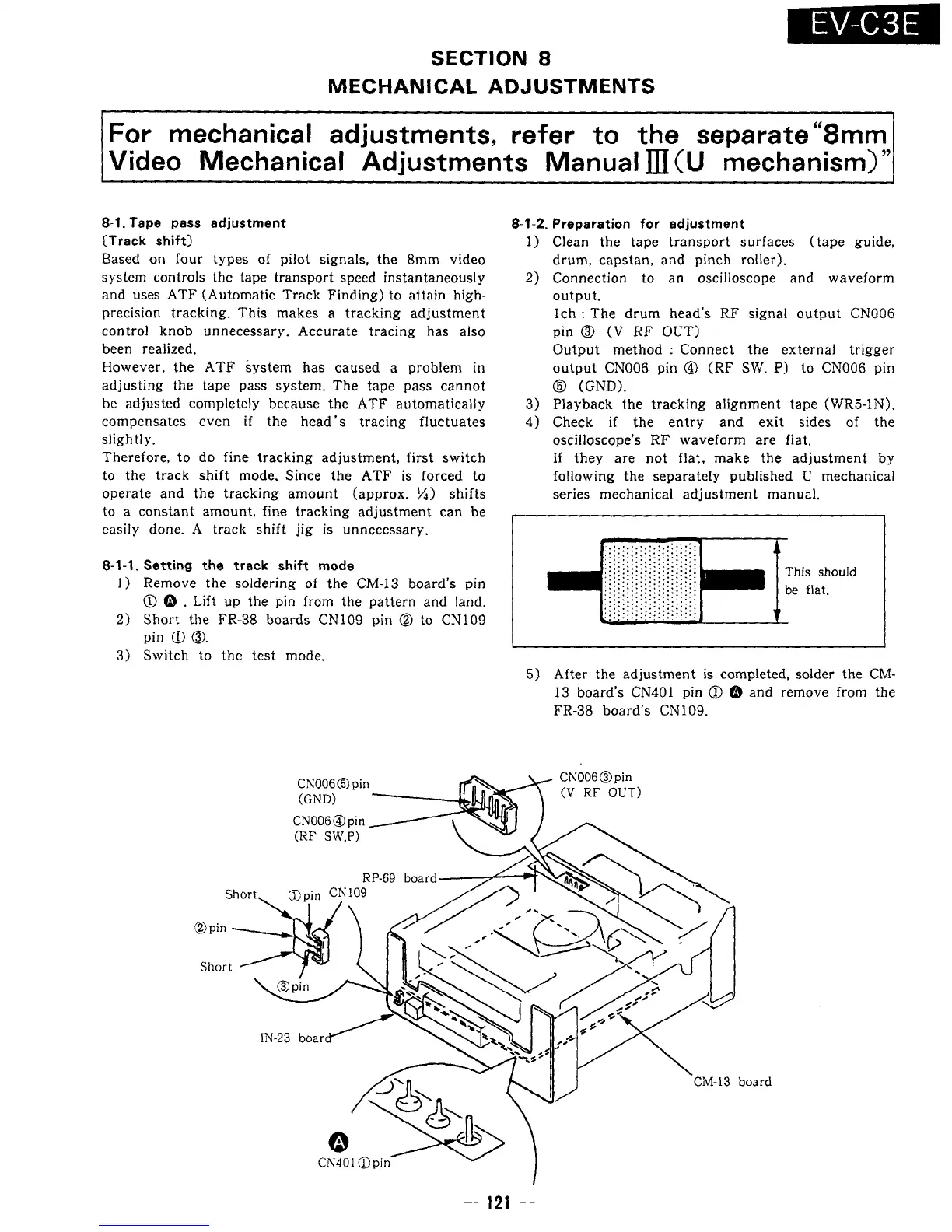

Sony EV-C3E - Mechanical Adjustment: Tape Pass; Tape Pass Adjustment Overview; Setting Track Shift Mode
