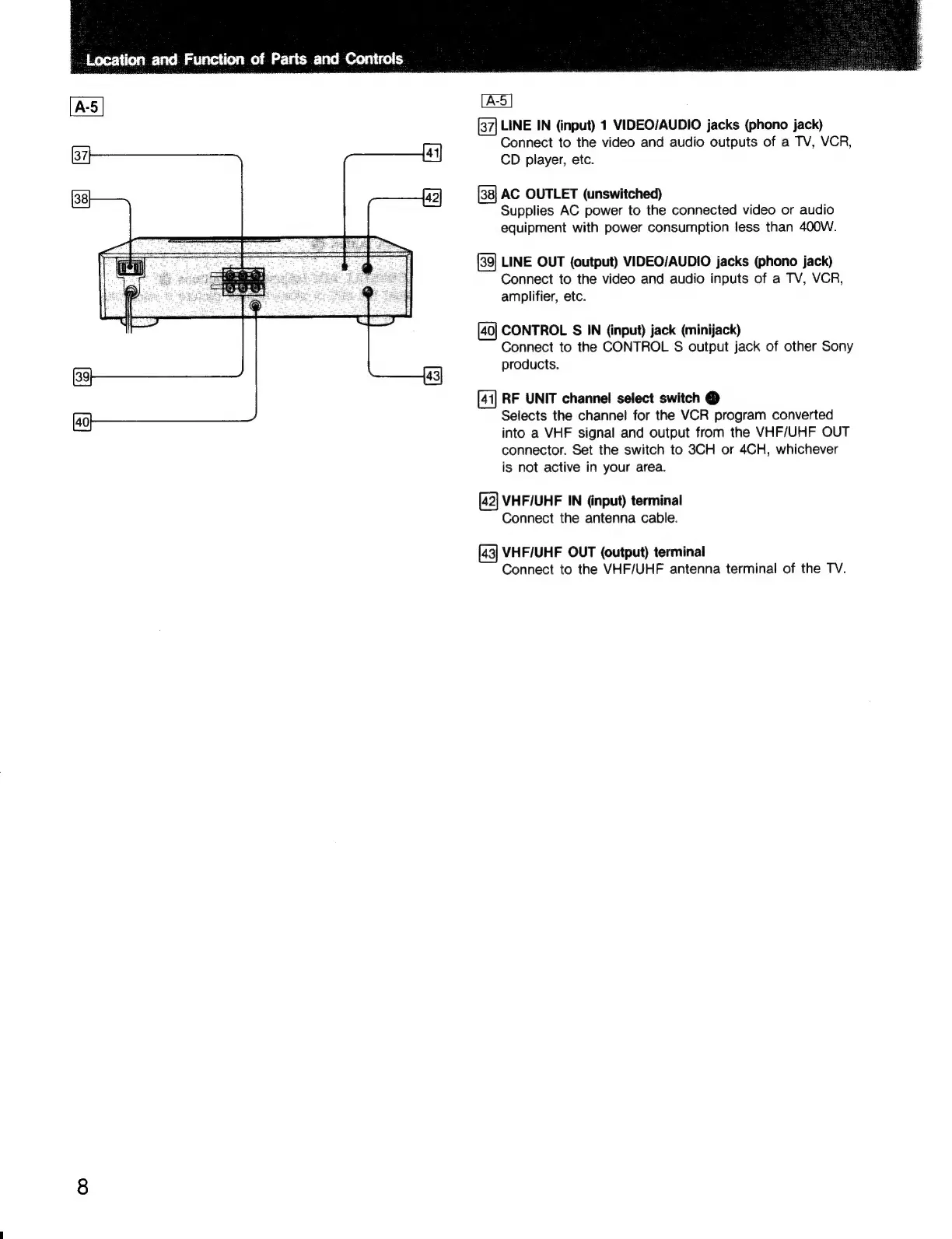

LINE
IN
(input)
1
VIDEO/AUDIO
jacks
(phono
jack)
Connect
to
the
video
and
audio
outputs
of
a
TV,
VCR,
CD
player,
etc.
AC
OUTLET
(unswitched)
Supplies
AC
power
to
the
connected
video
or
audio
equipment
with
power
consumption
less
than
400W.
LINE
OUT
(output)
VIDEO/AUDIO
jacks
(phono
jack)
Connect
to
the
video
and
audio
inputs
of
a
TV,
VCR,
amplifier,
etc.
CONTROL
S§
IN
(input)
jack
(minijack)
Connect
to
the
CONTROL
§
output
jack
of
other
Sony
products.
RF
UNIT
channel
select
switch
@
Selects
the
channel
for
the
VCR
program
converted
into
a
VHF
signal
and
output
from
the
VHF/UHF
OUT
connector.
Set
the
switch
to
3CH
or
4CH,
whichever
is
not
active
in
your
area.
[42]
VHF/UHF
IN
(input)
terminal
Connect
the
antenna
cable.
VHF/UHF
OUT
(output)
terminal
Connect
to
the
VHF/UHF
antenna
terminal
of
the
TV.
