1. Charging/Notification light
2. Headset jack
3. Proximity/Light sensor
4. Ear speaker
5. Front camera lens
6. Front camera light
7. Power key
8. Volume/Zoom key
9. Camera key
10. Main microphone
11. Charger/USB cable port
12. Main loudspeaker
13. Main camera lens
14. Main camera light
15. Second microphone
16. Wi-Fi/Bluetooth/GPS antenna area
17. Nano SIM/Memory card slot cover
18. NFC™ detection area

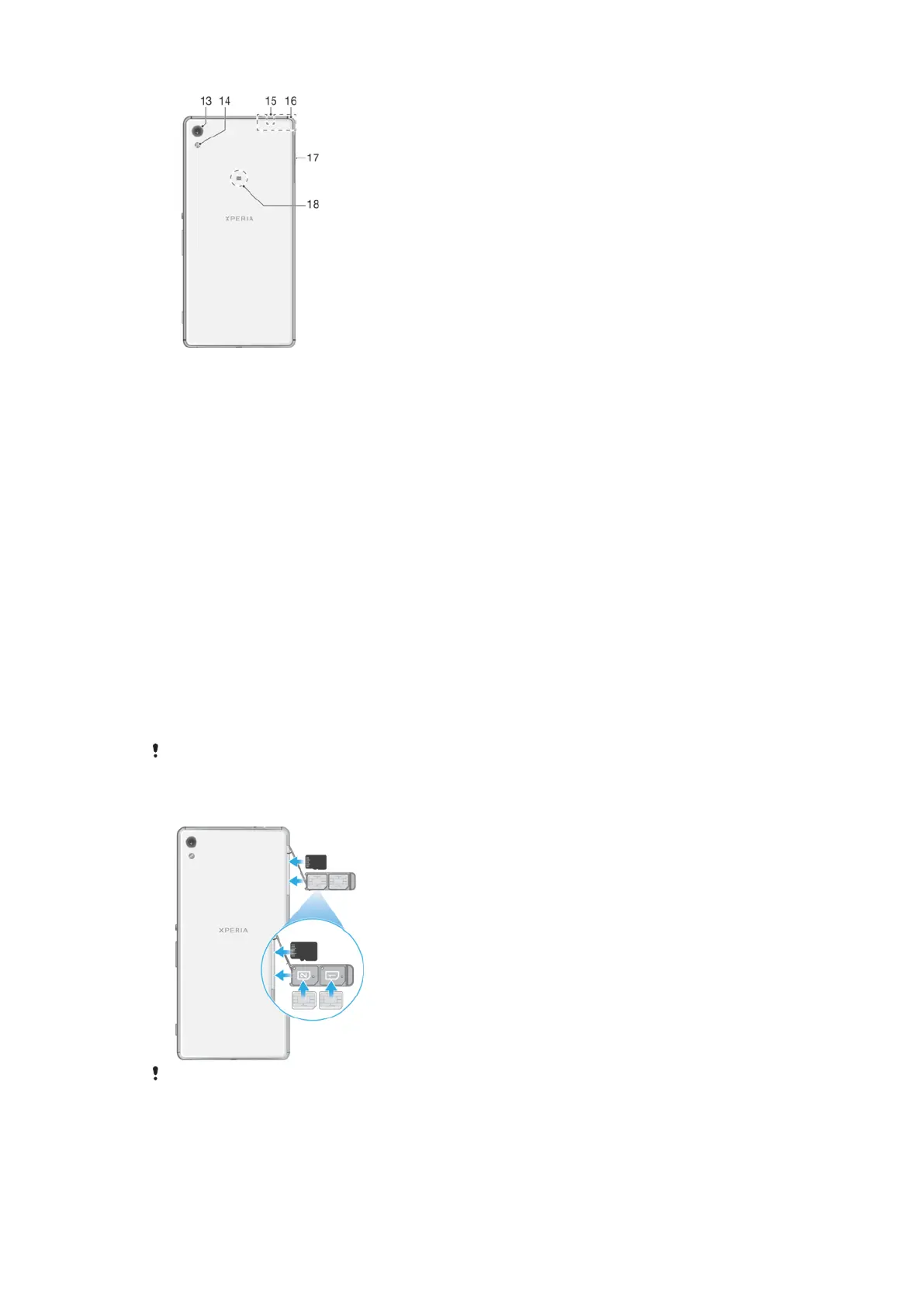

Assembly
Your device only supports nano SIM cards. The nano SIM cards and the memory
card have separate slots. Make sure you don’t confuse the two.
To prevent data loss, turn off your device or unmount the memory card before you drag out the
holder to remove the nano SIM card (or cards) or memory card from the device.
To insert two nano SIM cards and a memory card
Do not cut your SIM cards, for example using a blade or scissors, as this may damage your
device.
