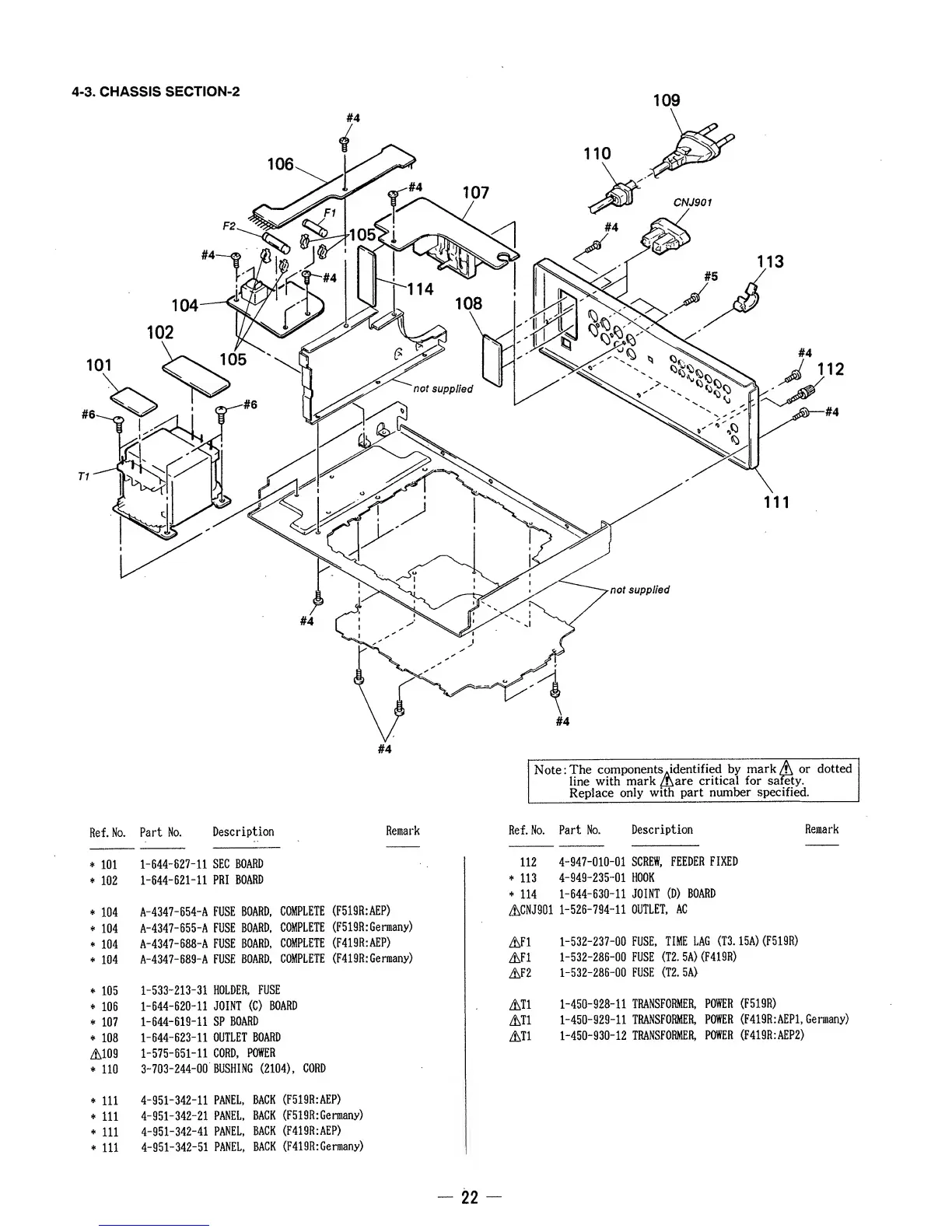

Sony F519R - Chassis Section 2 Exploded View

Note:
The
components.
identified by
mark
A
or
dotted
line
with
mark
Aare
critical
for
safety.
Replace
only
with part
number
specified.
Ref.
No.
Part No.
Description
Remark
*
101
1-644-627-11
SEC BOARD
*
102
1-644-621-11
PRI
BOARD
*
104
A-4347-654-A
FUSE
BOARD,
COMPLETE
(F519R:AEP)
*
104
A-4347-655-A
FUSE
BOARD,
COMPLETE
(F519R:
Germany)
*
104
A-4347-688-A
FUSE
BOARD,
COMPLETE
(F419R:AEP)
*
104
A-4347-689-A
FUSE
BOARD,
COMPLETE (F419R:
Germany)
*
105
1-533-213-31
HOLDER, FUSE
*
106
1-644-620-11
JOINT (C)
BOARD
*
107
1-644-619-11
SP
BOARD
*
108
1-644-623-11
OUTLET
BOARD
A109
1-575-651-11
CORD,
POWER
*
110
3-703-244-00
BUSHING
(2104),
CORD
*
111
4-951-342-11
PANEL,
BACK
(F519R:AEP)
*
111
4-951-342-21
PANEL,
BACK
(F519R: Germany)
*
111
4-951-342-41
PANEL,
BACK (F419R:AEP)
*
111
4-951-342-51
PANEL,
BACK
(F419R:Germany)
Ref.
No.
Part No.
Description
Remark
112
4-947-010-01
SCREW,
FEEDER
FIXED
*
113
4-949-235-01
HOOK
*
114
1-644-630-11
JOINT (D) BOARD
ACNJ901
1-526-794-11
OUTLET, AC
AF1
1-532-237-00
FUSE,
TIME
LAG
(T3.
15A) (F519R)
API
1-532-286-00
FUSE
(T2. 5A)
(F419R)
AF2
1-532-286-00
FUSE
(T2. 5A)
ATI
1-450-928-11
TRANSFORMER,
POWER (F519R)
ATI
1-450-929-11
TRANSFORMER,
POWER
(F419R:AEP1,
Germany)
ATI
1-450-930-12
TRANSFORMER,
POWER (F419R:AEP2)
-
