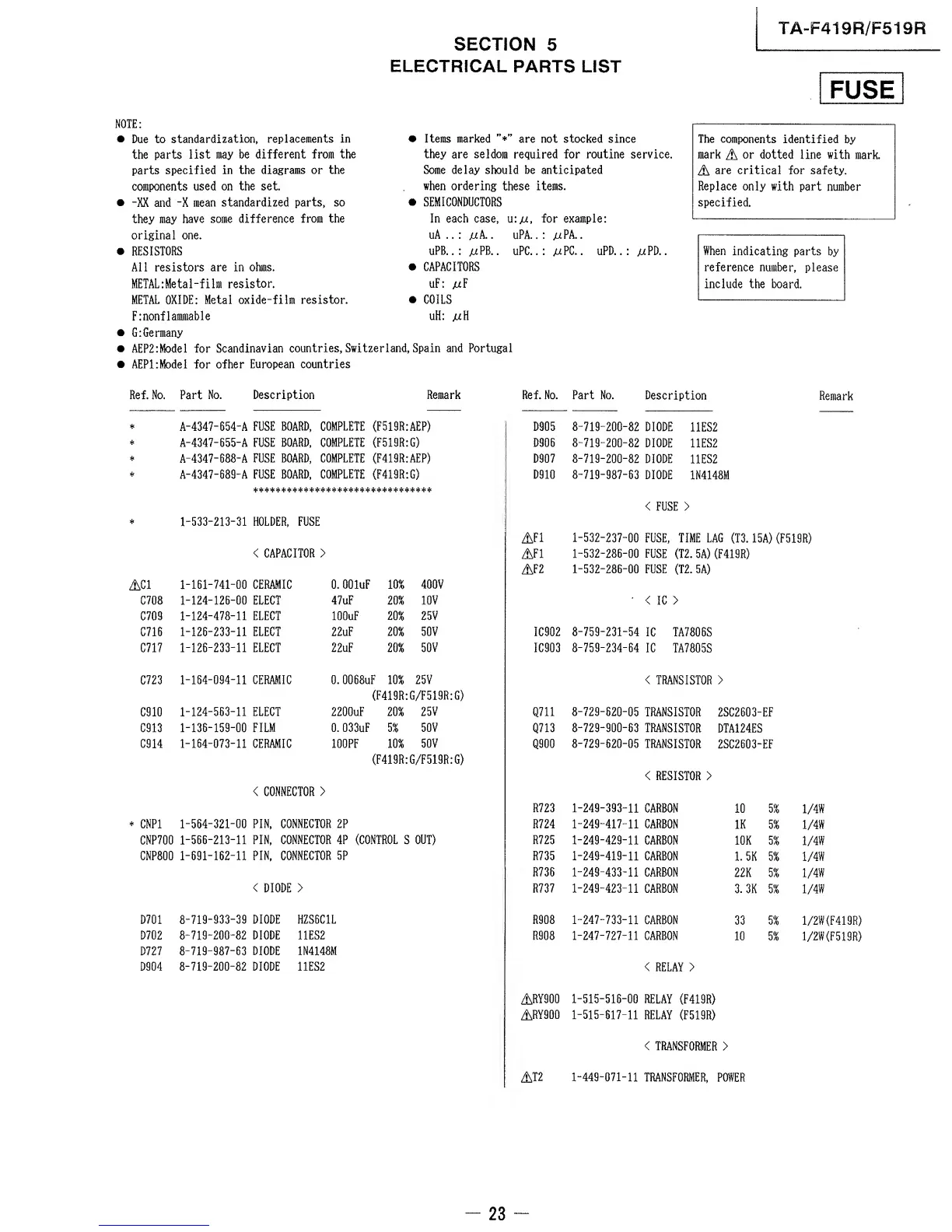

SECTION
5
ELECTRICAL
PARTS
LIST
TA-F419R/F519R
FUSE
NOTE:
Due to
standardization, replacements in
the parts list
may be different from the
parts
specified in the
diagrams
or
the
components
used on the set.
-XX
and -X
mean standardized parts, so
they
may
have some difference
from the
original one.
RESISTORS
All
resistors are in
ohms.
METAL:
Metal -film
resistor.
METAL OXIDE: Metal
oxide-film resistor.
F:
nonflammable
G: Germany
AEP2:Model
for Scandinavian
countries, Switzerland, Spain and Portugal
AEP1: Model for ofher
European
countries
Items marked
are not stocked since
they
are seldom
required for routine service.
Some delay should be anticipated
when ordering
these
items.
SEMICONDUCTORS
In each case, u:/i, for example:
uA . .
:
p.k.
.
uPA.
.
:
//PA.
.
uPB..: /iPB.
.
uPC..:
^PC..
uPD.
.
:
ju PD..
CAPACITORS
uF: //F
COILS
uH: //H
The components
identified
by
mark
A
or
dotted line with
mark.
A
are critical for safety.
Replace only
with part
number
specified.
When
indicating parts
by
reference number,
please
include the board.
Ref. No.
Part No. Description Remark
Ref. No. Part No.
Description
Remark
*
A-4347-654-A FUSE
BOARD,
COMPLETE (F519R:
AEP) D905
8-719-200-82
DIODE
11ES2
*
A-4347-655-A FUSE
BOARD, COMPLETE
(F519R:
G)
D906
8-719-200-82
DIODE
11ES2
*
A-4347-688-A
FUSE BOARD, COMPLETE
(F419R: AEP) D907
8-719-200-82
DIODE
11ES2
*
A-4347-689-A
FUSE BOARD, COMPLETE
(F419R:
G)
D910
8-719-987-63
DIODE
1N4148M
< FUSE >
*
1-533-213-31
HOLDER, FUSE
AF1
1-532-237-00
FUSE, TIME LAG (T3. 15A)
(F519R)
< CAPACITOR >
AFl
1-532-286-00
FUSE
(T2. 5A) (F419R)
AF2
1-532-286-00
FUSE (T2. 5A)
AC1
1-161-741-00
CERAMIC 0. OOluF 10%
400V
C708
1-124-126-00
ELECT 47uF 20%
10V
<
IC
>
C709
1-124-478-11
ELECT lOOuF
20%
25V
C716
1-126-233-11
ELECT
22uF
20%
50V
IC902
8-759-231-54
IC
TA7806S
C717
1-126-233-11
ELECT 22uF 20%
50V
IC903
8-759-234-64
IC TA7805S
C723
1-164-094-11
CERAMIC 0. 0068uF
10%
25V
<
TRANSISTOR
>
(F419R:G/F519R:G)
C910
1-124-563-11
ELECT 2200uF 20%
25V
Q711
8-729-620-05
TRANSISTOR
2SC2603-EF
C913
1-136-159-00
FILM
0.
033uF 5%
50V
Q713
8-729-900-63
TRANSISTOR
DTA124ES
C914
1-164-073-11
CERAMIC 100PF 10%
50V
Q900
8-729-620-05
TRANSISTOR
2SC2603-EF
(F419R:G/F519R:G)
< RESISTOR
>
< CONNECTOR >
R723
1-249-393-11
CARBON
10
5% 1/4W
*
CNP1
1-564-321-00
PIN, CONNECTOR 2P
R724
1-249-417-11
CARBON
IK
5% 1/4W
CNP700
1-566-213-11
PIN, CONNECTOR 4P (CONTROL S OUT)
R725
1-249-429-11
CARBON
10K
5%
1/4W
CNP800
1-691-162-11
PIN, CONNECTOR 5P R735
1-249-419-11
CARBON
1. 5K
5%
1/4W
R736
1-249-433-11
CARBON
22K
5% 1/4W
<
DIODE >
R737
1-249-423-11
CARBON
3.
3K
5%
1/4W
D701
8-719-933-39
DIODE HZS6C1L
R908
1-247-733-11
CARBON
33
5%
1/2W (F419R)
D702
8-719-200-82
DIODE 11ES2
R908
1-247-727-11
CARBON
10
5%
1/2W
(F519R)
D727
8-719-987-63
DIODE 1N4148M
D904
8-719-200-82
DIODE 11ES2
< RELAY >
ARY900
1-515-516-00
RELAY
(F419R)
ARY900
1-515-617-11
RELAY
(F519R)
< TRANSFORMER
>
AT2
1-449-071-11
TRANSFORMER,
POWER
-
23
