Sony F970 - Monitor Port Identification; Port Overview

5

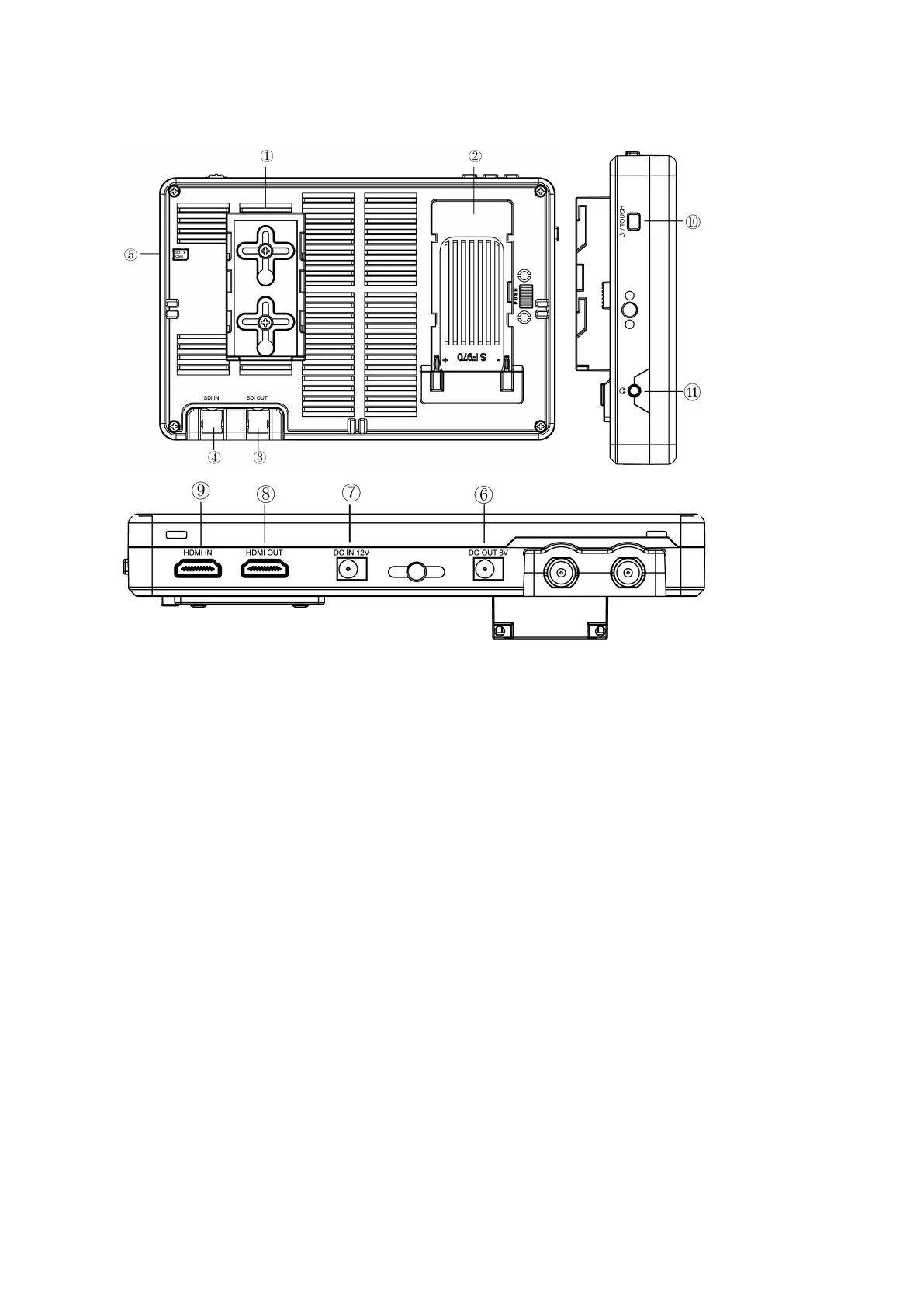

1.2 Port Instruction
①. F970 Install and Power Kit
⑦. DC 12V Power Input
②. F970 Battery Plate
⑧. HDMI OUT
③. SDI OUT (Optional)
⑨. HDMI IN
④. SDI IN (Optional)
⑤. SD Card Slot
3DLUT upload via SD card and for
firmware upgrade
⑩. Power / Touch Function Button
Long press to turn on / off; short press to
turn on / off the screen touch function.
⑪.3.5mm Headphone Jack
⑥. DC OUT 8V Power Output
Connect the optional dummy battery
cable to power camera.
