55
Specifications
FCB-EH3400/EH3300(GB) A-E4D-100-13(1)

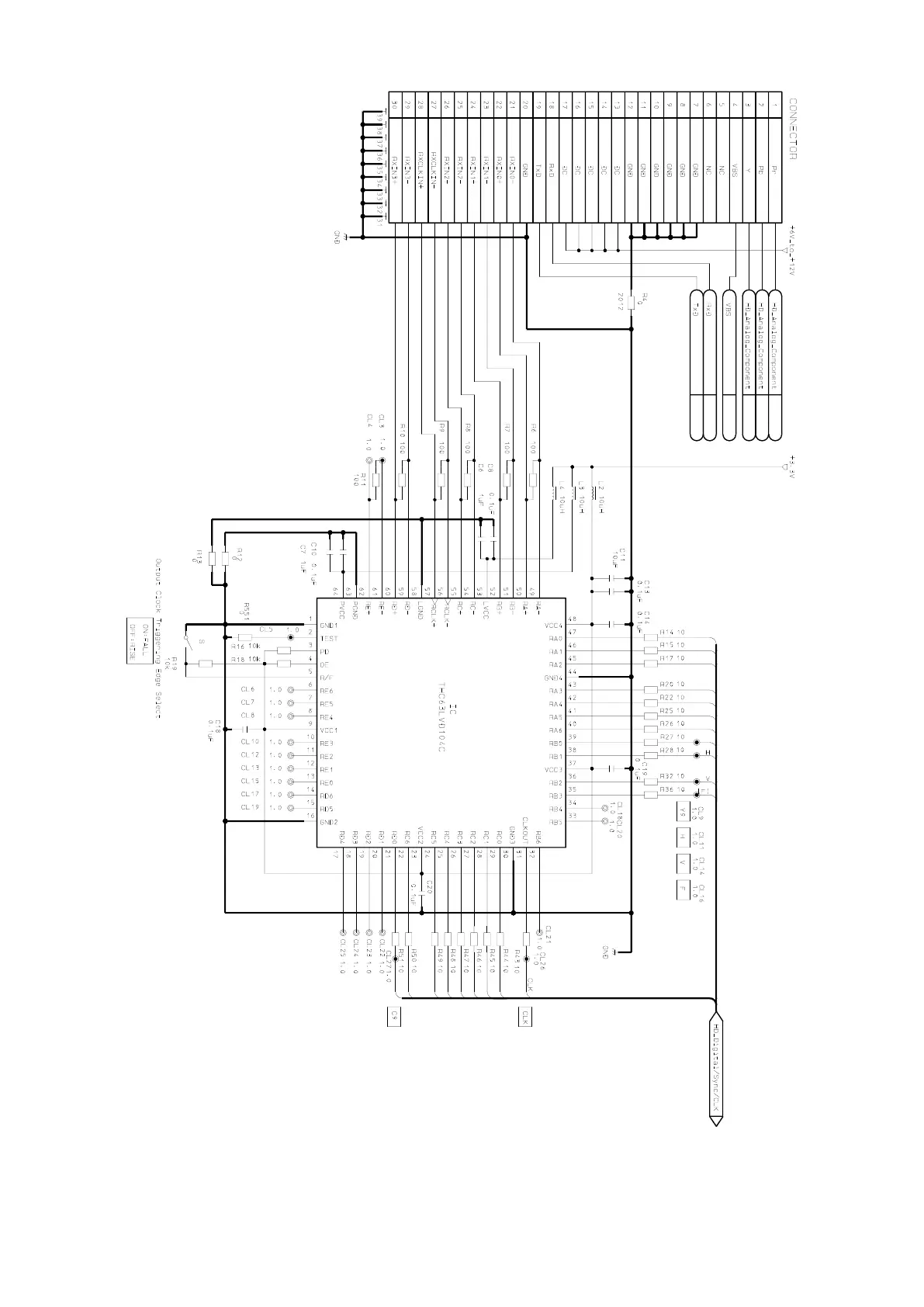

LVDS receiver circuit example
• When using the circuit example, use 1-N crossover cables. (The pin numbers of the unit are reversed in the circuit
example.)
• SW selects whether to input at the rising edge or falling edge of the signal.
