Sony FCB-EH3300 - Pin Assignment; FCB-EH3400;EH3410 Connector Pins; FCB-EH3300;EH3310 Connector Pins

64
Specifications
FCB-EH3400/EH3300(GB) A-E4D-100-13(1)

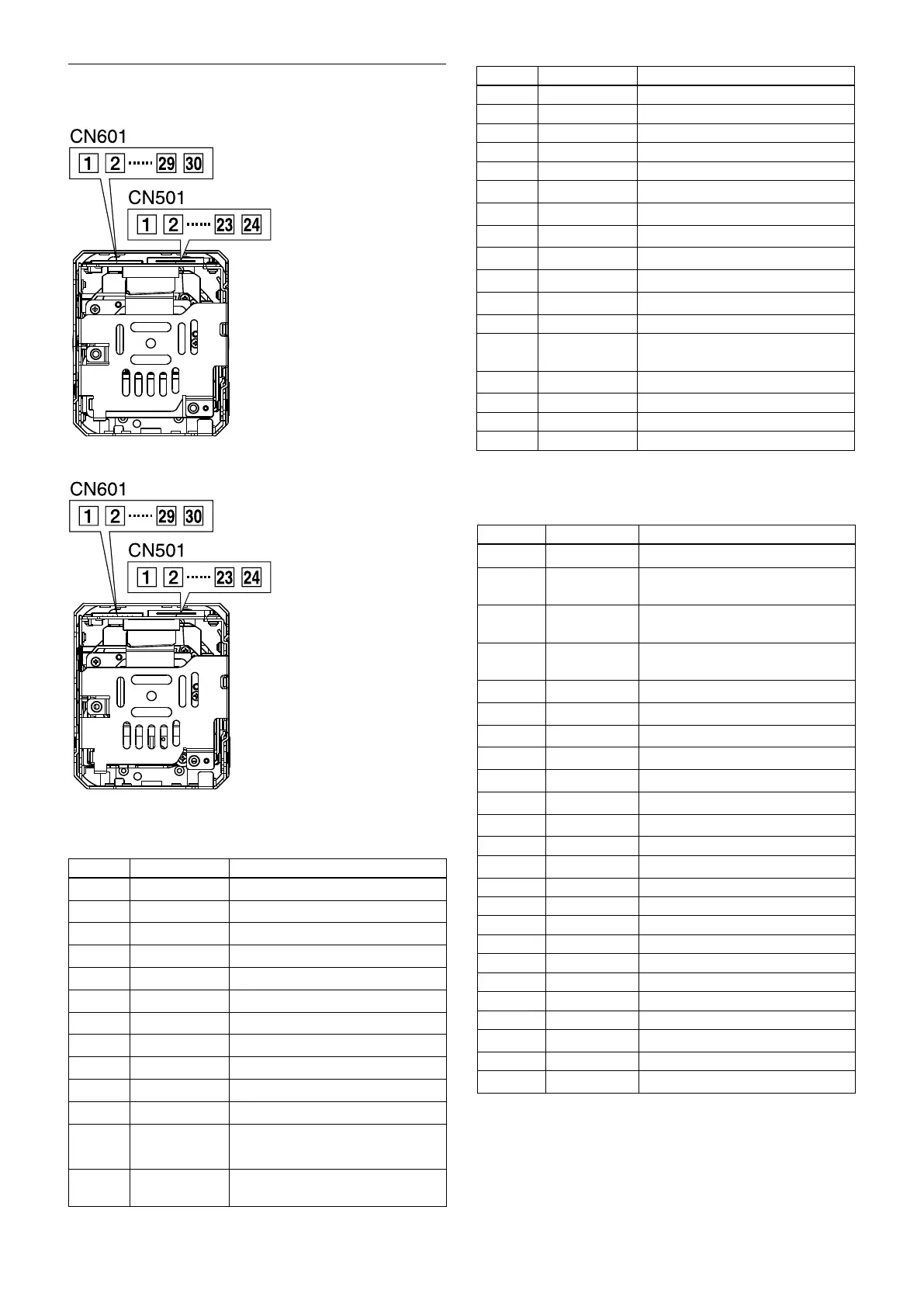

Pin assignment
FCB-EH3400/EH3410
FCB-EH3300/EH3310
CN601
KEL Cop. USL00-30L-C
Pin No. Name Level
1 TXOUT3+
2 TXOUT3−
3 TXCLKOUT+
4 TXCLKOUT−
5 TXOUT2+
6 TXOUT2−
7 TXOUT1+
8 TXOUT1−
9 TXOUT0+
10 TXOUT0−
11 GND
12 TxD
CMOS 5 V (Low: Max 0.1 V,
High: min 4.4 V)
13 RxD CMOS 5 V (Low: MAX 0.8 V,
High: min 2.0 V)
CN501
Kyocera-elco 046240024006800+
Pin No. Name Level
1 GND
2 TxD CMOS 5 V
(Low: Max 0.1 V, High: min 4.4 V)
3 RxD CMOS 5 V
(Low: MAX 0.8 V, High: min 2.0 V)
4 RESET Reset: Low (GND), Normal:
Open (1.8V)
5 GND
6 NC
7 GND
8 NC
9 GND
10 VBS-OUT
11 GND
12 Y-OUT HD Analog Component
13 GND
14 Pb-OUT HD Analog Component
15 GND
16 Pr-OUT HD Analog Component
17 GND
18 Power 6 to 12 V DC
19 Power 6 to 12 V DC
20 Power 6 to 12 V DC
21 Power 6 to 12 V DC
22 GND
23 Power 6 to 12 V DC
24 GND
Pin No. Name Level
14 DC IN 6 to 12 V DC
15 DC IN 6 to 12 V DC
16 DC IN 6 to 12 V DC
17 DC IN 6 to 12 V DC
18 DC IN 6 to 12 V DC
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 NC
26
RESET Reset: Low (GND), Normal:
Open (1.8V)
27 VBS-OUT
28 Y HD Analog Component
29 Pb HD Analog Component
30 Pr HD Analog Component
