Sony FCB-EX1020 - Digital Output and Timing

59
Specifications
Digital Output Function
Slow shutter is not available in the Interlace WD or Progressive WD mode.

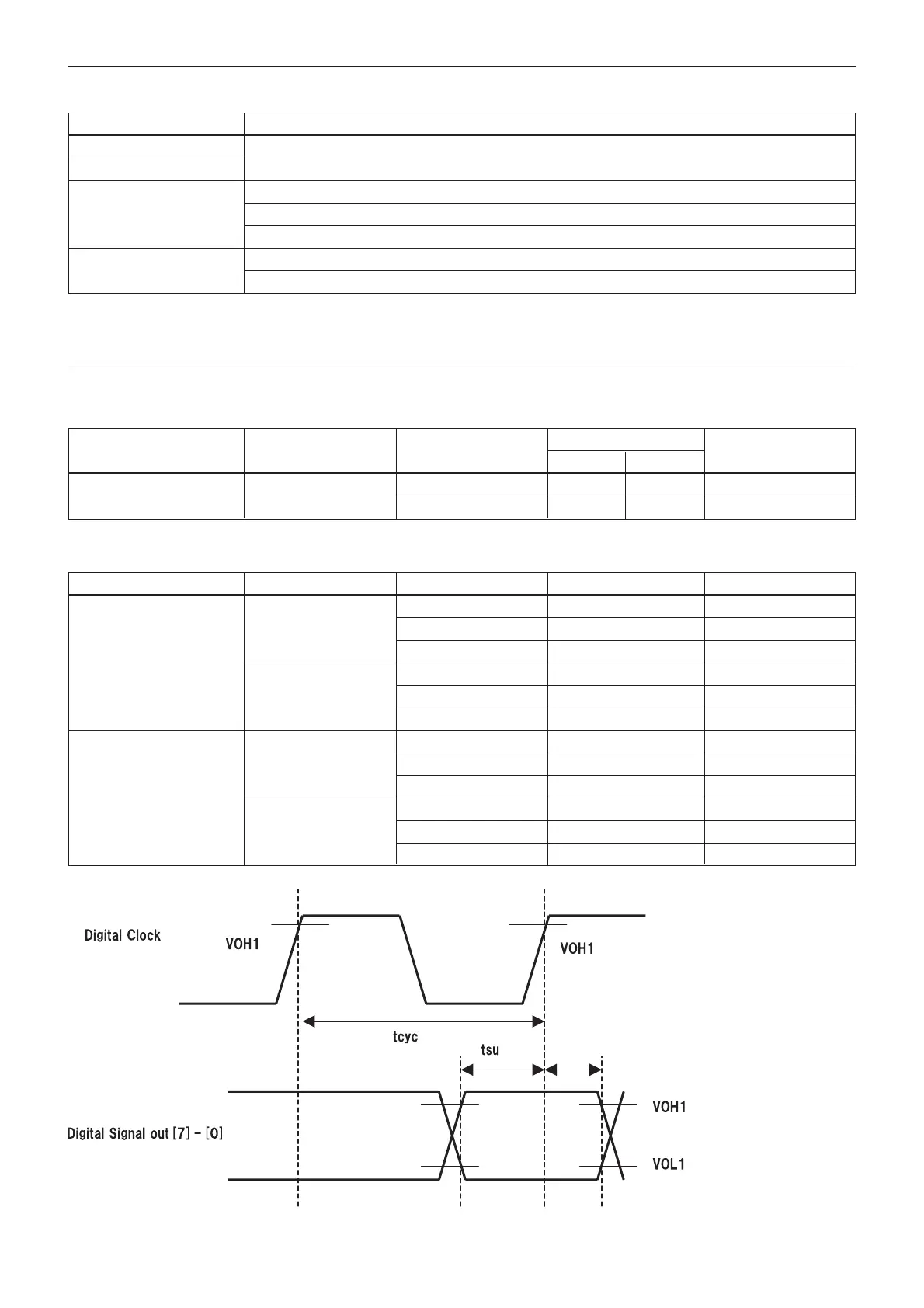

Digital Output Characteristics
DC characteristics
Operation Mode Digital Output (ITU-R BT656 equiv.)
Interlace FCB-EX1020/P: 60i/50i, clock rate: 28 MHz
Interlace WD
Progressive FCB-EX1020/P: 60p/50p, clock rate: 56 MHz
FCB-EX1020/P: 60p/50p (30p/25p × 2), clock rate: 56 MHz
FCB-EX1020/P: 30p/25p, clock rate: 28 MHz
Progressive WD FCB-EX1020/P: 60p/50p (30p/25p × 2), clock rate: 56 MHz
FCB-EX1020/P: 30p/25p, clock rate: 28 MHz
ITEM SIGN Rating Value UNIT
MIN MAX
Output voltage Digtal Signal out [7] - [0] VOH1 2.58 V
Digital Clock
VOL1 0.4 V
AC characteristics
MODEL MODE ITEM SIGN Typ
FCB-EX1020 (NTSC) Interlace Clock cycle period tcyc (ns) 35.2
Data output setup time tsu (ns) 13.5
Data output hold time thd (ns) 18.5
Progressive Clock cycle period tcyc (ns) 17.6
Data output setup time tsu (ns) 12.5
Data output hold time thd (ns) 2.5
FCB-EX1020P (PAL) Interlace Clock cycle period tcyc (ns) 35.2
Data output setup time tsu (ns) 14.6
Data output hold time thd (ns) 18.5
Progressive Clock cycle period tcyc (ns) 17.4
Data output setup time tsu (ns) 5.5
Data output hold time thd (ns) 9.5
