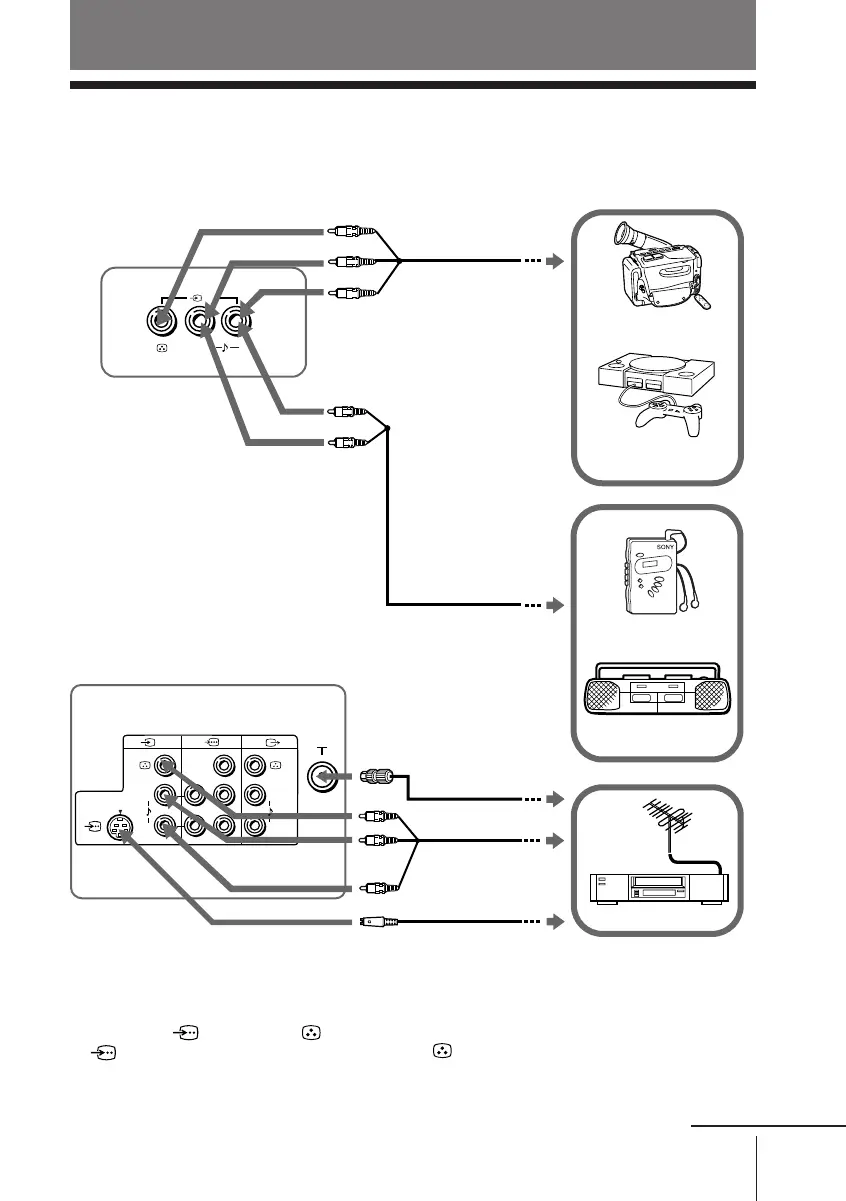

x Connecting optional components
Connecting to the video input terminal ( t )
Additional Information
TV front panel
Video game
equipment
L
R
R
2
(MONO) (MONO)
L
1
L
Y
C
B
(MONO)
R
C
R
Audio/Video cable
(not supplied)
S Video cable
(not supplied)
Antenna cable
(not supplied)
VCR
TV rear panel
Audio/Video cable
(not supplied)
Camcorder
Notes
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 21).
• When both (S video) and (video) for t 1 are connected at the same time,
(S video) is automatically selected. To view (video), disconnect the S video cable.
Walkman
Radio
Audio cable
(not supplied)
