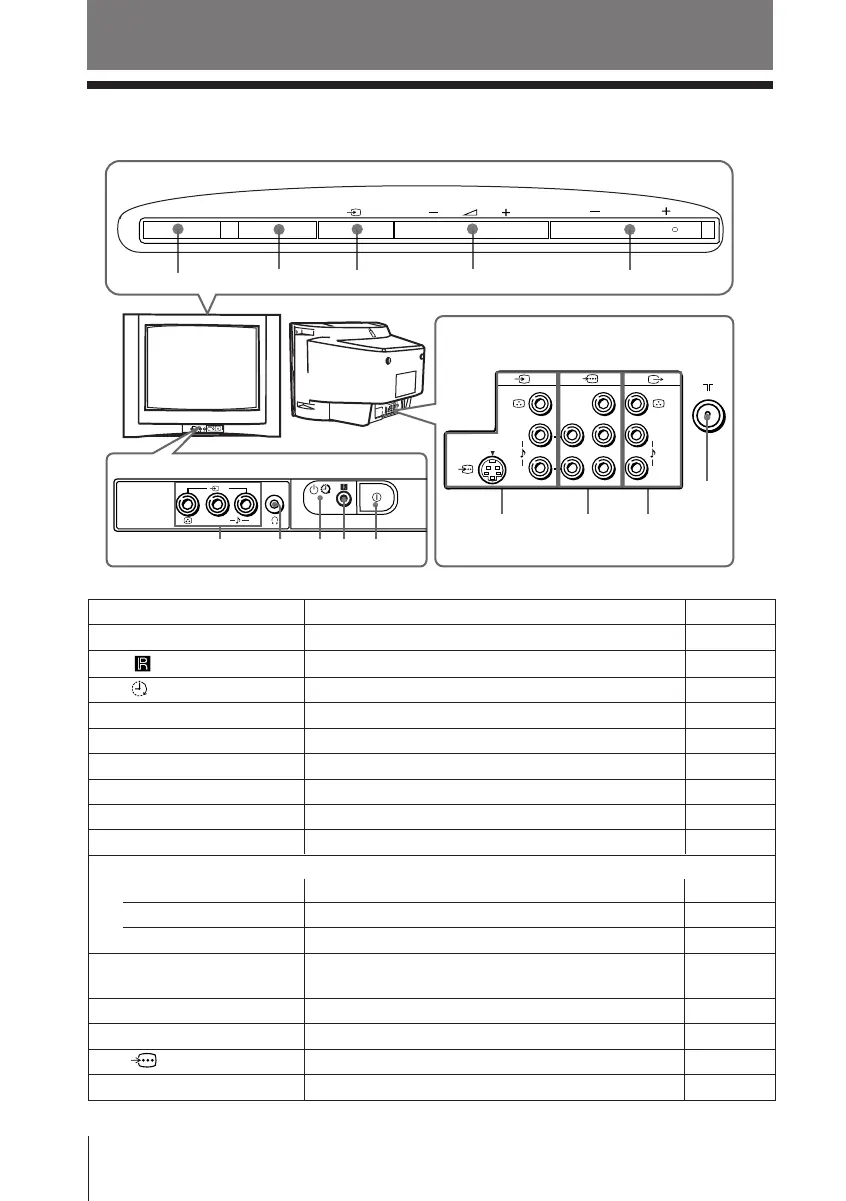

TV front panel
TV rear panel
x TV top control, front and rear panels
TV top control panel
Button/Terminal Function Page
1 ! Turn off or turn on the TV. 6
2 Remote control sensor. –
3 Wake Up indicator. 19
3 1 Standby indicator. 6
4 i Headphone jack. –
5 t2Video input terminal 2. 23
6 PROG +/– Select program number. –
7 2 +/– Adjust volume. –
8 t Select TV or video input. 23
Menu operations
7 2 +/– Select and adjust items. –
8 t Confirm selected items. –
9 MENU Display or cancel the menu. –
0 SOUND MODE Select sound mode options with a 5-Band 11
Graphic Equalizer display.
qa 8 Antenna input terminal. 23
qs T Monitor output terminal. 24
qd Component video input terminal. 24
qf t1Video input terminal 1. 23
