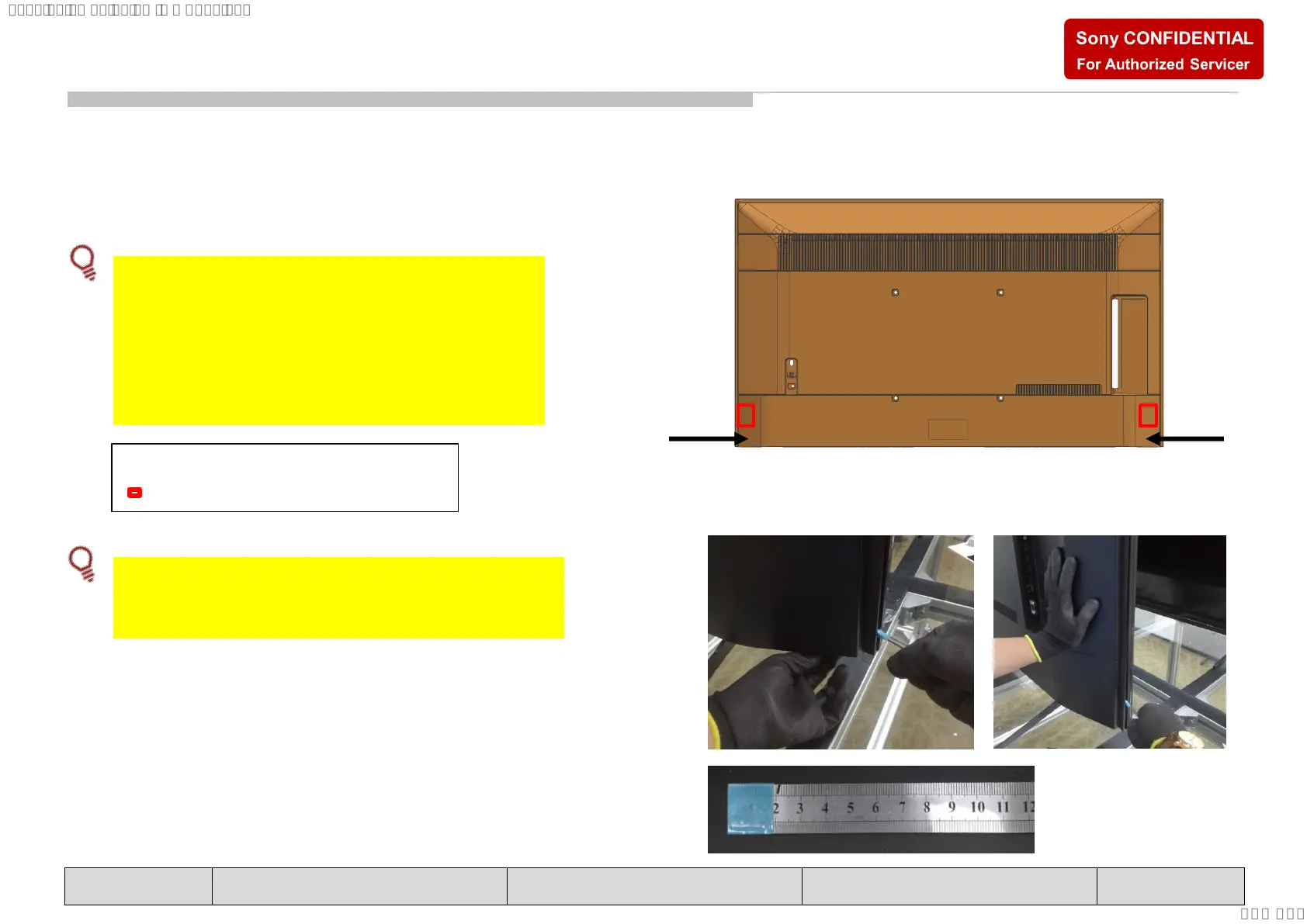

3. Unhook corner Rear Cover-Back Chassis hook.
When releasing outer most hook, pull the Rear
Cover corner and insert jig and unhook Rear
Cover-Back Chassis hook.
Ensure that the jig is pulled towards
servicemen. (Do NOT pivot on bezel)
Ruler or jig to release corner hook
*Wrap ruler with tape to prevent scratch on Al bezel
*Thickness of ruler approximately 1.2mm
Legend
=Back Chassis-Rear Cover Hook
