Rear Cover
36

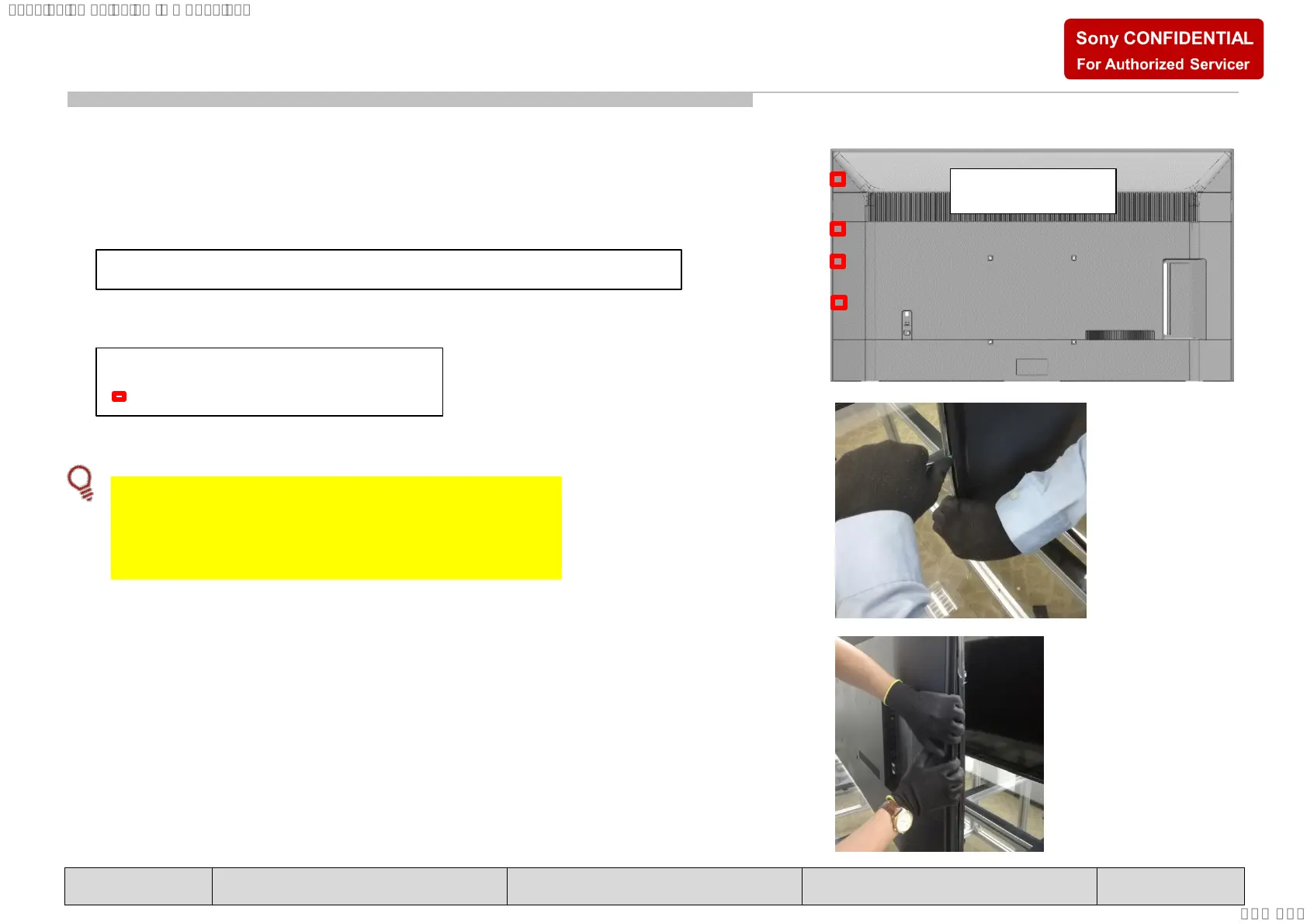

4. Unhook left side Rear Cover-Back Chassis hook.
 Grip Rear Cover with hand and unhook RC-BC
hook using ruler/jig.
 Flex the Rear Cover outwards to unhook
Total Back Chassis-Rear Cover Hooks (Left Side) : 4 hooks
Legend
=Back Chassis-Rear Cover Hook
