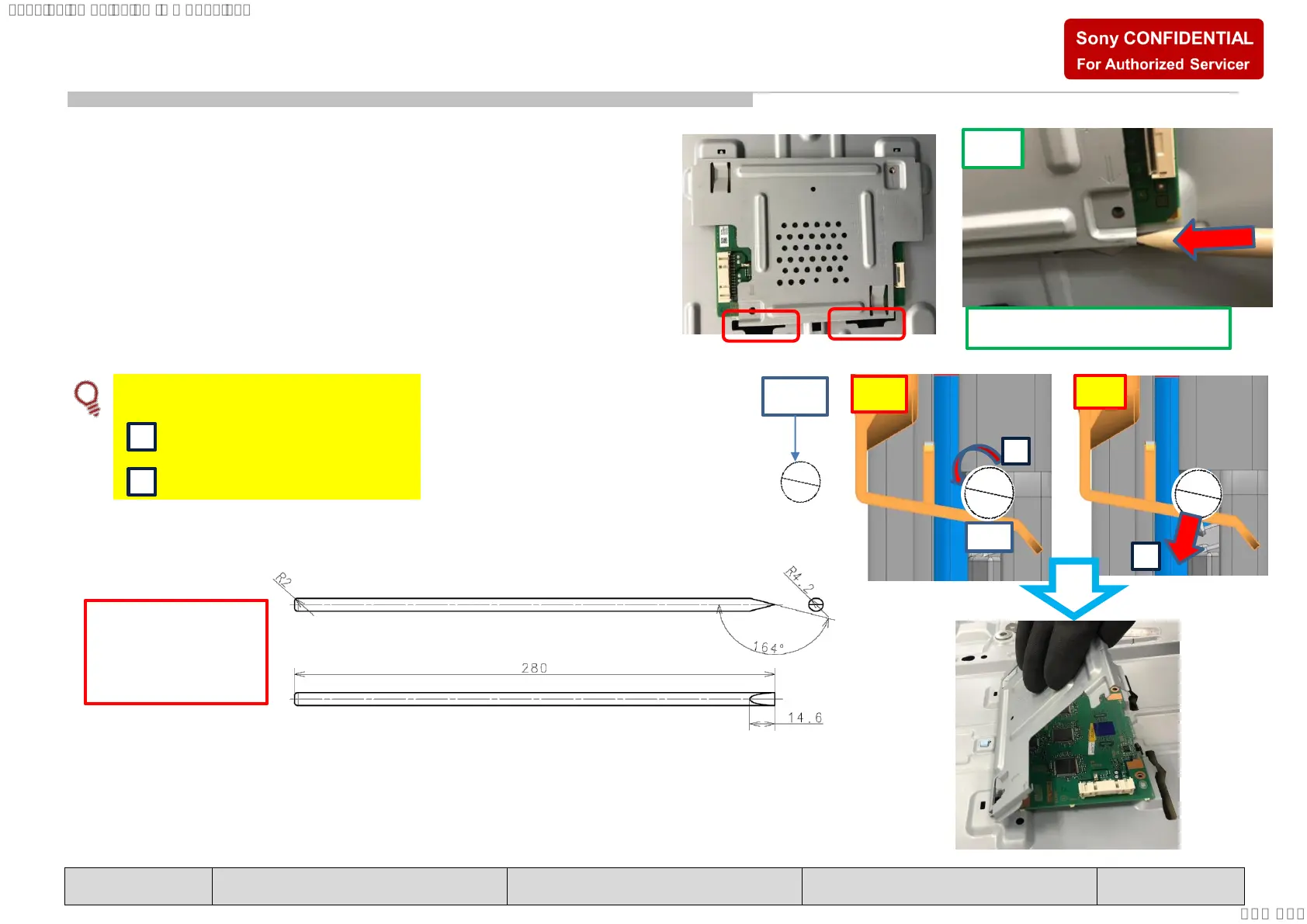

2-1. DISSEMBLE SHIELD LD METHOD
OK
1. Push Jig in follow arrow direction until hook pop out.
Mirror method on left hook.
Jig tip
2. Once bottom hook release, please remove the Shield LD.
Caution: Prohibition operation
Don't turn the jip tip
Don't apply force to out side
Jig
NG
1
NG
2
1
2
Push inside straight
Suggestion jig
dimension
Material suggestion:
POM
