2-1. ASSEMBLE SHIELD LD METHOD

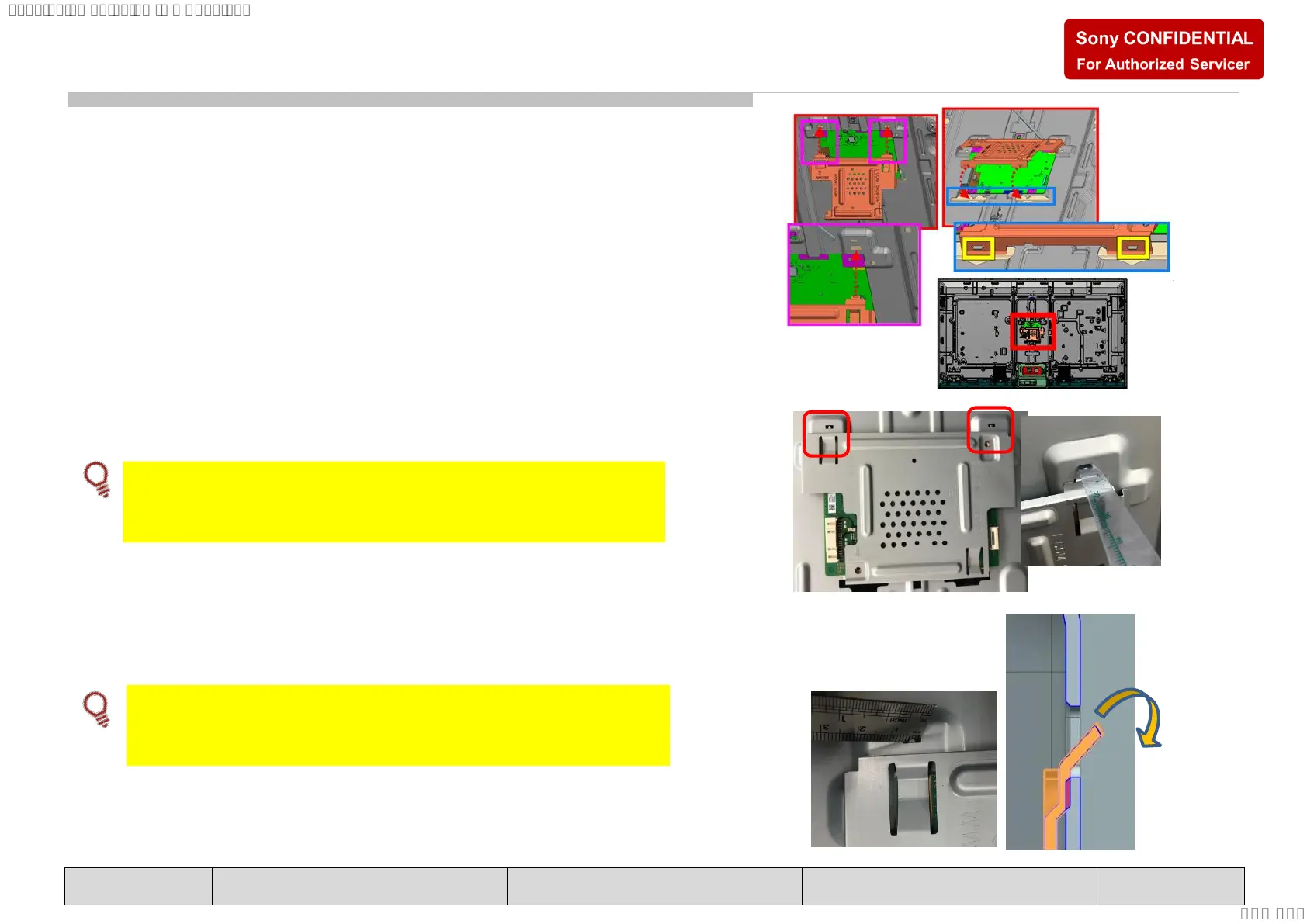

1. Please refer method to assy LD shield as shown on the right side.
2. Once bottom hook release, please remove the Shield LD.
3. Push top hook for better fitting.
Caution Point :
Please use 1.5 mm thickness gauge, if can go in then ok. If
cannot, then please follow next step
Caution Point :
IF gap is less than 1.5 mm, please bend the top hook using
ruler until can get 1.5 mm gap or more.
