Rear Cover
8

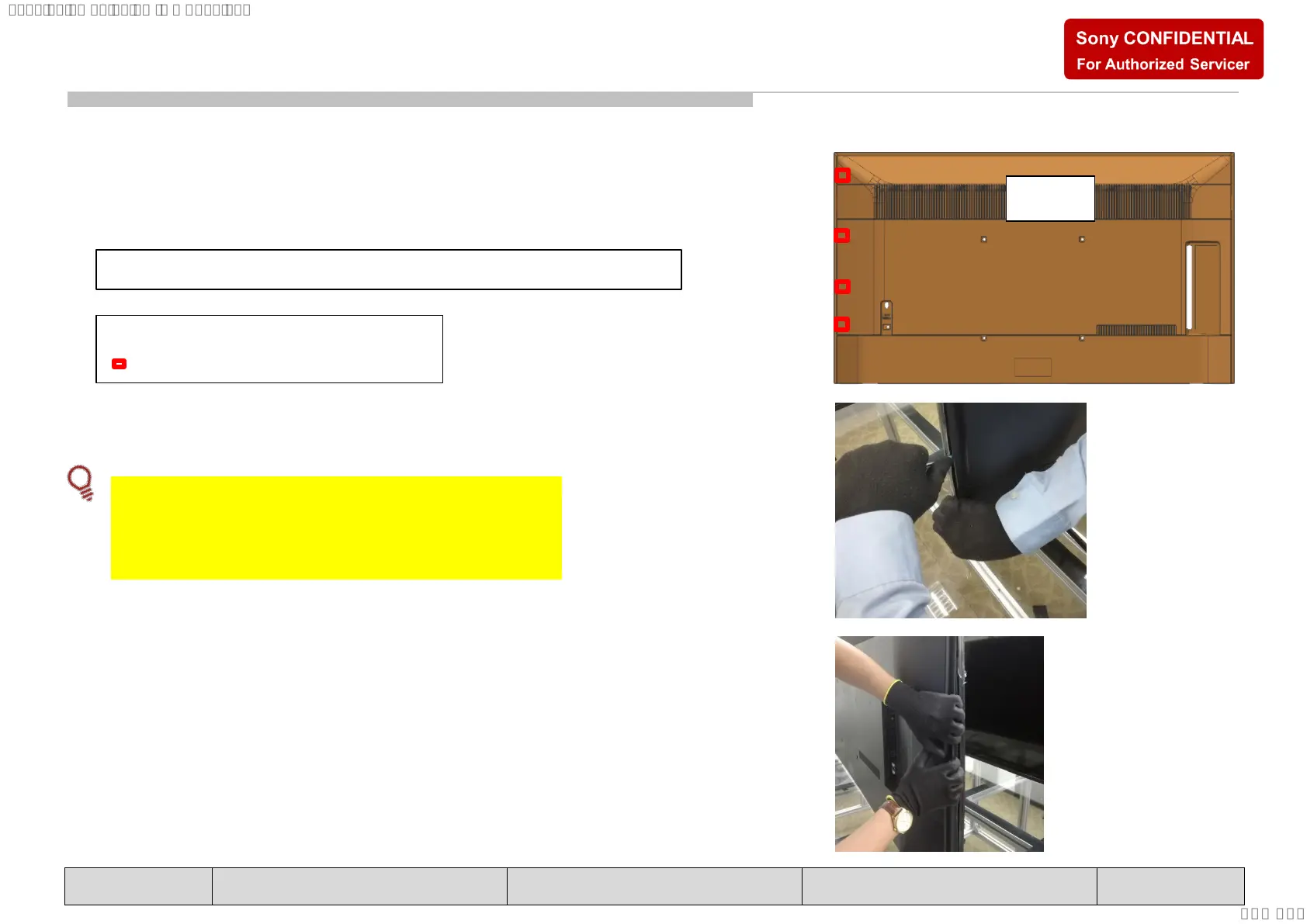

4. Unhook left side Rear Cover-Back Chassis hook.
 Grip Rear Cover with hand and unhook Rear
Cover-Back Chassis hook using ruler/jig.
 Flex the Rear Cover outwards to unhook
55”
Total Back Chassis-Rear Cover Hooks (Left Side) = 4 hooks
Legend
=Back Chassis-Rear Cover Hook
