Rear Cover
SECTION 1
XBR-55X9*H
9

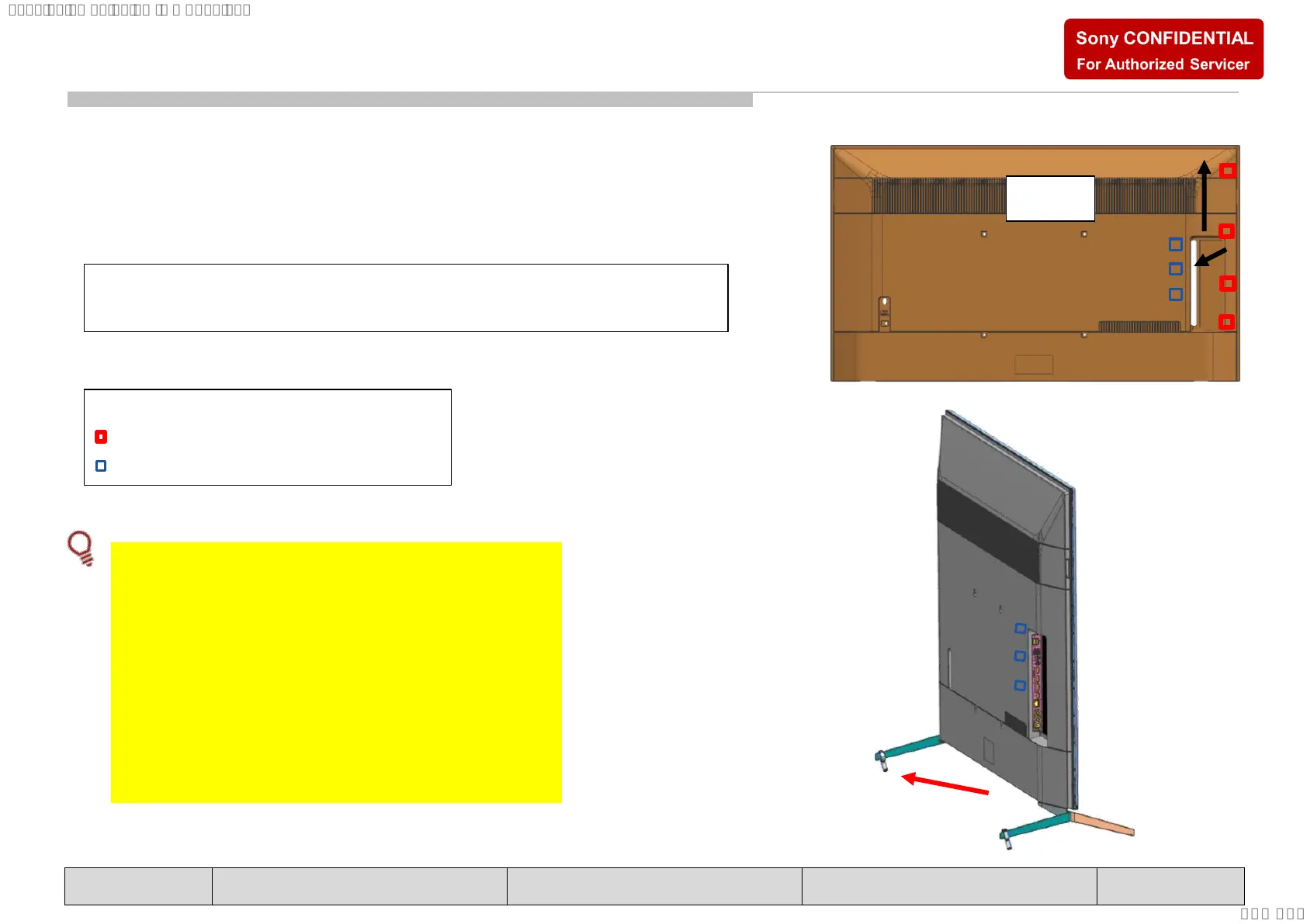

5. Release Side Jack Bracket hook & unhook right side Rear Cover-
Back Chassis hook.
Unhook Rear Cover-Back Chassis hooks close
to Side Jack Bracket area.
Pull Rear Cover to release hook while
supporting the set with hand.
To confirm hook is released, Side Jack Bracket
area should be floating.
Proceed to unhook remaining Rear Cover-
Back Chassis hooks using step 4.
Total Side Jack Bracket hooks : 3 hooks.
Total Back Chassis-Rear Cover Hooks (Right Side) : 4 hooks
SECTION 1 SECTION 2 SECTION 3 SMART CORE
Legend
=Back Chassis – Rear Cover Hook
=Side Jack Bracket Hook
1-1. DISASSEMBLY AND REMOVAL CAUTION
55”
