SMART CORE
SMART CORE STRUCTURE

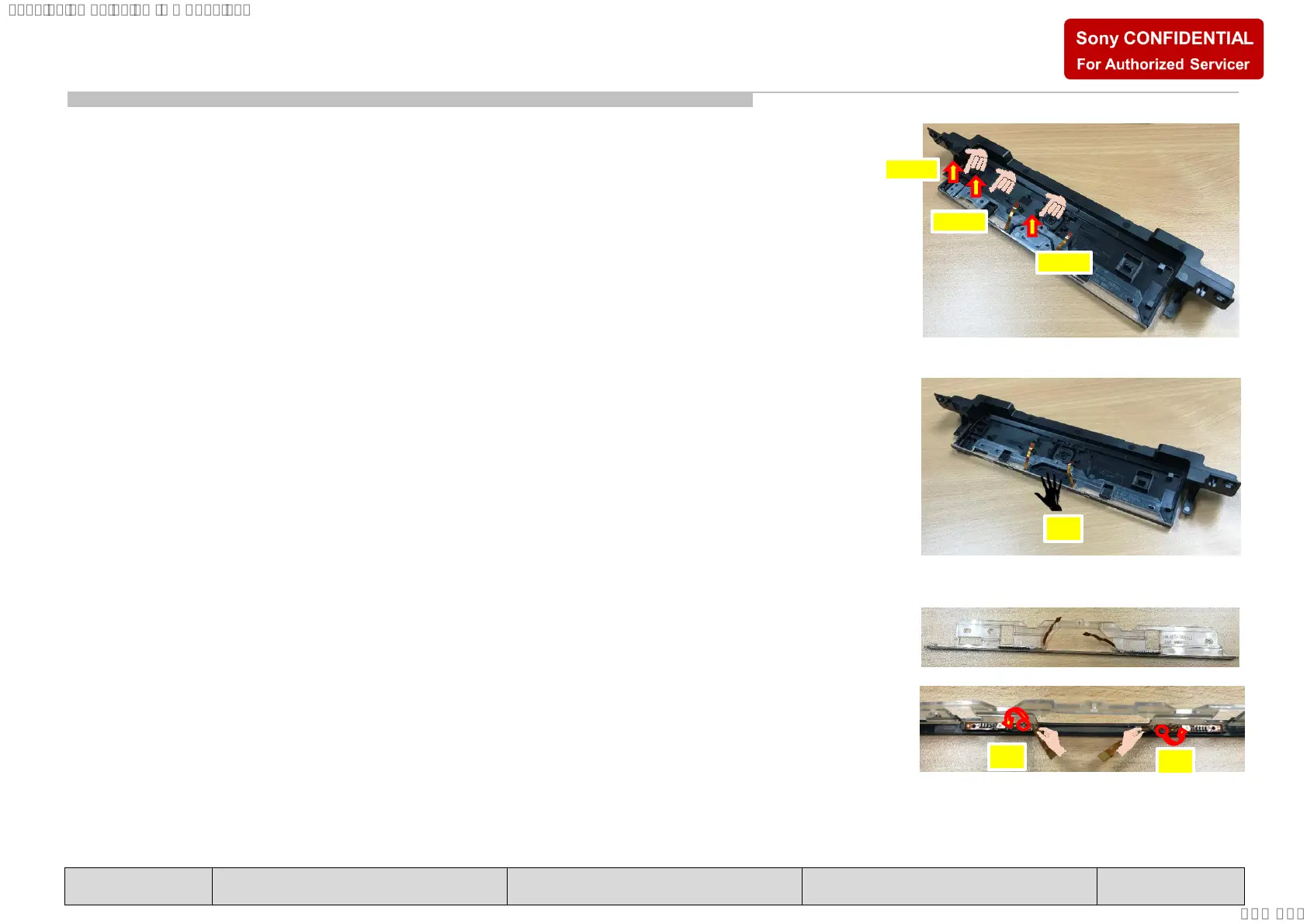

4. Disassemble LIGHT GUIDE OPT & ILM
a. Pick up LIGHT GUIDE LED
b. Pick up LIGHT GUIDE OPT
c. Pickup LIGHT GUIDE ILM
5. Disassemble OP INNER
Pick up OP INNER
6. Disassemble MIC
Pick up MIC and remove the hook in front of you
4a
4c
4b
5
6
6
