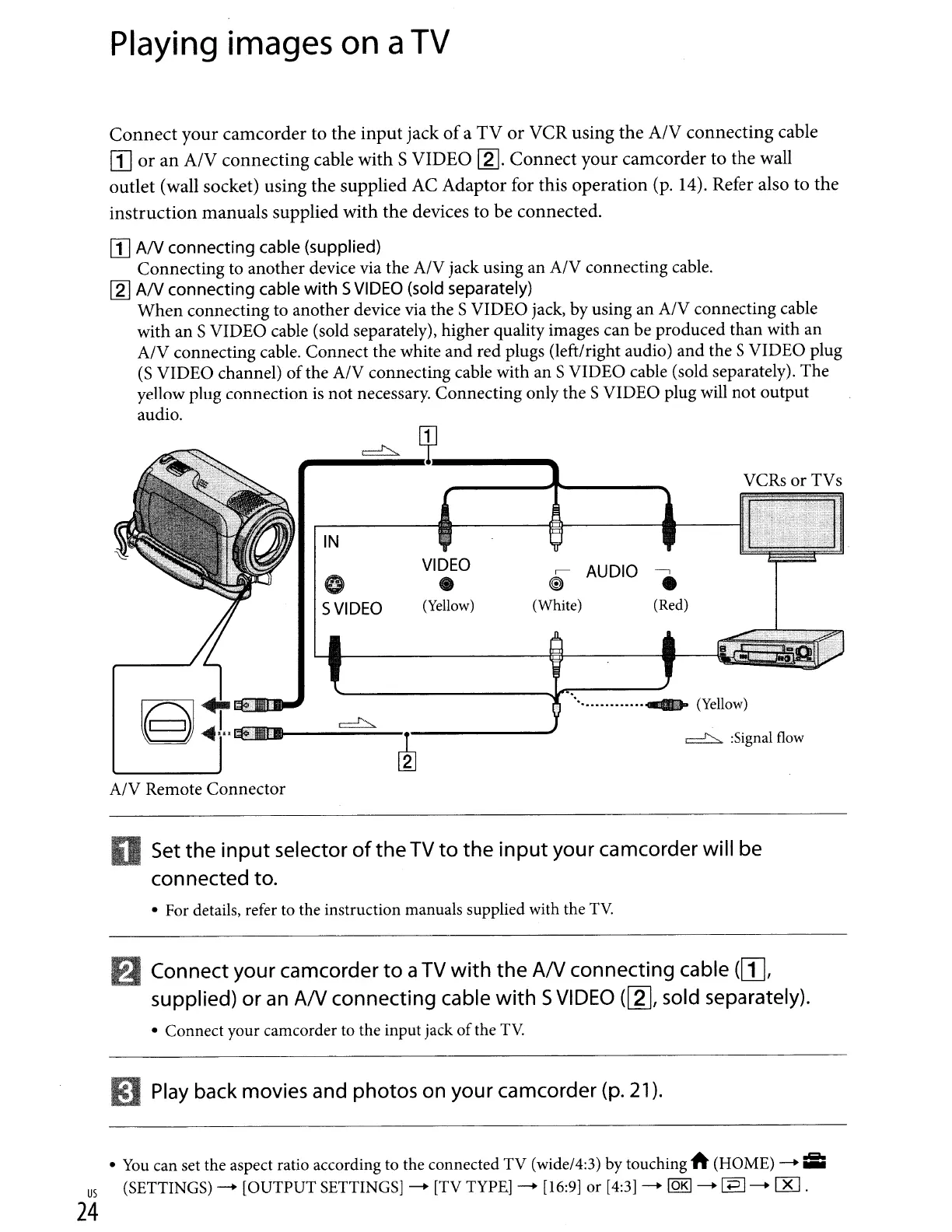

Playing
images
on
a
TV
Connect
your
camcorder
to
the
input
jack
of
a
TV
or
VCR
using
the
A/V
connecting
cable
[j]
or
an
A/V
connecting
cable
with
S
VIDEO
[2].
Connect
your
camcorder
to
the
wall
outlet
(wall socket)
using
the
supplied
AC
Adaptor
for
this
operation
(p. 14). Refer also to
the
instruction
manuals
supplied
with
the
devices to
be
connected.
[j]
AN
connecting cable (supplied)
Connecting to another device via the A/V jack using an A/V connecting cable.
[2J
AN
connecting cable
with
S
VIDEO
(sold separately)
When
connecting to another device via the S VIDEO jack, by using an A/V connecting cable
with an
S VIDEO cable (sold separately), higher quality images can be produced
than
with an
A/V
connecting cable. Connect the white
and
red plugs (left/right audio)
and
the SVIDEO plug
(S
VIDEO channel)
of
the A/V connecting cable with an S VIDEO cable (sold separately). The
yellow plug connection
is
not necessary. Connecting only
the
SVIDEO plug will
not
output
audio.
~
~----~
....................
(Yellow)
VCRs
or
TVs
-,
•
(Red)
~
:Signal
flow
tf.:
AUDIO
@,
(White)
VIDEO
•
(Yellow)
IN
e
SVIDEO
A/V Remote Connector
o
Set
the
input
selector
of
the
TV
to
the
input
your camcorder will be
connected to.
• For details, refer
to
the instruction manuals supplied with the
TV
Connect your camcorder
to
a
TV
with
the
AN
connecting cable
(W,
supplied) or
an
AN
connecting cable
with
S
VIDEO
([2], sold separately).
• Connect your camcorder
to
the input jack ofthe
TV
m
Play
back movies and photos on your camcorder
(p.
21).
us
24
•
You
can set the aspect ratio according to the connected
TV
(wide/4:3)
by
touching
ft
(HOME) -
iii
(SETTINGS) -
[OUTPUT
SETTINGS] - [TV TYPE] - [16:9] or
[4:3]
-
IQR]
- IP
I-
[K]
.
