8
Table of Contents Useful Recording Techniques Index

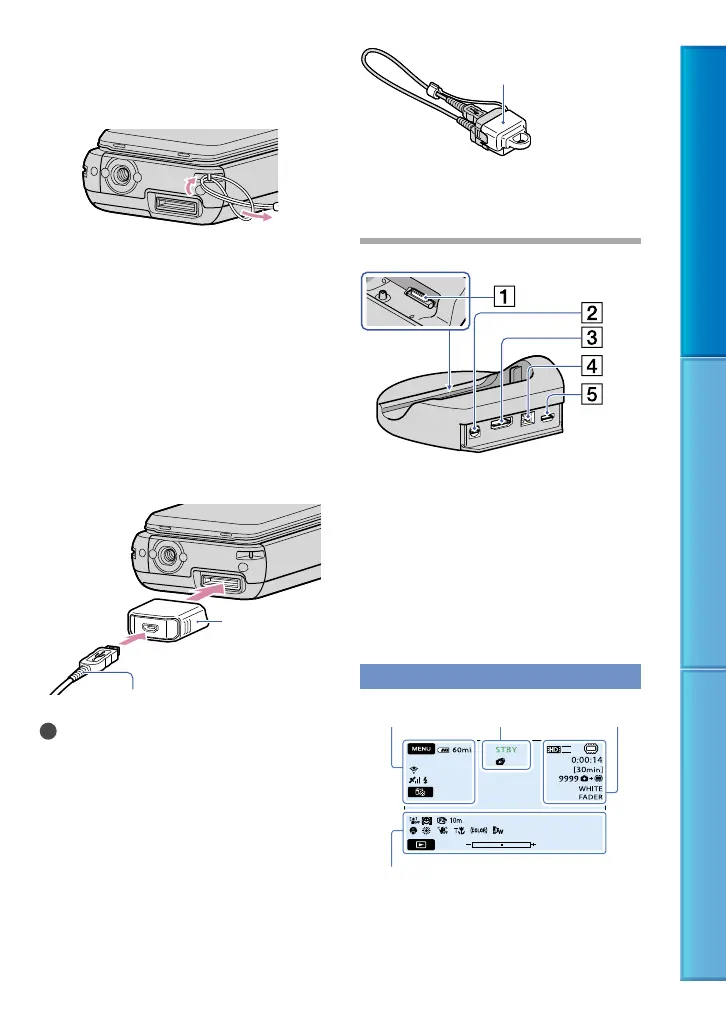

Hook for wrist strap
Attach the strap (supplied) and place your
hand through the loop to prevent the
camcorder from damage by being dropped.
Tripod receptacle
Attach a tripod (sold separately) to the
tripod receptacle using a tripod screw (sold
separately: the length of the screw must be less
than 5.5 mm (7/32 in.)).
Interface connector
Connects your camcorder to the “Handycam”
Station Cradle or the Dedicated USB Terminal
Adaptor.
By attaching the Dedicated USB Terminal
Adaptor, you can connect the USB cable
to your camcorder without using the
“Handycam” Station Cradle.
Notes
Depending on when or where you use the
camcorder, attach the Dedicated USB Terminal
Adaptor to either the long or the short cable.
Be careful not to hang or give strong impact
to the adaptor or the cable. It may become
damaged.
Attach the USB adaptor cap on the USB cable
when carrying it in bags, etc.
“Handycam” Station Cradle
Interface connector
Connect to the interface connector on your
camcorder when you attach your camcorder
to the “Handycam” Station Cradle.
A/V OUT jack (43, 60)
HDMI OUT jack (44)
DC IN jack (18)
(USB) jack (59)
Screen indicators
Dedicated USB
Terminal
Adaptor
USB cable
USB adaptor cap
Upper left Center Upper right
Bottom
