HCD-DZ230/DZ231/HDZ235
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-889-990-01 KNOB (VOL)
52 2-889-982-01 WINDOW, INDICATION (INJ) (DZ230)
52 2-889-982-21 WINDOW, INDICATION (INJ) (HDZ235)
52 2-889-982-51 WINDOW, INDICATION (INJ) (DZ231)
53 2-898-988-01 SHEET (DS WINDOW), ADHESIVE
54 2-889-981-01 PANEL, FRONT (AIO) (DZ230: AEP)
54 2-889-981-11 PANEL, FRONT (AIO) (DZ230: UK)
54 2-889-981-41 PANEL, FRONT (AIO) (HDZ235)
54 2-889-981-51 PANEL, FRONT (AIO) (DZ231: AEP)
54 2-889-981-61 PANEL, FRONT (AIO) (DZ231: UK)
55 2-889-992-01 FILTER, COLOR
56 2-889-983-01 BUTTON (AIO)
57 3-087-053-11 +BVTP2.6 (3CR)
58 A-1218-017-A JACK BOARD, COMPLETE
59 1-828-325-51 WIRE (FLAT TYPE)(13 CORE)
60 A-1218-015-A FL BOARD, COMPLETE
61 1-828-374-51 WIRE (FLAT TYPE)(21 CORE)
62 3-531-576-01 RIVET

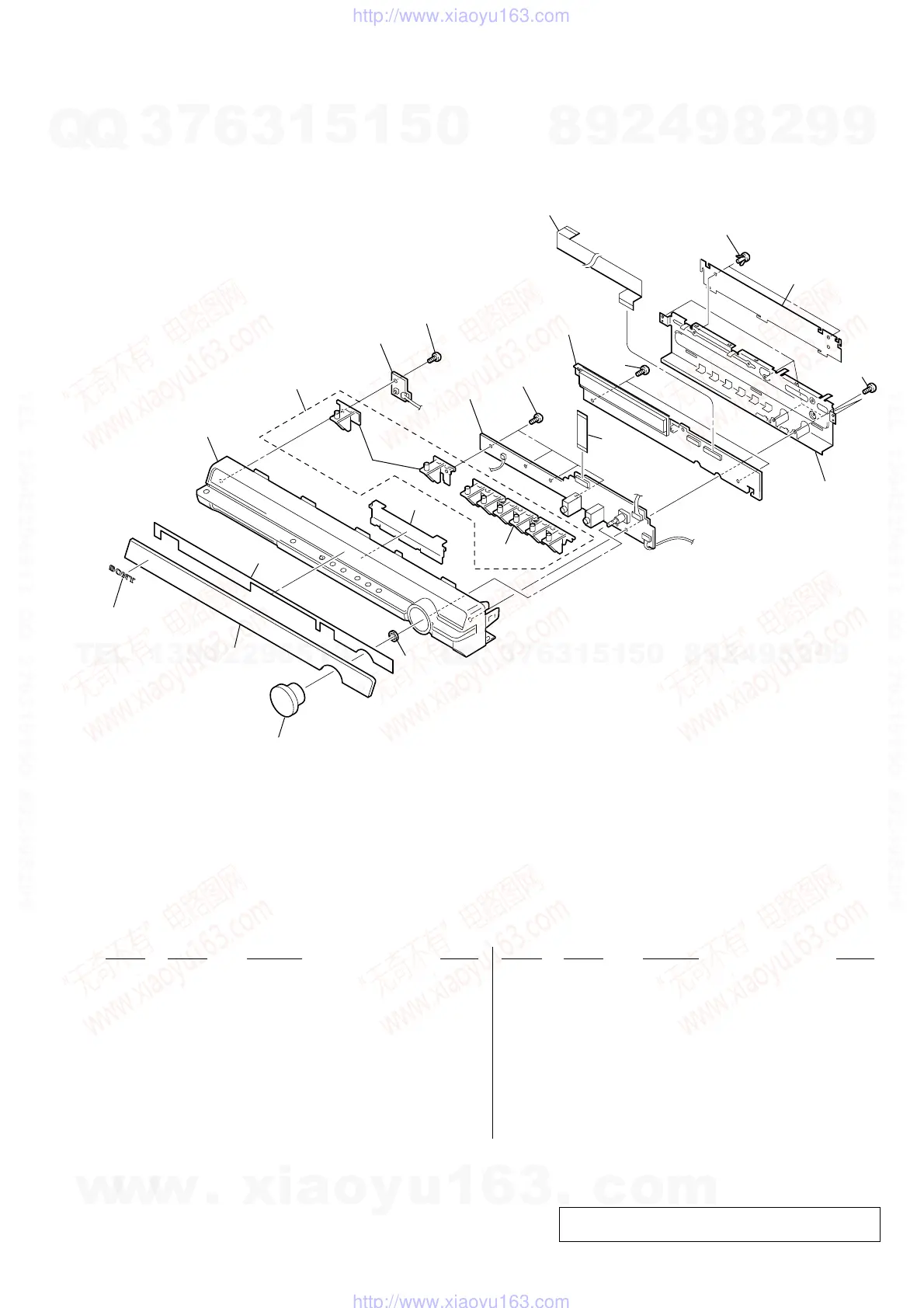

7-2. FRONT PANEL SECTION
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
57
57
60
58
56
52
53
55
51
not
supplied
not
supplied
not
supplied
including
S800
54
not
supplied
not
supplied
57
57
59
61
not
supplied
62
