HCD-DZ230/DZ231/HDZ235
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-21 +BV3 (3-CR)
102 1-828-292-51 WIRE (FLAT TYPE)(5 CORE)
103 1-828-339-51 WIRE (FLAT TYPE)(15 CORE) (HDZ235)
103 1-828-369-51 WIRE (FLAT TYPE)(21 CORE) (DZ230/DZ231)
104 1-828-317-51 WIRE (FLAT TYPE)(11 CORE) (HDZ235)
104 1-828-327-51 WIRE (FLAT TYPE)(13 CORE) (DZ230/DZ231)
105 3-077-331-11 +BV3 (3-CR)
106 2-597-972-41 SHEET, RADIATION (HDZ235)
106 3-100-158-11 SHEET, RADIATION (DZ230/DZ231)
107 2-597-972-61 SHEET, RADIATION (HDZ235)
107 3-100-158-21 SHEET, RADIATION (DZ230/DZ231)
9 108 A-1242-239-A MAIN BOARD, COMPLETE (AEP)
9 108 A-1242-240-A MAIN BOARD, COMPLETE (UK)
9 108 A-1242-726-A MAIN BOARD, COMPLETE (HDZ235)
109 1-787-331-11 FAN, D.C.
0 110 1-751-520-31 CORD, POWER (UK)
0 110 1-830-188-11 CORD, POWER (AEP)
0 110 1-830-190-11 CORD, POWER (HDZ235)
0 111 3-703-244-00 BUSHING (2104), CORD
112 2-677-839-01 +PWH 3X8 (SUMITITE)
113 A-1218-005-A POWER BOARD, COMPLETE (DZ230/DZ231)
113 A-1228-785-A POWER BOARD, COMPLETE (HDZ235)
0 F901 1-533-311-12 FUSE,GLASS CYLINDRICAL (DIA.5) (8A/125V)
(HDZ235)
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V)(DZ230/DZ231)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-682-547-04 SCREW +B 3X6
#5 7-685-881-09 SCREW +BVTT 4X8 (S)

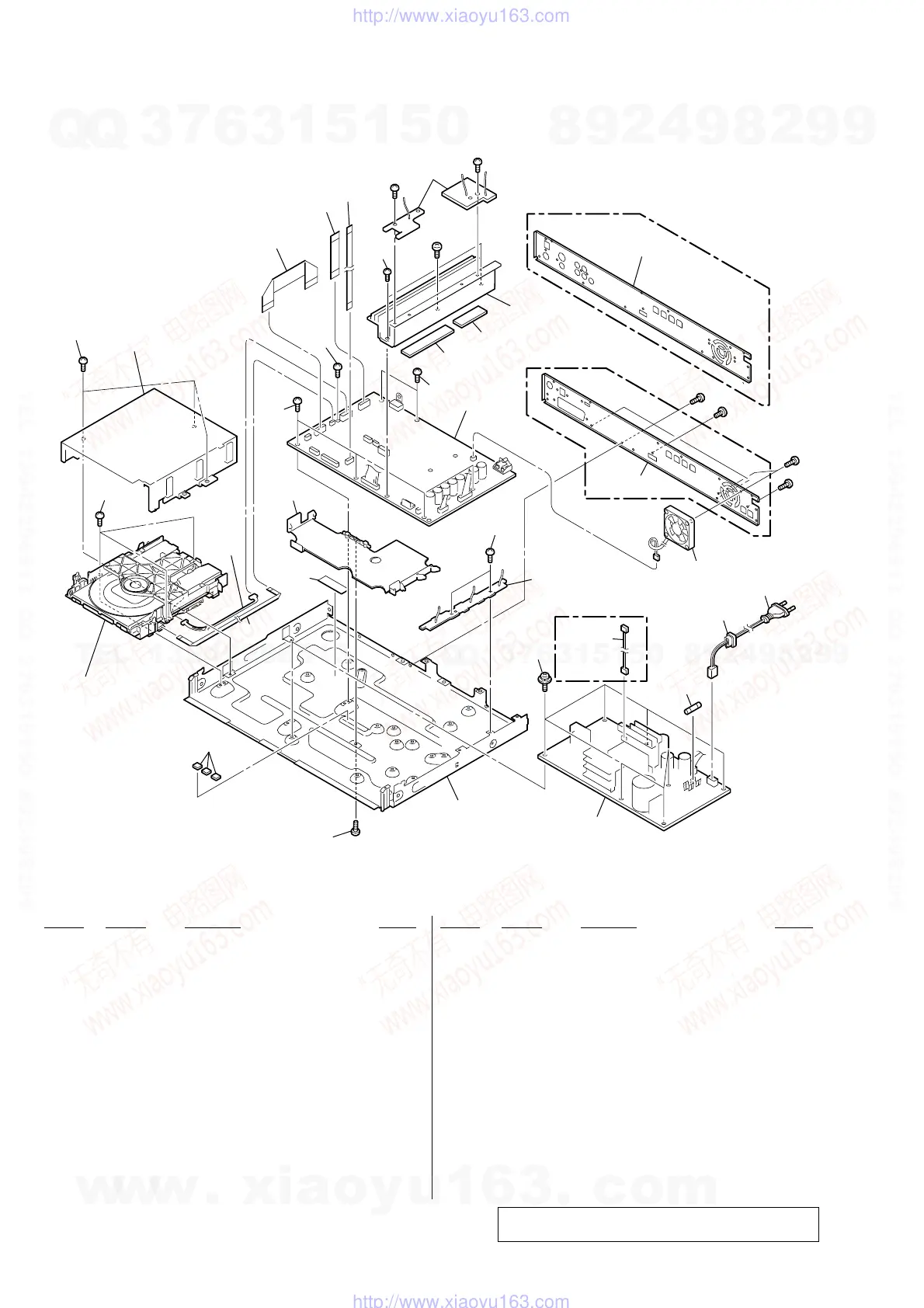

7-3. CHASSIS SECTION
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
not
supplied
F901
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
HCD-HDZ235
HCD-DZ230/DZ231
HCD-DZ230/DZ231
101
102
101
101
101
101
101
106
108
104
DVD mechanism
deck section
(CDM85-DVBU102)
107
101
112
111
109
102
105
103
#1
#3
#4
#5
#1
#1
#1
110
113
