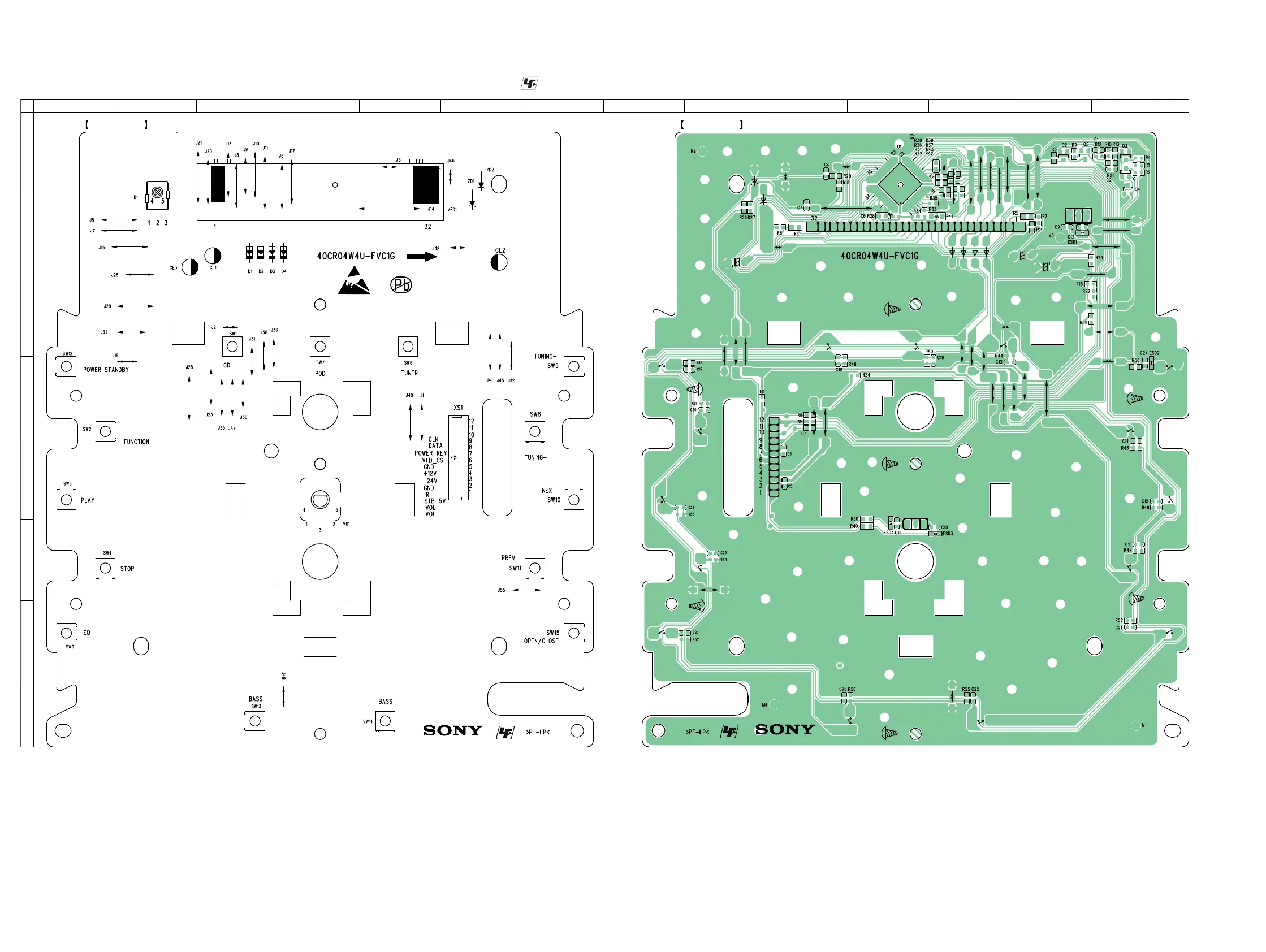

5-10. PRINTED WIRING BOARD - FRONT Board -
FRONT BOARD (COMPONENT SIDE) FRONT BOARD (CONDUCTOR SIDE)
A
B
C
D
E
F
G
H
1 2 3 4 5 6 7 8 9 10 11 12 13 14
• : Uses unleaded solder.
• See page 17 for Circuit Boards Location.
