5-12. PRINTED WIRING BOARD - POWER Board -

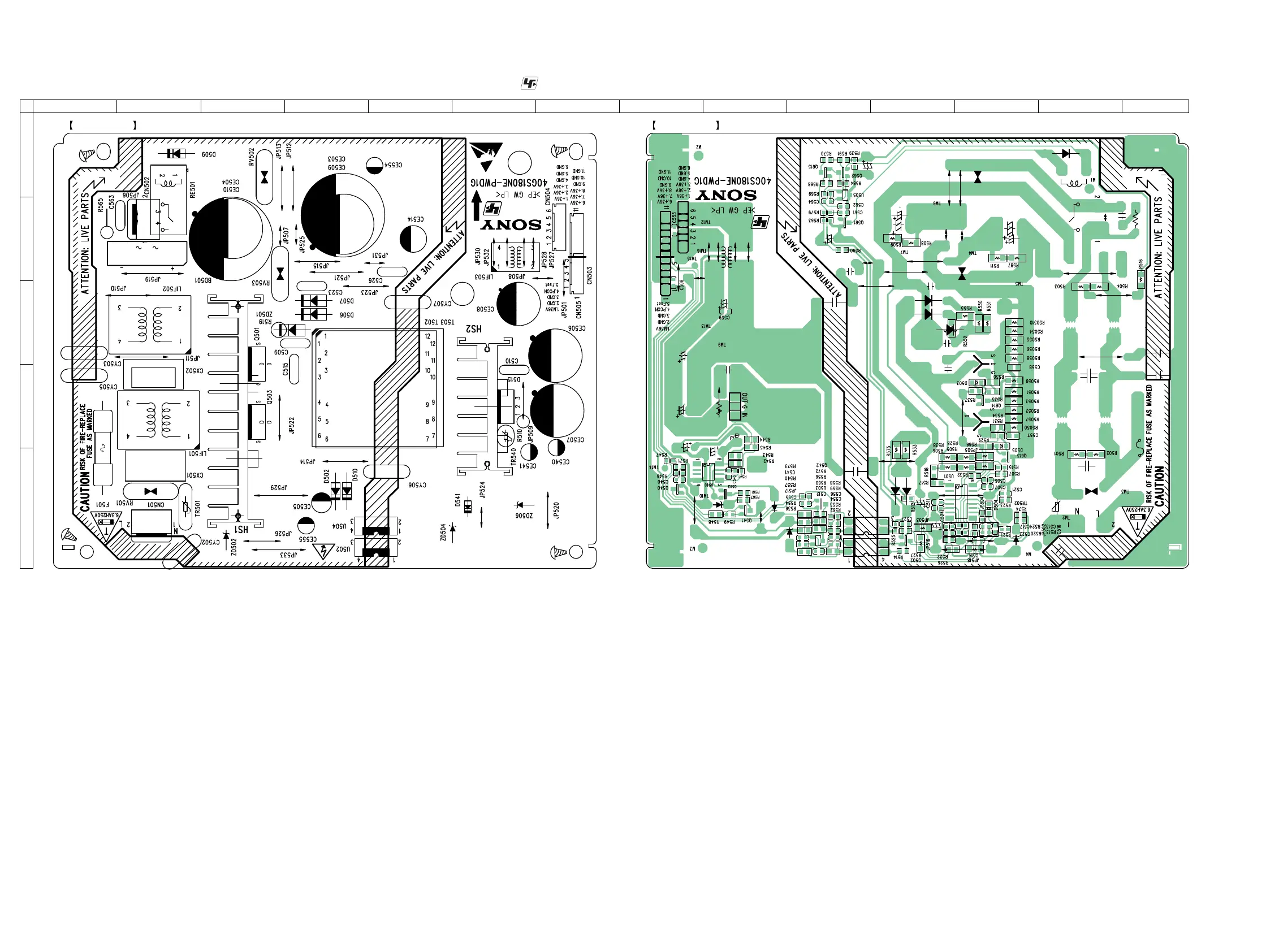

POWER BOARD (COMPONENT SIDE) POWER BOARD (CONDUCTOR SIDE)
A
B
C
D
E
1 2 3 4 5 6 7 8 9 10 11 12 13 14
• : Uses unleaded solder.
• See page 17 for Circuit Boards Location.
